2012 Brandt KDF 670

Brandt KDF 670

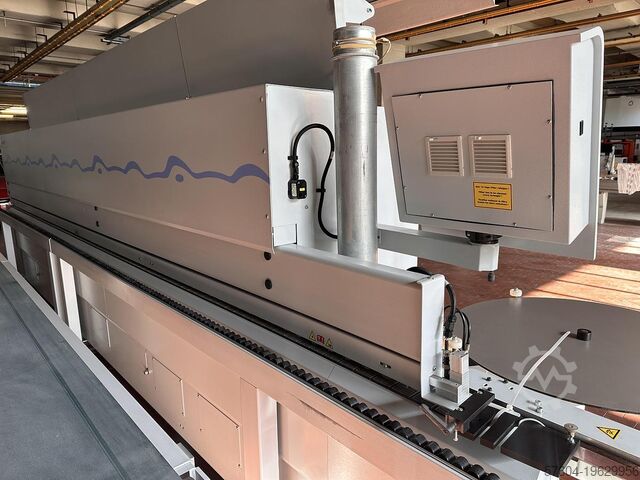

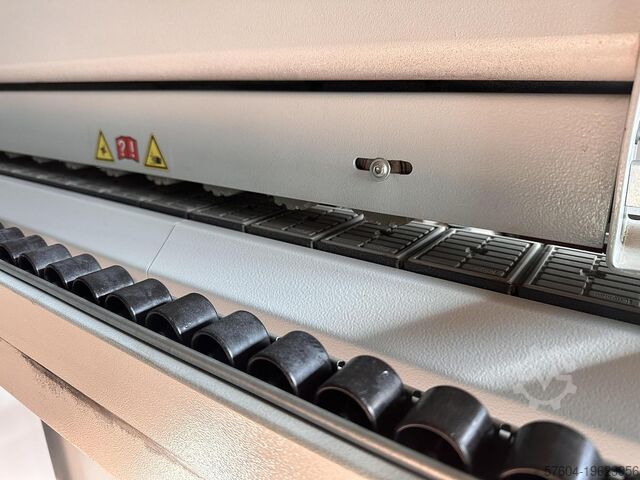

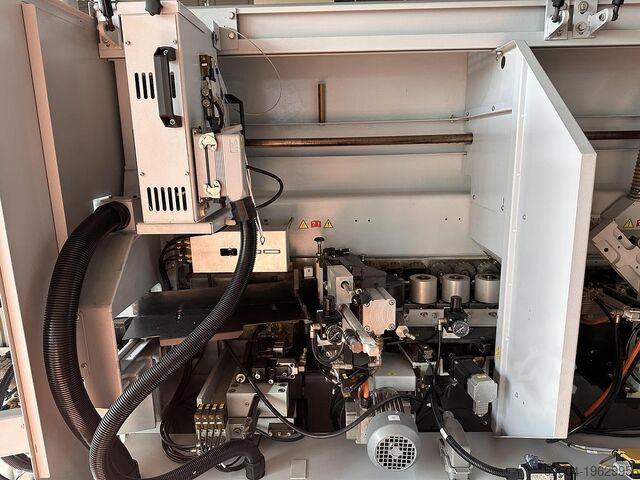

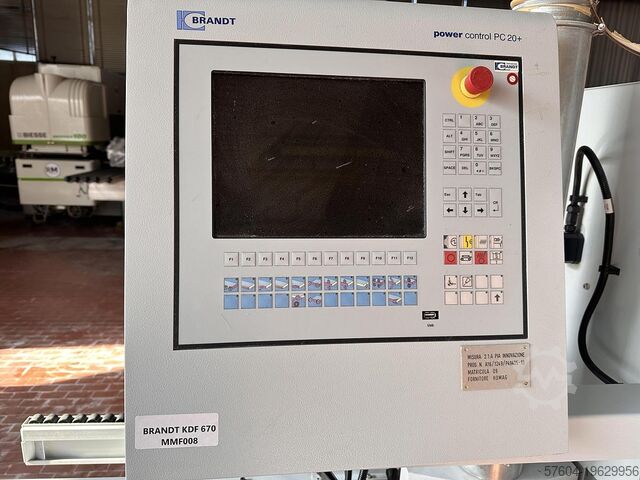

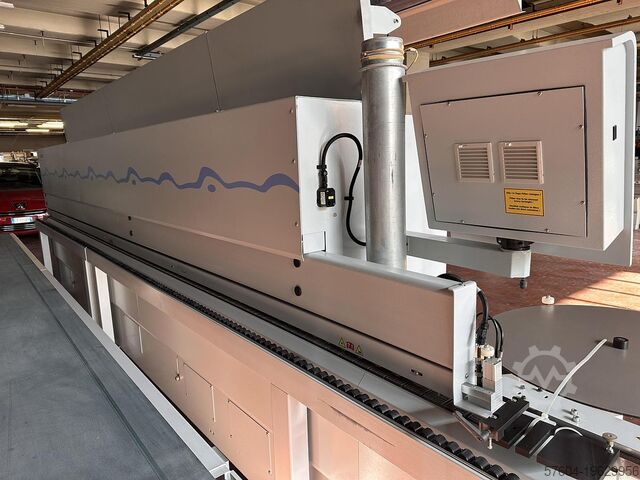

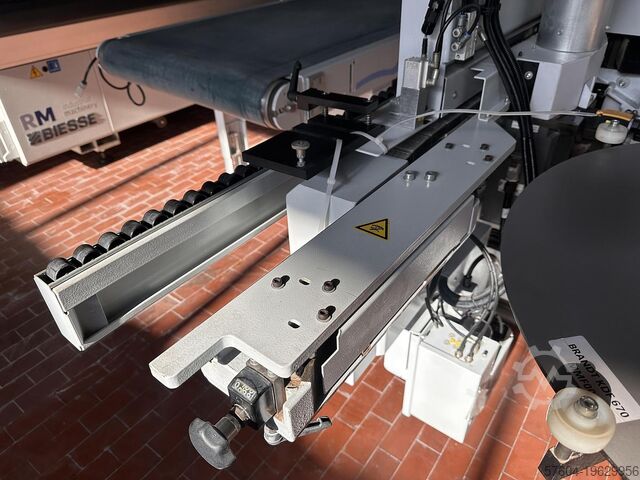

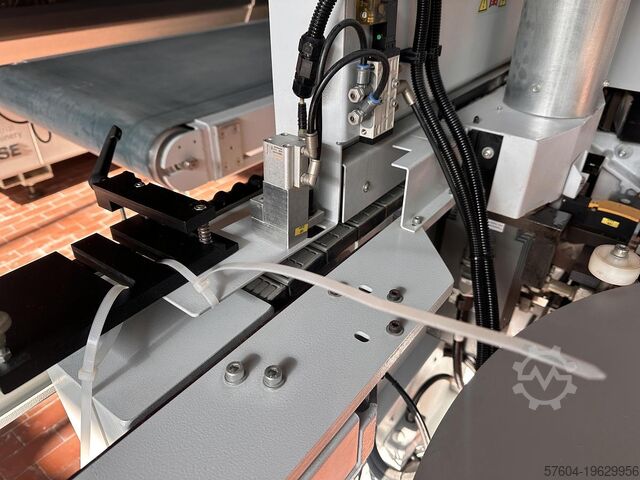

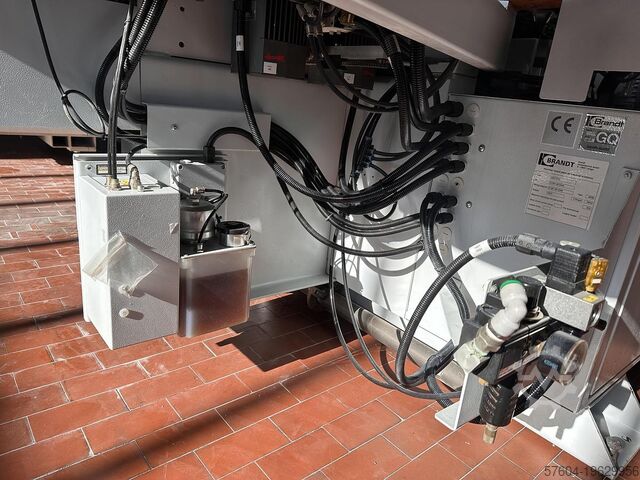

Condition: ready for operation (used), Year of construction: 2003, Brandt Edge Banding Machine Type: Profi KDF 670 Single-sided edge banding machine in right-hand configuration suitable for craftsmanship, for hot-melt adhesive application. Quick-change gluing module for processing PU glue granulate in compliance with adhesive processing regulations. Infrared hot-melt glue activation Automatic edge magazine for coil material for thick PVC/ABS Heavy-duty pressure zone Centrally adjustable top pressure Operating panel at machine infeed PC 16 electronic control Technical Data: Edge thickness: 0.4 - 8 mm Roll cut, max. 3 x 45 mm or 0.8 x 60 mm Workpiece thickness: 8 - 55 mm Feed rate: max. approx. 14 m/min Tool set R = 2 mm (exchangeable for R = 3 mm) Hfjdpfx Ahex Nrtnoueb Quickmelt gluing module Motor-driven height adjustment for top pressure - PC 16 Adjustable infeed fence Program-controlled adjustment for infeed fence Additional unit for laminate overhang Program-controlled pressure zone Release agent application for workpiece Jointing milling unit Jointing cutter set, Dia End trimming unit with chamfer/straight cut 0 - 15 degrees Pneumatic adjustment for end trimming unit, chamfer/straight Flush milling unit Pneumatic adjustment for milling unit Pneumatic two-point adjustment for vertical tracing rollers Jointing unit 0 - 25 degrees, synchronous flush milling Radius cutter set (exchangeable for chamfer cutter) Program adjustment for edge thickness Pneumatic adjustment for side tracing rollers Profile milling unit above and below - For profiling/flush trimming of end edges on post- and softforming parts and corner rounding of thick PVC edges. / Wood edges possible to a limited extent Scraper with quick-change heads Pneumatic adjustment for scraper Flat scraper glue joint Cleaning agent application for workpiece Buffing unit, 2 motors Electrical and mechanical preparation of the edge banding machine for integration of Ligmatech workpiece return conveyors ZHR01/ZHR02/ZHR15 Weight: 3000 kg Total connected load: 15 kW Length: 5880 mm Location: ex-site customer - Immediately available - System must be dismantled by the buyer

Condition: ready for operation (used), Year of construction: 2005, General Data Machine weight 2600 kg Measurements height 2300 mm Dimensions Machine Length 6060 mm This BRANDT OPTIMAT KDF 670 edgebander was manufactured in 2005. It features a comprehensive range of processing units including pre-milling, glue application, edge feeding and cutting, and polishing. Capable of handling workpiece thicknesses from 8 to 60 mm and edge bands up to 15 mm. Feed speed reaches up to 20 m/min, optimizing productivity. Consider the opportunity to buy this BRANDT OPTIMAT KDF 670 edgebander. Contact us for more information about this machine. Application Types Edge Banding Hfjdpfx Ahox E Eggoueb

Condition: defective spare-parts repository (used), Year of construction: 2007, functionality: limited functionality, Machine was fully working condition in 2021. Then dismantled and stored in warehouse. LEFT side Hedpfsxu H S Tjx Ahuofb
