Vertical turning machines conventional & CNC

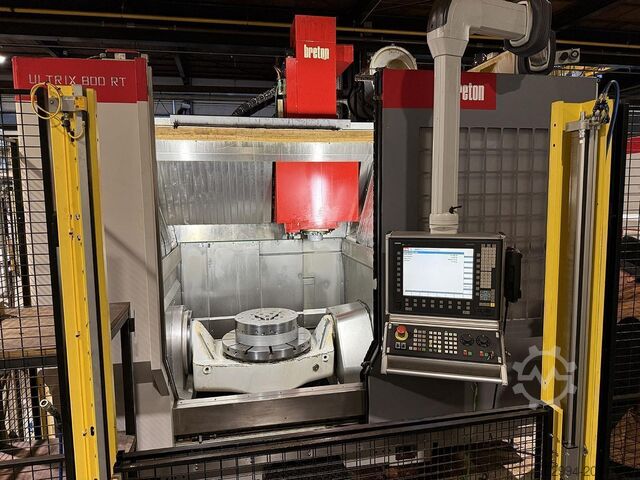

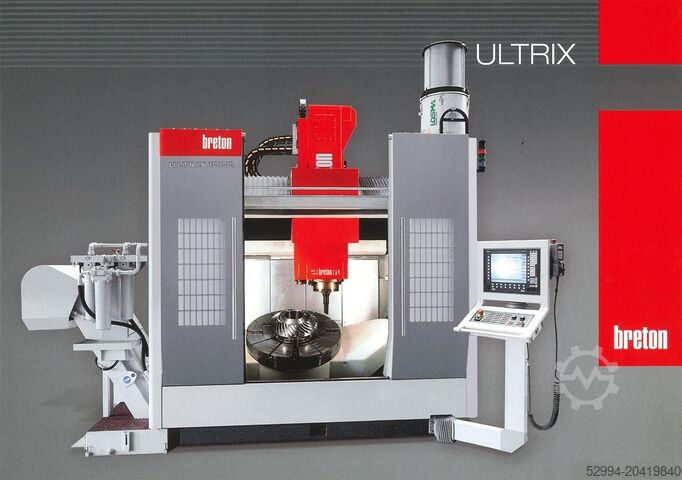

Breton Ultrix 800 X: 800 - Y: 900 - Z: 600 mm CNC

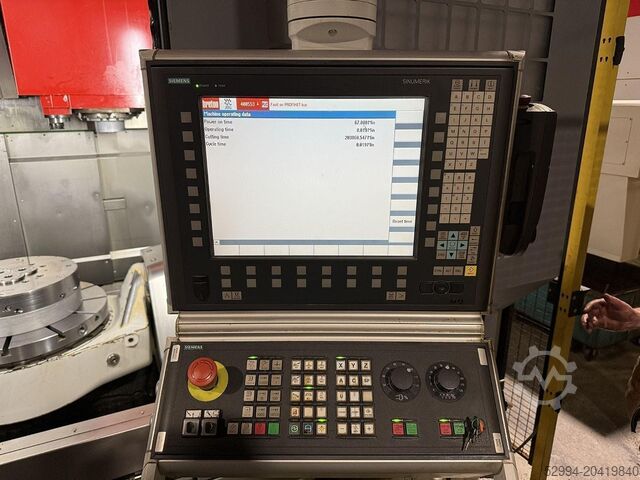

Condition: ready for operation (used), chuck outer diameter: 700 mm, total height: 3,415 mm, controller model: Siemens 840D Solution Line, empty load weight: 17,000 kg, Type: Ultrix 800 RT The Ultrix 800 RT is a multifunction machining center with 5 interpolated axes and a moving gantry for high-speed milling, turning, grinding, drilling, tapping, finishing, deburring, and roughing of complex parts. When used for turning vertical lathe: - swivel range: 1100 mm - maximum weight of the workpiece: 700 kg - 40/30 kW on the table - max. torque on the table: 1500 Nm - maximum speed of the table: 1000 rpm !! Bodpfxsxtgkao Abmoww - hydraulic clamping on table - tool taper for turning: KM63 - 150-position tool changer with 24 tool positions for turning When used for milling, grinding, drilling, ... machining center: - X-axis: 800 mm - Y-axis: 900 mm - Z-axis: 600 mm - A-axis: -30° / 110° - C-axis: continuous - maximum weight of the workpiece: 700 kg - 55/40 kW on spindle - max. torque on the spindle: 22 Nm - max 40,000 rpm - tool taper for milling: HSK-E40 - 150-position tool changer with 126 tool positions for milling, grinding, drilling List of options mounted on the machine: 1 - 40,000 rpm high-speed spindle 2 - table dia 700 mm with hydraulic clamping 3-150-position tool changer 4 - chip conveyor belt 5 - cooling system with recovery 6 - coolant temperature control 7 - high pressure cooling (40 to 70 bar) by spindle 8 - smoke extraction system 9 - chip collection box 10 - Presetting system and tool integrity: laser and mechanical probe for measuring tools 11 - Renishaw probe Max turningdia -- passage: 1100 mm Power on the spindle: 40/30 kW Long: 4655 mm Wide: 5890 mm Turret: yes Qty Tools: 150 positions Coolant pump: yes
