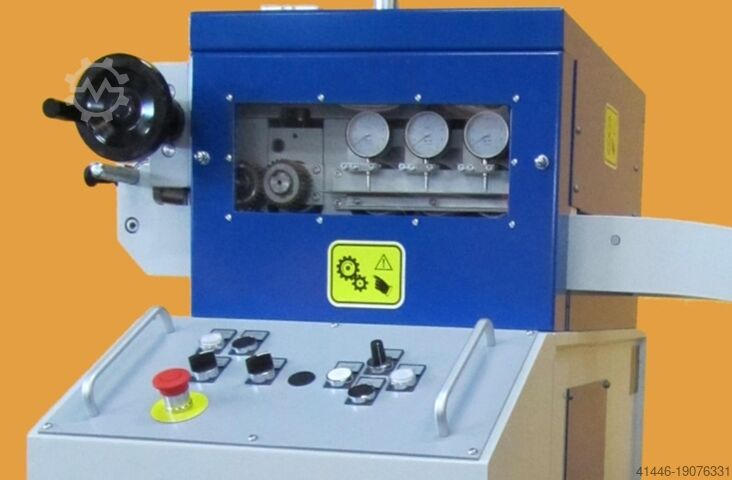

Belt straightenerBSA
Richtmaschine
Machine data
- Machine type:
- Belt straightener
- Manufacturer:
- BSA
- Model:
- Richtmaschine
- Machine number:
- Modell:R65-360-7-EM
- Year of construction:
- 2025
- Condition:
- new
- Functionality:
- fully functional
Price & Location
- Location:
- Postfach 3124, 58840 Plettenberg, DE
Technical details
- Number of straightening rollers:
- 7
- Conveyor belt width:
- 360 mm
- Straightening roller diameter:
- 65 mm
- Product height (max.):
- 4 mm
- Feed roller diameter:
- 65 mm
- Power:
- 0.002 kW (0.00 HP)
- Overall weight:
- 1,500 kg
- Operating speed:
- 20 mm/s
- Product width (max.):
- 360 mm
- Sheet thickness (max.):
- 4 mm
- Sheet thickness steel (max.):
- 4 mm
- Warranty duration:
- 12 months
- Equipment:
- documentation/manual
Details about the offer
- Listing ID:
- A190-76331
- Update:
- 05.05.2025
Description
• Strip width 30 - 360 mm
• Strip thickness from-to 0.6 - 4.0 mm
• Strip thickness throughput: max. 4.00 mm
• Max. straightening cross-section: 800 mm2 at R02=350 Nmm2 or 150 x 4 mm
• Straightening speed: 2 - 20 m/min
• Number of straightening rollers: 7
• Straightening roller diameter: 65 mm
• Number of draw rollers: 2
• Draw roller diameter: 65 mm
• Motor power: 2.2 kW/3x400V
RK machine body in a very stable and torsion-free welded construction
RZ straightening and draw rollers, made of high-quality steel, surface-hardened and finely ground
mounted in maintenance-free roller bearings
Fgedpewhginsfx Afpsh
AG drive, via spur gear motor with double chain drive
EM self Variable speed drive via frequency converter with WM position measuring system, belt loop control for self-regulating drive, with ultrasonic sensor and sensor in the belt loop
RZ straightening roller adjustment, individually manually adjustable and readable via dial gauges
RO discharge roller cage, fixed with a radius for 3 mm material thickness
PZ pneumatic tension roller adjustment, operated from the control panel
BSF-ze belt side guide, manually adjustable centrically and eccentrically by 25 mm
SS-2 interface to the press:
The listing was translated automatically. Translation errors are possible.
