Roll coating machineBuerkle
RCL 1300 & UV 1300
Machine data
- Machine type:
- Roll coating machine
- Manufacturer:
- Buerkle
- Model:
- RCL 1300 & UV 1300
- Year of construction:
- 2014
- Condition:
- excellent (used)
Price & Location
- Location:
- 8541 Schwanberg, Österreich
Details about the offer
- Listing ID:
- A165-02781
- Update:
- 10.06.2025
Description
BÜRKLE easy coater RCL 1300:
For one-sided application on flat surfaces from above
Operating side left
Touch screen control TP 177 Micro
Rubberized application roller
Hard chrome-plated metering roller can be sensitively adjusted via worm gearbox
Controlled belt transport with exposed counter roller for safe workpiece transport
Quick-change system with split bearing and cross-disc coupling for easy changing of the application roller
Oscillating squeegee, can be changed quickly for cleaning
Fgedpfx Aot Dx U Sjfpeh
Separate, infinitely variable FU direct drives for application roller, metering roller and transport
Reversible dosing roller
Motors and limit switches in Ex version on the machine
Non-Ex control cabinet and control panel outside the danger zone on the machine
Mobile version
Electrical preparation for integrating the roller coating machine into a coating line
Technical data
Working width: 1300 mm
Workpiece height 3 - 80 mm
Min. workpiece length 400 mm
Rubberized application roller DM 240 mm
Chrome-plated metering roller DM 172 mm
Transport speed 2 - 15 m/min variable
Connected load approx. 2.4 kW
Speed of metering roller 1.0 - 3.0 m/min
Working height 900 mm (+/- 20)
Safety equipment according to CE
Incl. switch cabinet
Weight approx. 1650 kg
UV system e.a.s.y. cure UV - TRUV with 2 lamps
One-sided curing of UV-curing lacquers on flat workpieces from above
Incl. control cabinet
Working width max 1300 mm
Workpiece height max 80 mm
Number of lamps 2 # - changed 10/2023
UV lamp power 120 W/cm² each
Speed 2 - 15 m/min variable
Transport: Transport carpet

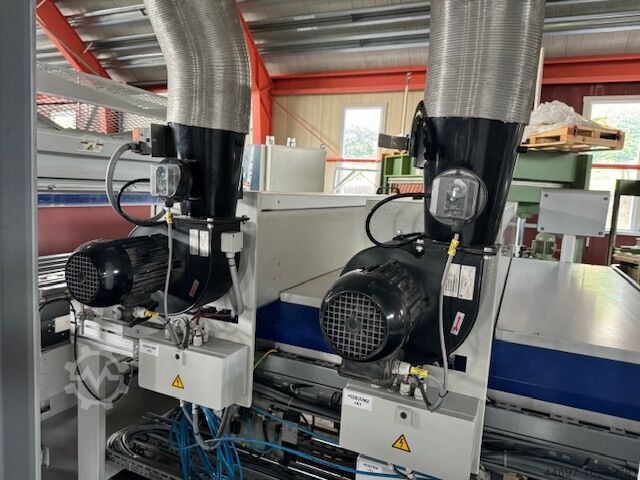

Exhaust air connection 2 x 250 mm
Connected load 39 kW
Weight approx. 750 kg

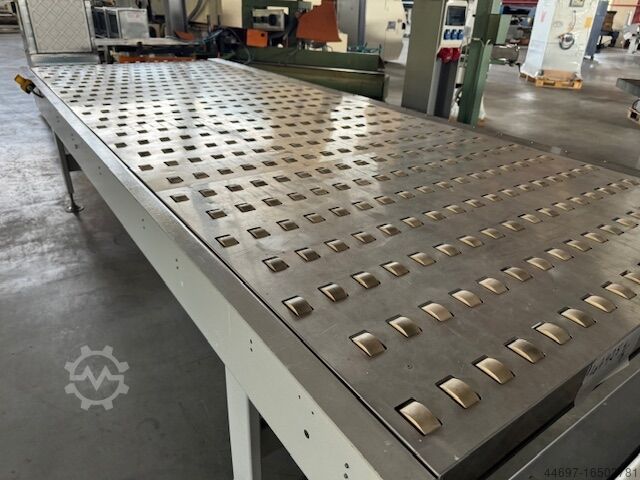

2 x roller conveyor RB 1300
Working width 1300 mm
length 4000 mm
Speed 2 - 15 m/min variable
Connected load 2 x 0.37 kW
Total system length 12450 mm
The listing was translated automatically. Translation errors are possible.
