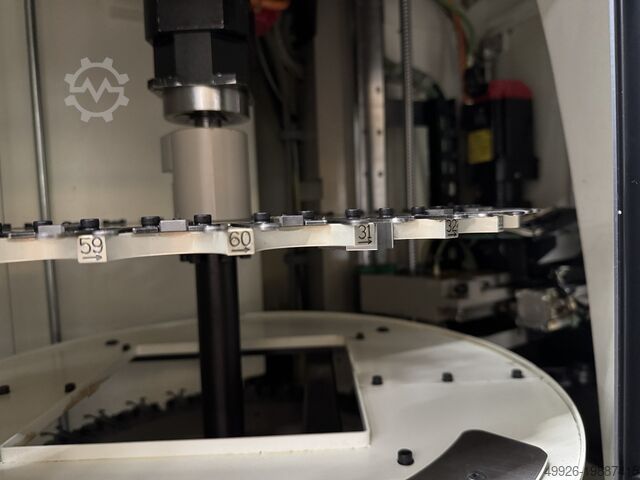

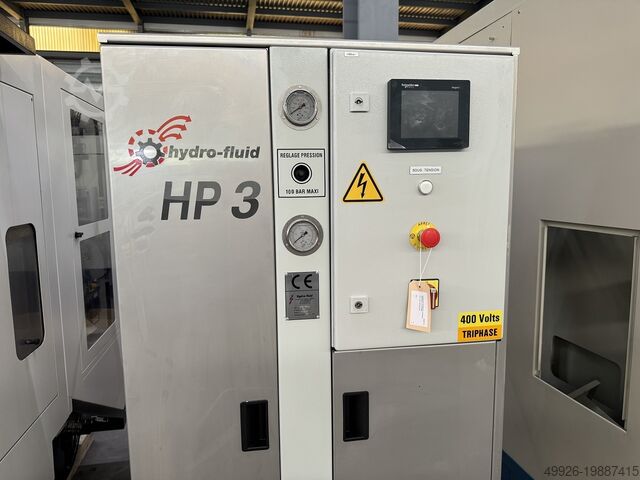

Turn-mill center

BUMOTEC S 191

Condition: excellent (used), Year of construction: 2014, operating hours: 39,000 h, functionality: fully functional, machine/vehicle number: 3325, Model S-191FTL-PRM Ø 50 mm Axis travel Milling vertical axis Z = 200 mm Milling transverse axis Y = 200 mm Milling longitudinal axis X = 410 mm Power / Thrust Z-Y 2.5 kW / 550 daN X 4.5 kW / > 550 daN X-Y-Z Traversing speed: 40 m/min Acceleration: 10 m/s² Resolution X-Y-Z: 0.0001 mm Measuring system: glass scale MAIN SPINDLE C (Horizontal turning axis) Power: 15 kW Torque / peak: 22 / 28 Nm Measuring system: direct Resolution: 0.0001° Accuracy: 0.001° Bar capacity: Ø 32 mm (option 50 mm) Turning spindle speed: 72,000°/min Clamping force, turning: 4,900 N at 6 bar B-AXIS SPINDLE INCLINATION (machining) Power: 4.3 kW Torque: 119 / 226 Nm Angular travel: -25° / +115° Measuring system: direct Resolution: 0.0001° Accuracy: 0.001° Rotational speed: 36,000°/min Locking torque: 200 Nm MACHINING SPINDLE Power: 8 kW Torque: S1 = 9.5 Nm / S6 = 11.5 Nm Max speed: 30,000 min-1 (option 40,000 min-1) Tool clamping force: 1,000 N Locking torque: mechanical locking with straight toothing Tool holder taper: HSK-40 (A or E) Through-spindle lubrication: 30 to 100 bar (optional) TOOL CHANGER Number of tools: 30 (option 60) Number of indexed tools: all Tool change time: 1.2 sec. Chip-to-chip time: 4.4 sec. Max tool diameter: Ø 40 mm (80 mm if adjacent station empty) Max tool length: 130 mm Max tool weight: 1.5 kg MISCELLANEOUS Installed power: 25 kVA Operating voltage: 3/N/PE/400V/230V 50 Hz Pneumatics: 6 bar (dry air) CNC CONTROL: Fanuc 31i Screen: 15'' color Keyboard: alphanumeric Control panel features: - 1 key switch for functions - 1 feedrate potentiometer 0–120% Dcsdpew T Sl Djfx Ad Neg - 1 spindle speed potentiometer 50–120% - 1 quick-selection button for machine functions - 1 integrated electronic handwheel CNC Options - Data server with ATA Flash, 1GB memory capacity - J947 1 MB RAM memory - S677 TCPC (tool center point control for 5-axis machining) - S808 Al nano HPCC (Al high precision contour control II) - J930 tool tip radius compensation - J893 coordinate system rotation - J819 Helix (cylindrical) interpolation - J953 memory capacity for 1,000 programs - J828 tapping without compensation chuck - S615 insertion of radii and chamfers - J894 workpiece coordinate system - S993 part setup error - R522 inclined machining plane control with guidance Interfaces - Bumotec-specific programming to minimize collisions - Simplified tool management to prevent input errors - Tool management by threshold value, change according to part count or tool life - Automatic tool setting on machine for easier tool handling - Part counter and production management Y-AXIS (horizontal cross milling axis) Travel: 200 mm Power / thrust: 4.8 kW / 240 daN Resolution: 0.0001 mm Max travel, V1: 50 m/min Max travel, V2: 20 m/min Measuring system: glass scale Z-AXIS (horizontal longitudinal milling axis) Travel: 400 mm Resolution: 0.0001 mm Max travel, V1: 50 m/min Max travel, V2: 20 m/min Measuring system: glass scale Includes 8kW cooling unit Emergency braking system integrated Subject to errors and omissions, technical specifications are provided without obligation.

Condition: used, TECHNICAL DETAILS - Number of axes : 7 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 20 [mm] - Max. machining length : 205 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 8000 [rpm] - Spindle power : 2.2 [kW] - C axis indexing precision : 1 [°] - Number of guide bush holders : 1 GUIDE BUSH HOLDER 1 - Number of positions : 10 - Number of motorized positions : 4 END ATTACHMENT - Number of positions : 7 SECONDARY OPERATION - Number of positions : 4 - Number of motorized positions : 4 - Live tools speed : 8000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 7 [kW] WEIGHT & DIMENSIONS - Machine floor space : 2200 x 1200 [mm] - Machine height : 1700 [mm] - Machine weight : 2200 [kg] MACHINE HOURS - Number of hours under power : 34143 [h] - Number of working hours : 26657 [h] - Number of spindle hours : 15552 [h] EQUIPMENT - CNC : Fanuc 30i-model A - HFT (High Frequency Turning) - Rotating guide bush - Parts catcher - Parts conveying strip - Ejection of workpiece Dedpfxsxlum Te Ad Njcg - Coolant tank - Bar loader : FMB turbo 3-26 / 3200 A

Condition: used, Year of construction: 2017, Technical details: grinding diameter: 280/320 mm grinding length: 750 mm Dcsdpfx Adjttxg So Neg centre height: 170 mm weight of the machine ca.: 22,5 t dimensions of the machine ca.: 4,7 x 3,65 x 3,0 m

Condition: used, Year of construction: 2001, table length 600 mm table width 380 mm Dsdpfx Aewmwwyed Necg control FANUC 16i-M longitudinal travel 500 mm cross travel 300 mm largest grinding diameter 230 mm Jig grinding machine | HAUSER - S35-400 The machine is in a well-maintained condition. Please note that the technical details were added from comparable machines. The machine video from the production plant will be shared on request. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: S35400 | S35 400 | S35CNC400 | S35 | S-35 | S 35

Condition: used, TECHNICAL DETAILS - Number of axes : 5 - Distance between tips : 400 [mm] - Effective diameter : 180 [mm] LINEAR AXES - X1 and X2 x Z travel : 220 [mm] - Z travel : 850 [mm] - X x Z resolution : 0.0001 [mm] TURRET : - Number of fixed positions : 12 - Tool holders : VDI30 WHEEL CARRIER - Right-hand external grinding : * Grinding wheel dimensions (Ø x width x bore) : 400 x 50 x 127 [mm] * Drive power : 6.8 [kW] WORKPIECE CARRIER - Max. speed : 7500 [rpm] - Speeds (synchronous operation) : 1 - 5000 [rpm] - Taper type : CM4 - Drive power : 10.5 [kW] - C axis : 0.001 [°] SYNCHRONIZED COUNTER SPINDLE - Max. speed : 7500 [rpm] - Rotational speeds (synchronous operation) : 1 - 5000 [rpm] - C axis : 0.001 [°] - Inner cone : MK4 - Micrometric adjustment : +/- 40 [microns] - Drive power : 10.5 [kW] POWER SUPPLY - Power rating : 45 [KVA] DIMENSIONS - Floor dimensions : 2800 x 3960 [mm] Dcedpfx Adjvxw A Ue Nsg - Machine weight : 7600 [kg] MACHINE HOURS - Powered hours : 57000 [h] EQUIPMENT - NC FANUC 310i-modelA - Software Studer WIN - RS232 / USB interface - Remote electronic handwheel - Turret with Renishaw LP2 length self-calibration device - Marposs feelers for diameters (multirange) + Z4 axes for positioning - Semi-automatic wheel balancing MPM.3 BMT100 M.24 - 480 L coolant tank * with paper filter * with magnetic filter - Chip conveyor - Fog extraction - Cooling unit for grinding wheel motor cooling - Electronic contact detection Dittel AE6000 - Fixed dressing device on workhead - Electrical cabinet air conditioning - Balancing shaft - Interface for automatic loading system

Condition: used, Year of construction: 2012, machine/vehicle number: MB0001-000031, travel distance X-axis: 2,000 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 1,200 mm, rapid traverse X-axis: 12 m/min, rapid traverse Y-axis: 12 m/min, rapid traverse Z-axis: 12 m/min, feed length Y-axis: 6 mm, feed rate X-axis: 6 m/min, feed rate Y-axis: 6 m/min, feed rate Z-axis: 6 m/min, controller manufacturer: FANUC, controller model: 32i Model A, workpiece diameter (max.): 2,550 mm, workpiece weight (max.): 7,000 kg, total height: 4,200 mm, total length: 5,540 mm, total width: 5,930 mm, table width: 1,400 mm, table length: 1,600 mm, overall weight: 29,000 kg, spindle speed (max.): 3,000 rpm, distance table center to spindle nose: 1,750 mm, spindle motor power: 26 W, spindle nose: BT50, number of slots in tool magazine: 60, tool length: 600 mm, tool diameter: 250 mm, tool weight: 30 g, B Axis: 1 degree Control: FANUC 32i-Model A Distance from Spindle Nose to Table Top: 0 - 1500mm Dedpfx Adoxm Sxve Nocg Distance from Spindle Nose to Table Centre: 550 - 1750mm Machine Dimensions: 5540 x 5930 x 4200mm Machine Weight: 29000kg Maximum Cutting Feedrate: 6m/minute Maximum Tool Diameter: 250mm Maximum Tool Length: 600mm Maximum Tool Weight: 30kg Maximum workpiece weight: 7000kg Rapid Feedrates: WXYZ: 6 x 12 x 12 x 12m/minute Spindle Diameter: 110mm Spindle Motor Power: 26/22kW Spindle Speed: 3000rpm Swing: 2550mm Table Size: 1400 x 1600mm Tool Change Capacity: 60 Station Tool Size: BT50 Traverses XYZ: 2000 x 1500 x 1200mm W Axis: 500mm Coolant, Low Volt Light, Swarf Conveyor, Long Reach Right Angled Milling Head, Tool Length Measurement Probe, Renishaw Work Probe, Fully Enclosed machine guards.

Condition: excellent (used), Year of construction: 2014, operating hours: 31,000 h, functionality: fully functional, CNC-swiss type automatic lathe brand: STAR type: SV-38R new in: 2014 equipped with: FANUC 31i control, turret with B, Y, X, and Z axis, driven tools, 2x C-axis, Y2 axis, subspindle, high pressure pump, oil mist, backworking, chip conveyor, parts conveyor, fire extinguishing system, useable for short and long parts Dsdpfjytq Ahex Ad Necg automatic bar loader FMB TURBO 5-55

Condition: used, Year of construction: 2000, grinding diameter 450 mm grinding length 1000 mm centre height 225 mm Photo of machine already delivered in similar scope: -major maintenance -New table geometry -partial painting of the interior grinding wheel equipment LEFT 400x63x127mm (standard) grinding wheel equipment RIGHT 300x40x127mm Internal grinding unit Ø120mm for HF spindles CNC control KELCO 120 C-axis for non-circular grinding. Kel-Poly B-AXIS: CNC-controlled B-axis KELCO 120: v constant 35m/s or 45m/s High-frequency internal grinding spindle Operating unit for MFV and MFZ spindles Hydraulic quill retraction for the tailstock NO micro-adjustment on the tailstock Spring-loaded quill insert Top table cooling Standard workpiece headstock MK 5 DIN 55026 size 5" Micro-adjustment for the standard workhead Dressing device on the lower table Active longitudinal positioning KELPOS, MARPOSS, mounted on the grinding head Dodexzk Nispfx Ad Nocg Tool measuring system KELSET, MARPOSS MARPOSS gate sensor Measuring control MARPOSS Minialsar prepared Paper belt filter

Condition: used, TECHNICAL DETAILS - Number of axes : 10 - Number of spindles : 2 MAIN SPINDLE - Spindle power : 24 [kW] - Spindle speeds : 5000 [rpm] - Max. bar diameter : 65 [mm] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Spindle power : 24 [kW] - Spindle speeds : 5000 [rpm] - Max. bar diameter : 65 [mm] - C axis indexing precision : 0.001 [°] - Travel : 390 / 600 [mm] TURNING-MILLING SPINDLE - X stroke : 350 [mm] - Y stroke : ± 80 [mm] - B Axis stroke : 270 [°] - B axis indexing precision : 0.001 [°] - Tool type : HSK-T40 - Spindle speeds : 18000 [rpm] - Spindle power : 11 [kW] - Fixed tools on milling electrospindle : 6 x VDI25 LOWER TURNING-MILLING SPINDLE - Y stroke : ± 80 [mm] - B Axis stroke : 270 [°] - B axis indexing precision : 0.001 [°] - Tool type : HSK-T40 - Spindle speeds : 18000 [rpm] - Spindle power : 11 [kW] - Fixed tools on milling electrospindle : 6 x VDI25 TOOL CHANGER - Auto. Tool Changer type : Bras chargeur - Tool magazine capacity : 80 - Tool exchange time : 4.5 [sec] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 68 [kW] WEIGHT & DIMENSIONS - Machine height : 2500 [mm] - Machine weight : 11000 [kg] MACHINE HOURS - Spindle hours : 19781 [h] Dsdpfjv Ig Avsx Ad Nscg - Number of turning-milling spindle hours : 9713 [h] EQUIPMENT - CNC : Siemens Sinumerik 840D SL - Coolant tank * with high-pressure pump * with paper filtering unit * Coolant through spindle - Chips conveyor - Spindle cooling unit - Parts catcher

Condition: used, O F F E R We can offer you ex stock, subject to prior sale and errors: TSCHUDIN (CH) Centerless cylindrical grinding machine Model TC-300 Year of manufacture 2001 Grinding range – Ø 0.5 – 25 mm (30) Max. workpiece length for plunge grinding 125 mm (140) Max. workpiece length for through-feed grinding 300 mm Grinding wheel dimensions: Ø x width Ø 300 x 125 mm (140) Regulating wheel dimensions: Ø x width Ø 225 x 125 mm (140) Grinding wheel peripheral speed 35 m/sec Grinding wheel infeed 3 mm Regulating wheel speeds, steplessly adjustable 0 – 444 rpm Regulating wheel inclination Degrees Grinding wheel drive approx. 7.5 kW Total connected load approx. 13 kW – 380 V – 50 Hz Weight 2,500 kg Accessories / Special equipment: • The machine operates with a fixed workpiece position, allowing both the grinding spindle and the regulating spindle units to be adjustable. This simplifies machine setup as well as automatic workpiece loading and unloading. • SIEMENS PLC control for automatic operation with SIEMENS touchscreen. Complete electrics and PLC control renewed in 2016! • Electromechanical profile dressing device for the regulating wheel • Regulating and grinding wheel speeds are steplessly adjustable. • Adjustable plunge guide bridge with mounted plunge workpiece rest • Electromechanically controlled workpiece pusher & automatic pneumatic workpiece ejector • Additional outfeed cylinder for automatic tilting of workpieces after plunge grinding (adjustable 4–30 mm) • Machine is prepared for use with a HELP-TEC bar loader MSHL08/400P, which is currently not present. • Complete enclosure of working area with monitoring technology Dedpfx Aowftt Ujd Njcg • Separate control cabinet, operating and electrical manuals for the retrofit Condition: Very good! Fitted with new electronics in 2016! Click here for a video of the machine: Delivery: ex stock, immediately available, FCA Metzingen Payment: strictly net – after receipt of invoice Always a large selection of grinding machines in stock – please inquire for your requirements!
