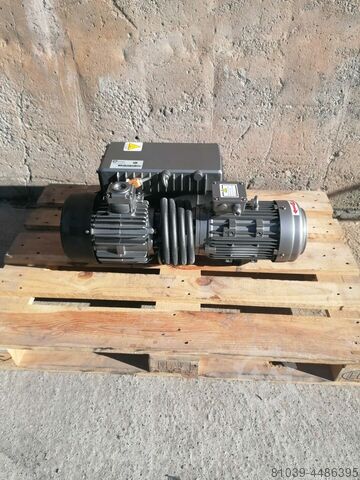

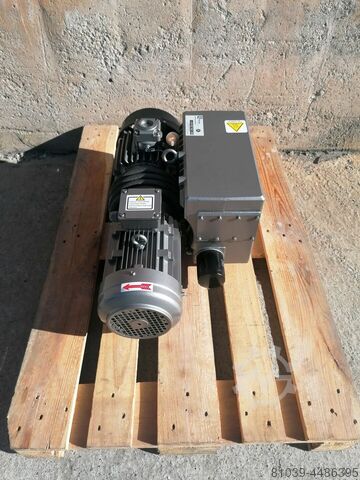

Rotary Vane Vacuum Pump

Busch _ Marpa Vacuum R5/RA/RC 0063 E/F

Condition: new, ➡️ BUSCH R5 VACUUM PUMP ➡️ RA 0040 F 503 ➡️ NEW ➡️ Core Specifications - Technology: Rotary vane principle (oil-lubricated) - Rated pumping speed: * 50 Hz: 40 m³/h / 60 Hz: 48 m³/h - Ultimate pressure: 0.1 hPa (mbar) - Motor power: 1.1 kW to 1.4 kW (depending on mains frequency and motor type) - Voltage: Typically 3-phase (e.g. 400V at 50Hz) Physical Details - Weight: approx. 42 – 45 kg - Dimensions (L × W × H): approx. 625 x 284 x 263 mm - Connections: G 1¼" (gas inlet and outlet) - Oil capacity: 1.0 litre (standard oil: Busch VM 100) - Sound pressure level: 63 – 66 dB(A) (relatively quiet for industrial use) Special Features of the "F" Model (RA 0040 F) The F series is distinguished by an optimized design: Bsdpowdkl Eefx Afpswk - High-performance vanes: Usually made of fiber-reinforced epoxy resin for long service life. - Maintenance-friendly: Oil changes and replacement of the exhaust filter element possible without special tools. - Cooling system: Air cooling via integrated motor fan. - Safety features: A non-return valve on the intake flange prevents backflow of oil into the process during standstill. Fields of Application This model is a true workhorse and is commonly used in: - Vacuum packaging machines (chamber machines) - Central vacuum systems - Pneumatic conveying systems - Degassing processes
