Press Brakes

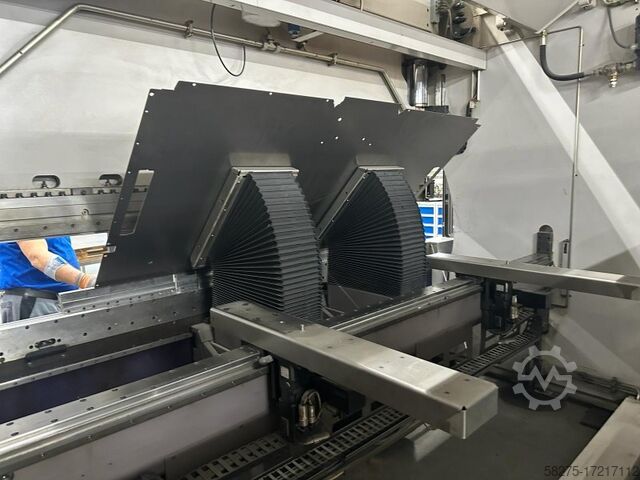

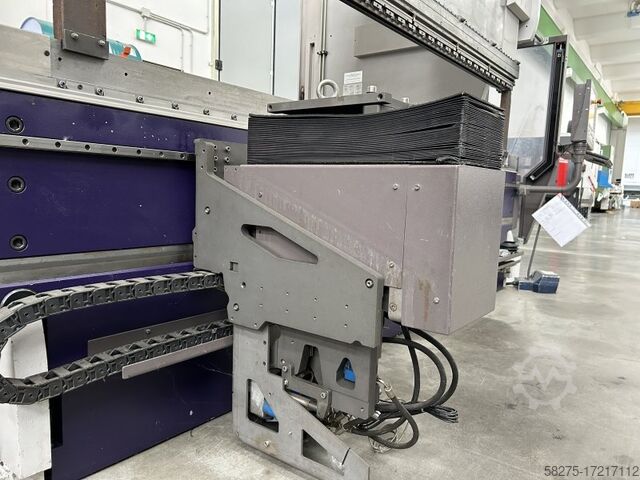

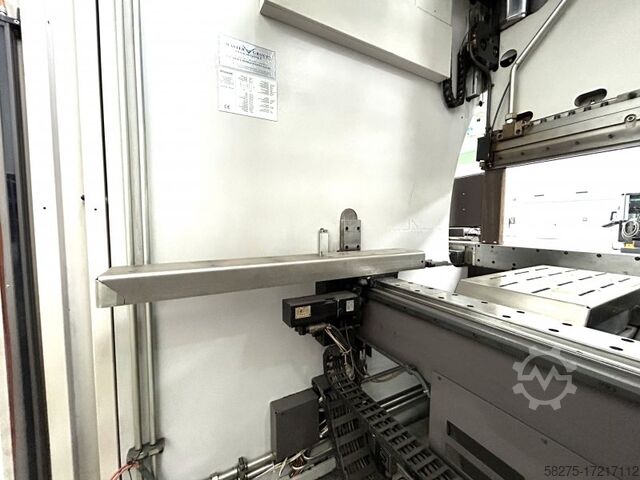

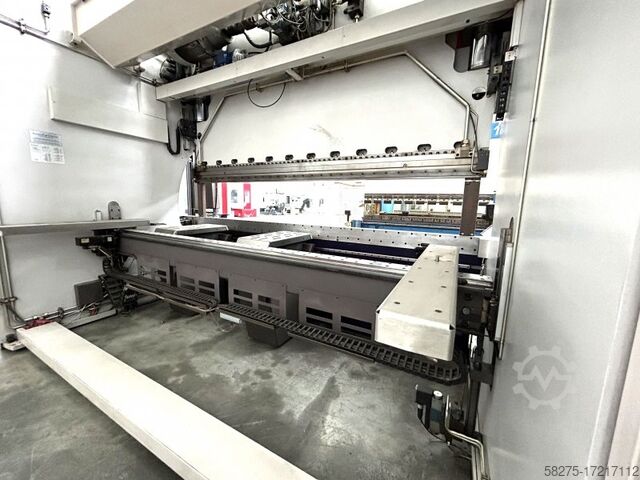

BYSTRONIC P130/310

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2009, operating hours: 38,732 h, working width: 3,100 mm, travel distance X-axis: 600 mm, back gauge speed R-axis: 200 mm/s, back gauge travel distance R-axis: 250 mm, pressing force: 130 t, TECHNICAL DETAILS Control: MMC ByBend Working area Bending length: 3100 mm Column clearance: 3200 mm Pressing force: 130 t Working height: 1060 mm Thrust: 250 mm Stroke: 400 mm Installation height: 915 mm Axes & travel paths Controlled axes: Y1 - Y2 - X1 - X2 - R1 - R2 - Z1 - Z2 X-axis travel path: 600 mm X-axis travel speed: 500 mm/s R-axis travel path: 250 mm R-axis travel speed: 200 mm/s Y-retraction: 150 mm/s Y-working speed: max. 1-10 mm/s Y-rapid traverse: 150 mm/s Back stop: 1200 mm MACHINE DETAILS Machine dimensions (LxWxH): 4440 x 2950 x 3100 mm Machine weight: approx. 13,400 kg EQUIPMENT Gbjdsv E Iu Uspfx Aa Ijg - Tool holder with hydro cushion (top) and 3-point die holder (bottom) with hydraulic tool clamp - Sliding table for flattening operations - BWS-T protective devices as access protection at the rear (Sick safety curtain) & BWS at the front - Bending aid at the rear (0-75°) with brush inserts, H, A, W axes continuously programmable - Pair of stop fingers (complex) - Side stop for dies - Table extension (station) left for supports - Additional plates for dies V=60 and larger - Additional foot switch for second operator or station - Articulated arm for control Extensive tool package included in delivery

Year of construction: 2004, condition: excellent (used), Belt Monorail Shot BBlaster Brand: Rösler Drum ø: 400mm Pieces length max.: 700/1000mm Pieces max. kg: 12 kg Loadingcapazity: 100kg Gsdpfen E Tubex Aa Isbg Wheels: 4 Pieces á 7,5 kW Total Power : 45kW Garantie: 6 monatige Funktions- und Gewährleistungsgarantie bei Inbetriebnahme durch DECK Sarl. Ersatzteilversorgung für die nächsten 10 Jahre OPTIONAL: Lieferung in Ihr Werk Richtmeistermontage / Inbetriebnahme / Schulung

Condition: excellent (used), Year of construction: 2016, Blockmold body, tightly welded, annealed, machined, and pressure- tested, executed according to European Standards and P.E.D. - 97/23/EC heat-resistant steel for steam pressure boilers Maintenance platform with ascent aid and fall protection. Block dimensions: • Height: 4,100 mm • Depth (usable depth): 1,300 mm • Width: 1,040 mm • Block gross volume: 5.5 m³ Cycle times: • 12-16 g/l density - 20-22 blocks/hour • 17-19 g/l density - 18-20 blocks/hour • 20-23 g/l density - 16-18 blocks/hour • 24-28 g/l density - 14-15 blocks/hour • 29-35 g/l density - 12-14 blocks/hour Filling system: • Filling silo volume - 1 x 10 m³ • High-pressure suction blower - 11 kW • Number of filling pistols - 2 pcs. • Filling diameter - 300 mm • Drive - hydraulic Mechanics: • Hydraulic system - 15 kW • Demolding - hydraulic • Door movement - hydraulic Godpspwbmbjfx Aa Iobg Electrical equipment: • Servo inverters: Mitsubishi • Frequency inverters: Mitsubishi • PLC: Siemens Simatic • HMI panels: Siemens Simatic • PC: Axiomtek

Year of construction: 2003, condition: good (used), Strokes 560x 410 x 510 mm, table 900 x 410, magazine 30 tools, spindle 12.000 rpm, chip conveyor Gbjdpfx Ajiwkhkea Iog

Condition: used, TECHNICAL DETAILS - Number of axes : 5 MILLING SPINDLE - Tool holder type : HSK63 - Spindle power : 17.5 [kW] - Spindle speeds : 18.000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 915 / 500 / 500 [mm] - Rapid traverses rates (X/Y/Z) : 30 / 30 / 20 [m/min] TOOL CHANGER - Tool magazine capacity : 28 TABLE - Table dimensions : Ø 630 [mm] - Maximum weight upon table : 500 [kg] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 26 [kVA] WEIGHT & DIMENSIONS Gedpfx Aasup Hwxj Iebg - Machine floor space : 3620 x 3160 [mm] - Machine height : 3000 [mm] - Machine weight : 7300 [kg] MACHINE HOURS - Number of working hours : 50223 [h] EQUIPMENT - CNC : Heidenhain iTNC 530 - Coolant tank - Chips conveyor - Oil mist extractor : ELBARON - Cooling unit : HYDRAC COOLING FLKS 170S/2.3W/TP/400-50/1/14 - Workpiece probe : Renishaw - Tool breakage detection : BLUM

Condition: excellent (used), For sale: a package of power generators: -ERCOLE MARELLI 1312T 12 cylinders, twin-turbo Power: 270 kVA; 216 kW -VM V12130I 12 cylinders, twin-turbo Power: 250kVA; 200kW Gedpfxevq Ighs Aa Isbg -VM V6130 6 cylinders Power: 100kVA Option to purchase individual units. Tag: generator, power generator, electricity generator, portable generator, diesel generator, gas generator, backup power, emergency power, standby generator, inverter generator

Condition: used, Used syrup room with pasteurizer Alfa Laval This second hand Syrup Room is a complete processing section designed for the preparation of concentrated base syrups and finished syrups for beverage production. Engineered for integration upstream of a premix and an isobaric filler, it supports efficient industrial packaging workflows in a used bottling line. It is ideal for beverage production environments that require reliable sugar dissolving, thermal treatment, and hygienic storage prior to mixing, carbonation, and filling. The system covers the full syrup preparation sequence: simple syrup creation from treated water and sugar, finished syrup blending with concentrates, acids, colors, and flavors, and hygienic storage in stainless steel tanks. A dedicated pasteurizer helps ensure product stability, while mixers and pumps support consistent, repeatable processing. This Syrup Room is well suited for soft drink formulations such as cola, tonic, and other flavored carbonated beverages, and it integrates seamlessly with premix units that add CO2 just before the filling machine. The plant layout and component selection make it a practical solution for upgrading or expanding a used bottling line in the beverage production sector. Technical Specifications & Performance Data Sugar dissolver: AICMA Pasteurizer: Alfa Laval Storage tanks (finished/simple syrup): 4 x 4,000 L Cavalzani Gbjdpfx Ajxywg Sea Ieg Storage tanks (finished/simple syrup): 3 x 2,000 L Bertuzzi Mixers and pumps: Included for circulation, transfer, and blending Process materials: Treated water, sugar/sweeteners, fruit concentrates, flavors, additives Construction: Stainless steel AISI 304/316 process equipment Cleaning: CIP-ready design for sanitary cleaning in place Advanced Automation & Control Systems The Syrup Room features a centralized control panel with analog/digital selectors for process management, enabling operators to supervise dissolving, thermal treatment, storage, and transfer operations. Dosing can be achieved using precision pumping and flow control to maintain recipe accuracy. Hygienic design, sanitary valves, and instrument connections support repeatability and quality. The configuration is suitable for integration with plant-level automation and recipe control, with clear operator interfaces that simplify changeovers and routine adjustments while supporting safe and reliable operation. Production Line Integration Capabilities This processing plant is designed to feed finished syrup to a premix unit, where it is blended with treated water and CO2 immediately before the isobaric filler. It can be integrated inline with existing beverage production and industrial packaging equipment and is compatible with used bottling line layouts handling both PET and glass bottling downstream. Recipe-based operation supports multi-flavor portfolios, and transfer connections allow straightforward tie-in to upstream water treatment and downstream premix and filling systems.

Year of construction: 1988, condition: good (used), machine/vehicle number: 170167, Capacity (mm): 8.5x50 Production (max): 250 ppm Gbedpfx Aasdwmcij Ijg

Condition: good (used), Code: 0749 Brand: TAGLIABUE - COSTA LEVIGATRICI Model: TT 3 1300 Automatic sanding machine for worktops, furniture, panels, tables Gbsdpjh T Dzqofx Aa Isg Technical data: Working width mm 1300 Max working thickness mm 130 Min working thickness mm 1 Composition: 1° Transversal belt - Motor Hp 15 - Electronic speed variator with display 2° Transversal belt - Motor Hp 15 - Electronic speed variator with display Transversal sanding belt size mm 1350 x 150 Chevron belt size mm 5510 x 140 Belt blowers Belt feed speed mt/min 5/25 Fixed table and mobile head for on-line set-up Panel cleaning rotary blowers Vacuum table Belt cleaning brush Infeed roller conveyor Installed power Kw 32 Compressed air 7 Atm Suction inlets: n° 2 diameter mm 200 - n° 2 diameter mm 150 - n° 2 diameter mm 100 Overall dimensions mmm 4400 x 2500 x 1600 h Weight kg 5000

Condition: used, OTT Tornado - TOP Control system - via a 15-inch color touch monitor for full automation and maximum operating convenience. CM-CombiMelt gluing system suitable for processing EVA and PUR hot melt adhesives as well as all standard cleaning granulates. Joint processing unit for edging chipboard panels. Automatic roll magazine. Gbodpfxoxy Iw Uo Aa Isg Automatic edge magazine. Double end trimming unit with automatic 0° / 3° swivel. Flush milling unit for flush trimming - 12mm. Fine radius milling - profile knives R2 - R5. Automated copying milling - corner rounding. Scraper unit - radius / bevel. Surface scraper unit. Sliding agent spray unit - PU. Cleaning set with fine polishing unit. Very stable workpiece support with roller conveyors - FRONT with scissor extension. Complete set of tools included. Machine is AS NEW in EXTREMELY WELL-MAINTAINED CONDITION. First commissioning in 2009, very few operating hours, approx. 1600. Machine from lease return / leasing option available. Ex stock Lieboch.
