Press brake

Bystronic Xpert 100 x 3100

Condition: good (used), Year of construction: 1997, machine/vehicle number: 887043, Offer 24557 Fsdpfxju T Nkno Aa Nepp Technical data: - max. working length 4060 mm - column clearance 3680 mm - max. pressing force 1700 kN - max. distance table / ram 385 mm - column projection 410 mm - ram stroke 215 mm - stroke speeds - downward speed idle max. 200 mm/sec - upward speed 135 mm/sec - downward pressing speed 1 to. 11 mm/sec - Total drive power 30 kW - Space requirement approx. W 5600 x H 3000 x D 2400 mm - Weight approx. 18000 kg - with: - with 6-axis CNC control DELEM - Two-hand control panel with foot switch - Crowning device - Controlled back stop with height adjustment 5 - 860 mm - Hydraulic upper + lower tool clamping - Die table displacement pneumatically supported

Condition: excellent (used), Year of construction: 2012, laser power: 6,000 W, sheet thickness steel (max.): 25 mm, working range: 4,000 mm, Used fully serviced, clean cutting Bystronic Bystar 4020 6kw 4metre x 4metre flat bed industrial cnc laser for sale Fedpfxeqcu Avj Aa Nspp High powered Bystronic Bystar 4020 4metre x 2metre cnc laser for sale Power: 6kw / 6000 watt / Bylaser 6000 Cutting area: 4000mm x 2000mm Year / new: 2012 Fully serviced with Bystronic and well maintained With rotary axis for cutting steel tube Cutting heads: 5inch, 7.5inch and 7.5inch long head In good working order, can be seen in production Delivery, installation and tuition can be quoted Ideal for cutting thick stainless steel, mild steel and aluminium

Condition: excellent (used), Year of construction: 2008, operating hours: 9,000 h, laser power: 4,400 W, Used very clean Bystronic Bystar 3015 4.4kW for sale / flat bed industrial cnc laser for sale Bystronic ByStar 3015 4.4kW BRAND: BYSTRONIC YEAR: 2008 MODEL: ByStar 3015 APPLICATION TYPE: LASER CUTTING LOCATION: UNITED KINGDOM MACHINE TYPE: LASER CUTTING MACHINES (CO2) Fully Serviced and Well Maintained CONTROL UNIT BRAND: BYSTRONIC Technical Information BRAND: BYSTRONIC LASERPOWER: 4.4KW / 4400 watts LASER TYPE: CO2 LASER BRAND: BYLASER 4400 MOVEMENT X-AXIS MOVEMENT: 3000 MM Y-AXIS MOVEMENT: 1500 MM Machines hours: Cut hours: 9,000 Fpodsr Hcmropfx Aa Nep ADDITIONAL EQUIPMENT – BYPOS – CUT-CONTROL – 2 CUTTING HEADS (5″, 7.5″)

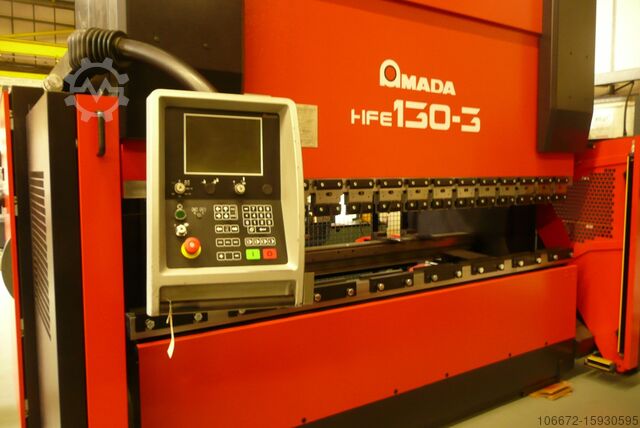

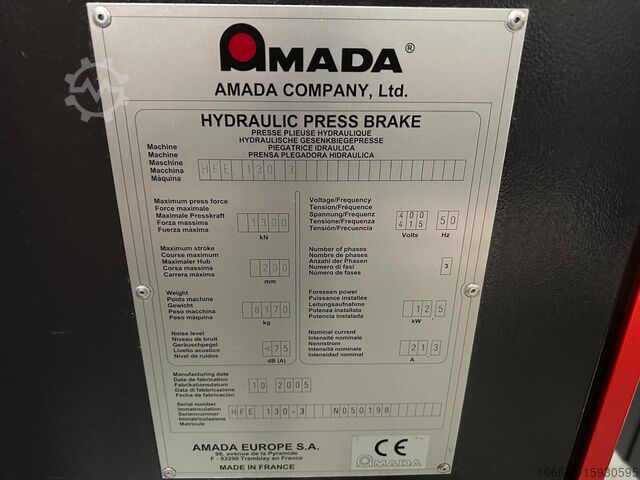

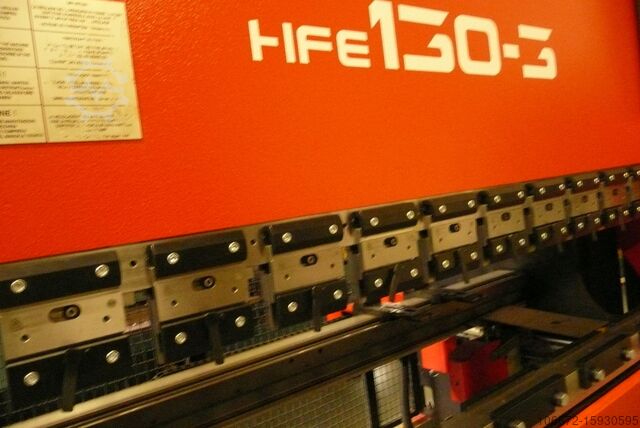

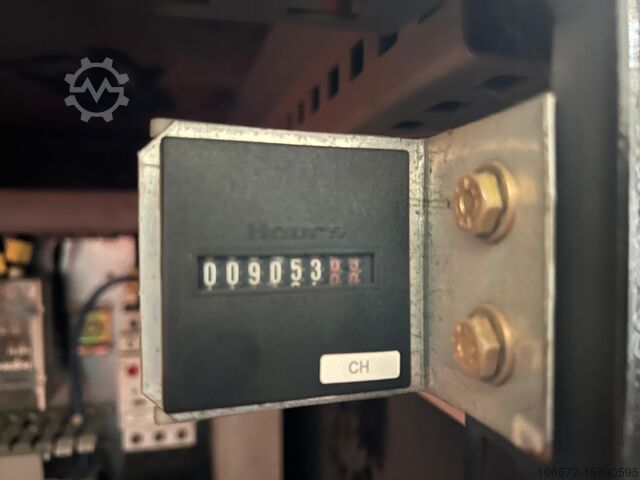

Condition: refurbished (used), Year of construction: 2005, AMADA MODEL HFE 130-3 130 tons capacity x 3000 bending length hydraulic downstroking press brake complete with OP 2000 7 AXIS cnc control, ERWIN SICK machine mounted electronic guards , side and rear interlocked fencing Model Amada HFE 130-3 downstroke CNC Press brake Year 2005 hours 9000 Tonnage 1300 KN Type OP 2000 CNC Controlled Axis Y1, Y2, X, R1 R2 Z1 Z2 Max. Bend Length 3000 mm Open height 470 mm Stroke Length 200 mm Approach Speed 100 mm/sec Fsdpfx Aajthgidj Nepp Bending Speed 1 - 10 mm/sec Return Speed 1-100 mm/sec Oil Capacity 110 LITRES Motor Power 11 kw Weight 7800 KG kg CNC Control Backgauge Stoke (X axis) 700 mm/s Max gauge 1000mm R axis 250mm can be demonstrated under power BROCHURE AND FURTHER INFORATION AVAILABLE UPON REQUEST

Condition: used, Year of construction: 1997, The bending press was manufactured in 1997 in England by EDWARDS PEARSON. The folding press is in good condition, sold with tools. Always serviced and maintained on time. The machine tools are connected and can be tested and inspected. Fsdpfxerfx Ute Aa Nepp Specification: Model: EDWARDS PEARSON 100/3100 PR6 Year: 1997 Working length: 3 100 mm Bending capacity: 100 T Travel: 172 mm Distance between table and frame: 450 mm Working speed: 100 mm/s Return speed: 110 mm/s Axes: auto X1, X2, Y1, Y2, Z1 , Z2 , R Tools: Available Weight: 7 T Other: New screen recently replaced, keyboard attached for ease of use. If you have more questions, we will be happy to answer.

Condition: excellent (used), Year of construction: 2007, Synchronized hydraulic press brake MECOS Mod. Syncro 200/4000. Fpodpfx Aev S Ad Rea Njp Numerco ESA KVARA control. NR.07 Controlled axes (Y1-Y2-X-R-Z1-Z1-Z1) WILA automatic compensation table. Pneumatic tool attachment: Type Promecam, Tecnostamp H=150 mm. Useful bending length: mm 4050. Power exerted: Ton 200. Front safety devices: DSP LASER. Weight: kg 24,000.

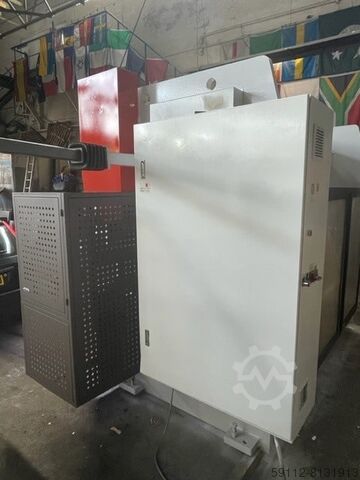

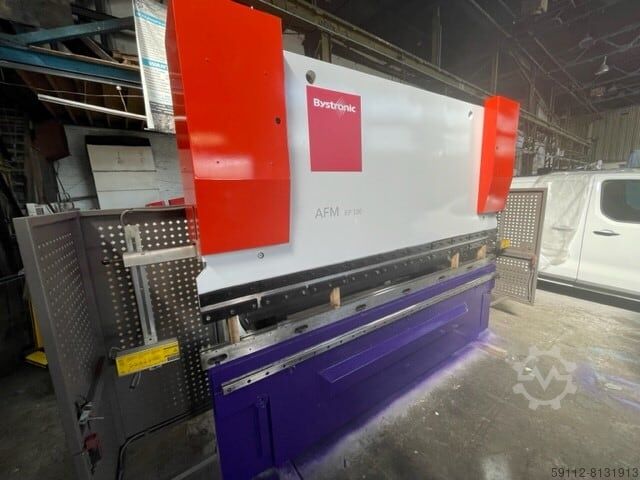

Year of construction: 2007, condition: like new (used), Used fully serviced Bystronic AFM EP 100 3metre x 100ton cnc pressbrake for sale: Model: Afm Ewards Pearson 100 Make: Bystronic Year 2007 Fsdpsi Egmlsfx Aa Nepp Cybelec 880s control Working length mm: 3100mm / 3metre Max. press force kN: 1000 / 100ton 2 axis back gauge – R and X axis 4 axis in total With crowning Machine will come with a set of upper & lower tooling

Condition: new, Year of construction: 2024, working width: 3,100 mm, pressing force: 150 t, Hydraulic press brake TPM8 150 tons press force 3100 mm edge length Efficient servo motor The servo motor reduces energy consumption by around 40% compared to an AC motor. New machine generation 20% more efficient. Significantly reduced oil temperatures improve performance and extend the service life of the hydraulic system. Intuitive TJS control system Windows 10 Enterprise with 19″ LCD touchscreen, 1280 x 1024 resolution and multi-touch support. Digital/2D graphic contour programming technology with 3D view, automatic preparation of the bending process and bending simulation. Supports CAD file import (DXF), 3D file import (IGS), flexible automatic calculation of bending operations and collision detection for workpiece, tools and machine body. Integrated hydraulic system The electro-hydraulic system controls two cylinders for high, synchronized accuracy during bending and repositioning. The integrated hydraulic control system minimizes oil consumption and improves machine stability. Hydraulic crowning The hydraulic automatic crowning system ensures a uniform and precise bending result, even for very long workpieces. The control system automatically regulates the necessary compensation to ensure precise and comfortable operation. Fjdpsvahr Aefx Aa Njpp Flexible back gauge system High speed and high positioning accuracy. The multifunctional backgauge system ranges from a standard single-axis configuration to a 4-axis configuration.

Year of construction: 2001, condition: ready for operation (used), General Data Fpsdpsv Sfwmjfx Aa Nop Machine weight 10000 Main Drive Number of axis 5 This 5-axis LVD PPEB 110/30 Press Brake was manufactured in 2001. It offers robust performance for precision bending operations. If you are looking to get high-quality bending capabilities, consider the LVD PPEB 110/30 machine we have for sale. Contact us for more information about this machine. Application Types Bending

Year of construction: 2003, condition: excellent (used), High quality, very clean used Edwards Pearson Beyeler Pr 8 8axis cnc pressbrake for sale with hemming table Very late Edwards Pearson BYSTRONIC PR8 100 x 3100 100 ton x 3100mm 8 Axis CNC Hydraulic Down stroke Press Brake complete With Cybelec Modeva 1200 Control. Late Edwards Pearson the year before they became Bystronic Fsdpfx Aaepky S He Nspp Manufactured 2003 – fully serviced and well maintained High Specification: Year of Manufacture /new 2003 Model PR8 100/3100 Control Cybelec Modeva 1200 Hydraulic tool clamping Back gauge Programmable Guards Capacity 100 Ton Maximum length of bend 3100mm / 3metre Max stroke 215mm Rapid approach 180mm/s Tooling top and bottom Wander type footswitch Total 8 axis Y1,Y2,X1,X2,R1,R2,Z1,Z2 – 6axis back gauge With hemming table to Dutch fold / produce safety edges and flashings Crowning We can quote for delivery and installation complete with operator training We can advise and supply brand new tooling to produce your sheet metal products on this cnc pre
