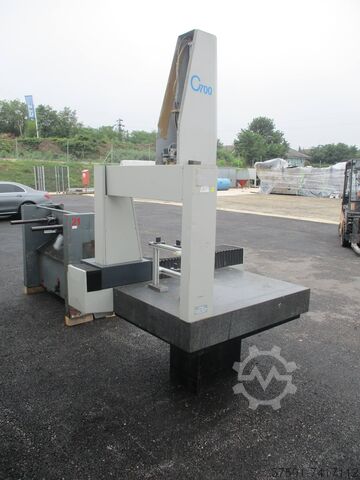

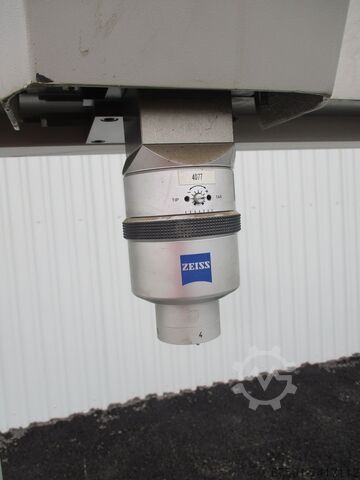

Coordinate Measuring Machine Measuring Machine

Carl Zeiss Granit-Messplatte Koordinatenmeßmaschine Für ersatzteil !

Condition: used, Year of construction: 2007, x-travel 900 mm y-travel 300 mm Crsdpjw Rrb Hjfx Ac Ueg z-travel 1000 mm control Siemens Sinumerik 840D max. workpiece diameter 1600 mm max. module 20 mm tip circle diameter 350 mm Milling arbour diameter 375 mm Total closing value 80 kVa weight of the machine ca. 33,5 t dimensions of the machine ca. 10,530 x 6,375 x 4,680 m Feed rate: - X-axis 1 to 3000 mm/min - Y-axis 1 to 3000 mm/min - Z-axis 1 to 4000 mm/min Spindle speeds in rpm: - Tool 26 to 265 - Workpiece table 0 to 8 Equipment/accessories: - M 2 motor milling head - Milling mandrels - Oil cooler - Technical documentation

Condition: good (used), workpiece diameter between centers: 2,286 mm, The No. 61 Angular Hypoid Tester is designed to test large bevel and hypoid gears up to 90" diameter and with shaft angles from 0 - 135 degrees. Spur, helical and internal gears can also be accommodated. The drive or pinion spindle can be rotated in either direction at a recommended spindle speed of 600 RPM. It is mounted in a head which is vertically adjustable on a column, so that the spindle can be offset either above or below the center line of the gear spindle for testing hypoid gears. The pinion head column is adjustable angularly in a horizontal plane to permit testing of gears of any shaft angle from 0 - 135 degrees. Csdpjrtrzdofx Ac Ujrg Specifications: Centerline of Drive Spindle to Nose of Brake Spindle (90 degrees shaft angle and without face plate): 38-1/2" Max. / 7-5/8" Min. Centerline of Brake Spindle to Nose of Drive Spindle (90 degrees shaft angle and without face plate): 60" Max. / 10" Min. Centerline of Brake Spindle to Nose of Drive Spindle (90 degrees shaft angle and with 54" face plate): 60" Max. / 28" Min. Centerline of Brake Spindle to Centerline of Drive Spindle (For Spur Gears): 56" Max. / 6" Min. Distance Between Nose of Brake Spindle and Nose of Drive Spindle (for spur gears): 36-1/2" Max. / 0" Min. Offset of Drive Spindle Either Above or Below Centerline of Brake Spindle: 10" Range of Shaft Angles: 0 - 360 Degrees Maximum Diameter of Gear: 90" Diameter of Face Plate: 54" Outboard Bearing: 3" Diameter Hole Spindles: RPM of Drive Spindle Pulley Set No. 1: 100 - 400 RPM of Drive Spindle Pulley Set No. 2: 250 - 600 Diameter of Taper Hole (large end): 6" Taper Per Foot: 3/4" Depth of Taper: 8" Hole Through Spindle: 5-1/2" Net Weight of Machine: 20,000# Net Weight of Machine W/Outboard Support and Bed Plate: 24,000#

Condition: used, Year of construction: 2013, Brand : GEMINIS Model : GT5 G2 1200x1000 Manufacture year : 2013 Cnc : SIEMENS 840D-SL Center height: 615 mm Swing over cross slide: 850 mm Swing over bed : 1200 mm Csdpfszn Axiex Ac Uorg Main spindle bore diameter: 104 mm Main spindle nose: DIN 55026-11 mm Spindle diameter on front bearing:150 mm Turning Speeds : 0-1400 rpm Spindle Ranges: 4 Headstock power: (S1/S6-60%) 30/37kw – (37/46kw Optional) Headstock torque: (S1/S6-60%) 4000/4850 Nm (4800/5950Nm) Guide width: 655 mm Height up to the plane guide: 800 mm

Condition: used, Year of construction: 1994, functionality: fully functional, - Year of manufacture: 1994 - 1st owner, from own use - Fully functional, powered, ready for demonstration - X-axis travel: 200 mm - Z-axis travel: 1320 mm - Turning diameter: 350 mm - Turning length: 1250 mm - Rapid traverse Z-axis: 15,000 mm/min - Spindle speeds: 25 – 2,500 rpm - Spindle bore: 105 mm - Spindle motor power: 22 kW - Control: Fanuc 0TF - Chip conveyor: Z-type Net price, unloaded ex-location Luckenwalde (Germany), without transport Csdjxg A S Hjpfx Ac Uerg

Condition: used, Technical details: capacity at 100% ED: 400 A capacity: 60% ED = 500 A welding current: Gleichstrom V weight of the machine approx.: 230 kg capacity: 21 kVA Welding rectifier Crsdpju Nwc Hofx Ac Ujg MIG / MAG Cooling type F Protection class IP 23 insulation class F incl. wire feed device, feed rate 0,5 - 20 m/min Ground cable/pliers Hose package 4 meters new *

Condition: used, Daewoo Puma 12S-3A CNC Turning Centre Year: 1996 Fanuc Series O-T CNC Control C-Axis Spindle Live Tooling 12 Station Servo Turret Hydraulic Chuck Swing Over Bed: 570 mm Maximum Turning Diameter: 430 mm Maximum Turning Length: 770 mm Serial Number 3P100044 90 mm Bar Capacity Cedpfx Acozrt Dws Uerg 91 mm Spindle Bore A2-8 Spindle Nose Spindle Speeds: 25–3,000 rpm 18.5/22 kW AC Spindle Motor X Axis Travel: 260 mm Z Axis Travel: 800 mm Rapid Traverse: X 20 m/min, Z 24 m/min Automatic Lubrication Coolant System Swarf Conveyor Fully Enclosed Splash Guarding

Condition: excellent (used), Year of construction: 2010, Capacity Swing over bed 750mm / 29.5" Swing over carriage 480mm / 18.9" Max. Turning diameter 750mm / 29.5" Max. Turning length 3935mm / 155" Distance between centres 4000mm / 157.5" Max. load between centres 3000kg Max. load by chucking 750kg Spindle Spindle speeds 3-1000rpm spindle speed range manual 2 steps Spindle nose type A2-11 Spindle bore 6.9mm / 6.9" Spindle taper MT6 Codpfjzfac Tjx Ac Uorg Carriage Max travel X axis 425mm / 16.7" Max travel Z axis 3935mm / 155" Rapid traverse X axis 3m/min / 120ipm Rapid traverse Z axis 6m/min / 236ipm Ball screw (diameter x pitch) X axis 32 x 5 mm Z axis 50 x 10mm Cross side width 260mm / 10.2" Turret tool post Curvic type H-4 (Manual) Number of tool positions 4 Tool site 32 x 32mm (1.25 x 1.25") Tailstock Taper in tailstock spindle MT6 Tailstock quill stroke 200mm / 7.9" Tailstock quill diameter 112mm / 4.4" Motor Main spindle motor AC18.5/15kw (25/20HP) X axis servo motor AC1.0 kW (1.3HP) Z axis servo motor AC2.9KW (3.8HP) Lubricant pump motor for headstock 0.2kW coolant pump motor 0.18kW Lubricant pump motor for apron 0.025kW

Condition: new, functionality: fully functional, machine/vehicle number: 314567.00, number of clamping sleeves: 1, mount diameter: 30 mm, clamping range: 30 mm, Collet chucks / collet chuck covers / support sleeves – collet chuck assembly new – unused Our asking prices are net, ex works, plus packaging costs, starting from €390. 5 collet chuck covers for collet chucks, size Ø30, item no. 314567.00, €390 per piece. 4 collet chucks, size Ø30.0, €580 per piece. 1 support sleeve for collet chucks, size Ø30, €420. Codpfxjwccp Hs Ac Uorg – e.g. for Reishauer grinding machines RZ 301 / RZ 362 from our stock. All technical specifications are subject to printing errors and changes. We only sell to countries within the European Community.

Condition: like new (used), Year of construction: 2022, functionality: fully functional, mount diameter: 38 mm, clamping range: 38 mm, Reishauer clamping device, base unit, basic chuck FK 38 suitable for Reishauer gear grinding machine, fits on the spindle for grinding machines RZ 150 / RZ160 / RZ 260 clamping diameter 38 mm for n max. = 3,000 rpm balanced with clamping stroke control / 3-point support control and media feed for additional functions: clamping / air system control / clamping stroke monitoring incl. assembly and operating instructions, as well as Reishauer wooden transport container as new – hardly used, from our stock 2 units available Price negotiable Our asking price is € 3,990.00 net ex works, plus packaging costs Cjdpfx Acjwzkcxj Uerg All technical specifications are subject to printing errors and changes. We only sell to countries within the European Community.

Condition: used, Rear grinding machine with permanent magnet clamping plate, JUNG, type HA 20 Device no.: 3344 Profile depth: max. 15 mm Angle setting: 0° to 2° Magnet plate: 115 x 115 mm Cjdpodz Sqxjfx Ac Uerg Clamping range: 110 x 75 mm Height of magnet plate: 119 mm Workpiece dimensions L x W x H: max. 60 x 100 x 50 mm Power consumption: 1 ampere Operating voltage: 24 volts, direct current (V/DC) - Mechanically switchable permanent magnet Dimensions L x W x H: 500 x 200 x 125 mm Weight: 25 kg In good condition Suitable for use in cutting tool mold making for conically rear-ground cutting plates or mold inserts.
