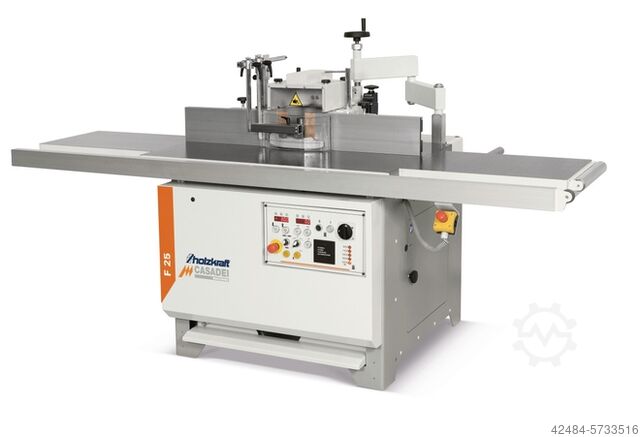

Swivel spindle milling machine

Casadei F25 LL-FK

Condition: as good as new (ex-display), Year of construction: 2023, Spindle tiltable: Yes -45 to 45° Height adjustment: electric Pivot adjustment: electric Stop adjustment: manual Height display: digital Swivel angle display: digital Milling stop indicator: mechanical counter spindle diameter: 30 mm spindle speeds: 3000, 4500, 6000, 8000, 10000 rpm power input: 7 kW Motor brake: Yes, automatic Suction connection: 1 x 120mm, 2 x 80mm Machine length: 2500mm Machine width: 1250mm Weight: 510kg Cgjdpfx Aegr Ufpeh Iop

Condition: used, Year of construction: 2010, machine/vehicle number: AB/203002, functionality: fully functional, cutting length (max.): 3,200 mm, SECOND-HAND CIRCULAR SAW SCM MOD. SI450 EP CLASS - Carriage mm. 3200 Cgedpfx Ajx Runqeh Ijp - Motor Hp 10 - Inverter for speeds change - Motirzed scoring unit adjustement - Serial number AB/203002 - Year 2010 (CE)

Condition: new, -Sturdy steel and gray cast iron construction -Dynamically balanced milling unit anchored to the work table -Extremely robust construction -Smooth operation thanks to precision units and high dead weight -Comes with right-hand/left-hand rotation and electronic locking when changing direction as standard -Five speeds from 3000 - 10000 rpm -Speed changes are easily and conveniently performed from the machine side -Comes with an MK 4 interchangeable spindle system as standard -Large gray cast iron work table for lasting precision -Easy handling thanks to controls and a speed display on the front of the machine -Large milling stop with fine adjustment and aluminum stop jaws as standard -Stop adjustment via crank handle -Numerical display of the set spindle height, accurate to within a tenth -Powerful industrial motors Manufacturer SCM Group S.p.A. Via del Lavoro 1/3-Po box 168, 36016 Thiene-Vicenza, Italy Dimensions and weights: - Weight (net) approx.: 510 kg Extraction connection: - Number of extraction nozzles: 2 - Extraction nozzle diameter: 80 mm - Number of extraction nozzle stops: 1 - Extraction nozzle stop diameter: 120 mm Work table: - Work table length: 2500 mm - Work table width: 810 mm - Table height: 923 mm Installation information: - Explanation of space requirements: The dimensions take into account the maximum travel distances or usable lengths. - Working area length: 3700 mm - Working area width/depth: 5000 mm - Explanation of working area: Please add the specified dimensions to the space required to determine the recommended free space for the machine. Features: - Router stop: Heavy-duty professional design with aluminum stop jaws and fine adjustment, adjustable from the front via a crank with a numeric digital display - Curved router guard - Spindle height adjustment: manual - Spindle tilt adjustment: manual - Controls: manual height and tilt adjustment of the router unit - Position of control elements: on the machine body - Table design: table extension left and right and extendable workpiece support (total width 2500 mm) Electrical data: - Supply voltage: 400 V - Mains frequency: 50 Hz - Drive motor power: 7.0 kW Router spindle: - Spindle tilt: -45 – +45 ° - Usable spindle length: 140 / 180 mm - Explanation of usable spindle length: for spindle diameter 30 – 35 / for spindle diameter 40 – 50 mm - Milling spindle stroke: 90 mm - Changeable spindle: MT 4 - Spindle speed(s): 3000/4500/6000/8000/10000 rpm Maximum milling tool diameter: Cgodpfeu T Hhkjx Ah Ijp - Maximum lowerable tool diameter: 320 x 60 mm - Maximum tool diameter for profile milling: 250 mm - Maximum tool diameter for tenon milling: 350 mm - Maximum tool diameter for form milling: 160 mm

Condition: new, Robust craftsman’s machine with a spindle moulder tiltable 45° on both sides and MK4 interchangeable spindle. Stable steel and cast iron construction. Dynamically balanced milling unit anchored to the worktable. Exceptionally robust build. Smooth operation due to precision components and high intrinsic weight. Standard features include reversible rotation (left/right) with electronic interlock when changing direction. Five speeds from 3,000 to 10,000 rpm. Speed change is operated easily and conveniently from the machine's side. Comes as standard with MK 4 interchangeable spindle system. Large grey cast iron worktable for sustained precision. Easy handling via controls and speed display on the machine's front. Large-dimensioned milling fence with fine adjustment and aluminium fence jaws included as standard. Fence adjustment via hand crank with numerical digital display of spindle height in 0.1 mm increments. Powerful industrial motors. Delivery includes: Technical Data: Dimensions and Weight: Weight (net): approx. 510 kg Cgsdpfx Aexnqx Rsh Ijp _____ Dust Extraction Connection: Extraction port diameter fence: 1 x 120 mm Extraction port diameter machine: 2 x 80 mm _____ Worktable: Worktable length: 2,500 mm Worktable width: 810 mm Table height: 923 mm _____ Setup Information: Space requirement details: dimensions take into account maximum travels or working lengths. Working area length: 3,700 mm Working area width/depth: 5,000 mm Note: Please add these working area dimensions to the space requirement to determine the recommended free installation area for the machine. _____ Equipment: Milling fence: heavy-duty professional design with aluminium fence jaws and fine adjustment, adjustable from the front via hand crank with numerical digital display. Arc milling safety guard: YES Spindle height adjustment: manual Spindle tilting adjustment: manual Control: manual height and angle adjustment of the milling unit Position of controls: on the machine body Table features: table extension left and right and pull-out workpiece support (total width 2,500 mm) _____ Electrical Data: Supply voltage: 400 V Mains frequency: 50 Hz Drive motor power: 7.0 kW _____ Milling Spindle: Spindle tilt: -45 to +45 ° Usable spindle length: 140 / 180 mm Clarification of usable spindle length: for spindle Ø 30-35 / for spindle Ø 40-50 mm Milling spindle stroke: 90 mm Interchangeable spindle: MK 4 Spindle speeds: 3,000/4,500/6,000/8,000/10,000 rpm _____ Max. milling tool diameters: Max. sinkable tool diameter: 320 x 60 mm Max. profile milling diameter: 250 mm Max. tenoning diameter: 350 mm Max. contour milling diameter: 160 mm

Condition: used, 2-axis CNC spindle moulder "CASOLIN" model F 90 KTL USED MACHINE - V380/50 - "CE" [code: TOU-051] Complete with: Cgedpfx Ahew Awk Sj Ijp * extended infeed table 1990x770 mm * extendable support bar * tenoning guard (for tools max. diameter 330 mm) * tenoning carriage * pendant control * support for powered feed unit * 4-roller feed unit "MAGGI" * strip protection device * spindle diameter: 40 mm * spindle speeds: 3000/4500/6000/8000/10000 rpm * motor power: 7.5 kW

Condition: as good as new (ex-display), Year of construction: 2025, CASADEI F 25 LL FK - table milling machine with tilting milling spindle and table extensions Table milling machine with tiltable milling spindle from -45° to +45 Sturdy cast steel construction Dynamically balanced milling unit anchored to the work table Particularly robust construction Smooth running due to precision aggregates and high dead weight Standard with right-left rotation and electronic blocking when changing direction 5 speeds from 3000 - 10000 min-1 Speed change is easy and convenient from the machine side Standard with MK 4 change spindle system Large work table made of cast iron for long-lasting precision Easy handling due to control elements and speed display on the front of the machine Milling fence with fine adjustment and aluminum fence jaws as standard equipment Powerful industrial motors Equipment details: Fraes fence Fraes fence with crank/handwheel adjustment from the front side Cgodpfodqzcxjx Ah Iep With numerical display Interchangeable spindle Interchangeable spindle MK 4 standard on all CASADEI F 23 and F 25 models Option sliding carriage Option sliding carriage for small tenoning operations and for slotting Scope of delivery: Manual tiltable milling spindle from +45° to -45°. Speed indication via LED at the front Aluminum stop jaws Sheet milling protection cover Right-left rotation of the milling spindle MK 4 interchangeable milling spindle Milling fence with crank/handwheel adjustment from the front with numerical display table extension left and right (2500 mm length) extendable workpiece support (2500 mm length) Model CASADEI F 25 LL FK article no. 5220728 Technical data Dimensions work table 2500 x 810 mm Milling spindle tilting range +45 to -45 degrees useful length of spindle at Ø 30-35 mm 140 mm useful length of spindle at Ø 40-50 mm 180 mm milling spindle stroke 90 mm max. tool Ø profiling 250 mm max. tenon tool Ø 350 mm max. milling tool Ø 160 mm max. tool-Ø lowerable 320 x 60 mm speeds, 5-stage 3000/4500/6000/ 8000/10000 min¯¹ motor power 400 V / 50 Hz / S6-40% 7 kW weight 480 kg suction nozzle-Ø stop 1 x 120 mm suction nozzle-Ø under table 2 x 80 mm Location: Ex stock 54634 Bitburg - immediately available -

Condition: as good as new (ex-display), Year of construction: 2021, machine/vehicle number: AB00017920, functionality: fully functional, power: 7 kW (9.52 HP), input voltage: 400 V, spindle diameter: 30 mm, pivoting range: 45 °, rotational speed (max.): 10,000 rpm, rotational speed (min.): 3,000 rpm, table width: 810 mm, table length: 2,500 mm, overall weight: 510 kg, height adjustment type: mechanical, milling spindle length: 180 mm, spindle stroke: 90 mm, working height: 923 mm, Equipment: motor brake, - Stable steel and grey cast iron construction - Dynamically balanced milling unit anchored to the worktable - Particularly robust design - Smooth operation thanks to precision components and high own weight - Standard with reversible rotation and electronic interlock when changing direction - Five speeds from 3000 to 10000 rpm - Speed adjustment is simple and convenient from the machine side Cgjdpfxowwkqhe Ah Isp - Standard with MK 4 quick-change spindle system - Large worktable made of cast iron for lasting precision - Easy handling due to control elements and speed display on the machine front - Large dimension milling fence with fine adjustment and aluminum fence jaws as standard - Fence adjustment via handwheel - Numerical display of the set spindle height, precise to one-tenth - High-performance industrial motors

Condition: used, Year of construction: 1981, Table size: 1200 x 1000 mm Table height: 850 mm Swivel range: -5° to +45° Spindle speeds: 3000/4000/5000/6000/8000/10000 rpm Height adjustment: 120 mm Tool holder: MK5 incl. integral fence Weight: approx. 1000 kg Storage location: Nattheim Codjx It Auepfx Ah Isgp

Condition: as good as new (ex-display), functionality: fully functional, 7.5 kW Motor, 400 V, 50 Hz Cgjdpfxex Ey S Rs Ah Iep Heavily ribbed cast iron table with table rings Electronic soft start and braking device Electric height and tilt adjustment with rapid and slow-motion modes, precise to 1/10, height adjustment approx. 145 mm, tilt adjustment +/- 45.5° 4 spindle speeds: 3,000/4,500/6,000/9,000 rpm Spindle fence type 2601 Efficient with multiplex fence jaws Fixed milling spindle Ø 30 mm with "fix" quick-release nut Left-/right rotation, machine socket outlet, arc milling guard type TAPOA, Hofmann "Centrex" Paintwork: grey white/signal blue Table size 2000 x 815 mm Extendable support Heavy-duty milling fence type 2620 Total adjustment via handwheel with indicator included Switchable to tool zero position. Digital display for individual jaw adjustment. Includes quick clamping system for the fence jaws Cast iron fence jaws Safety rulers and moulding board Interchangeable spindle MK5 Power feed unit, 4 rollers, 8 speeds with stand Control panel on top Tool compartment

Year of construction: 2003, condition: reconditioned (used), longitudinal saw for cutting boards 4 meters main engine 400V, 7.5kW - blade feed motor 400V, 2.2 kW - extending the pneumatic saw - working pressure 6bar - cutting length 4020 mm Cgodpfx Aohbp T Seh Iep - cutting height approx. 170mm - machine length 5.5 m - machine width 1.6 m
