Combined surface and thickness planer

Casadei PFS 520 - sofort verfügbar -

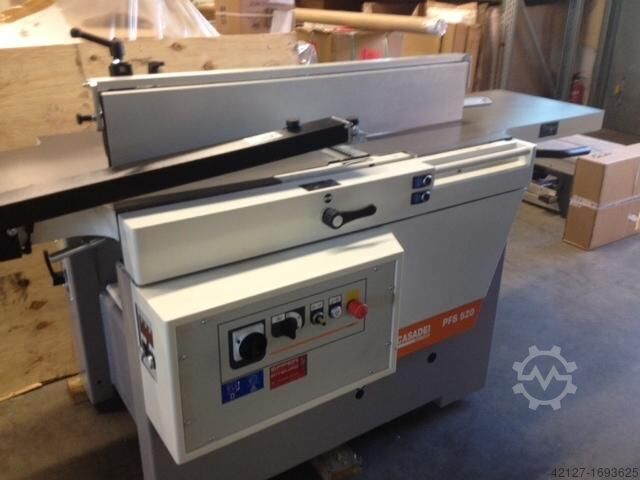

CASADEI PFS 520 - Planer-thicknesser machine with 520 mm planing width and motorized thickness table adjustment

Stable steel cast iron construction
Large, ribbed planer tables made of cast iron, annealed to prevent warping
Smooth operation due to high self-weight
Four feed speeds
Motorized thickness table adjustment with two speeds and digital display
Segmented pressure shoes in the infeed
4-knife cutterhead, precision-mounted
Helically toothed steel feed roller for particularly even and gentle wood feed
Take-off roller with rubber coating
Large planer fence, adjustable 90°-45°, readable from the front
Standard with auxiliary fence
Powerful S6 industrial motor (P2)

Tersa cutterhead
Knife changes in seconds
When the machine starts, the knives are automatically tensioned by centrifugal force - self-clamping
The knife overhang adjusts automatically without adjustment or screwing

The planer table is adjusted by a stable and precisely guided parallelogram system, ensuring that the distance between the table tips and the cutterhead remains the same in every adjustment position.

The stable aluminum planer fence is anodized as standard, easily adjustable, and offers a generous support surface.
The adjustable inclination from 90° to 45° is easily readable from the workstation.
Standard with an auxiliary fence for safe planing, even of narrow workpieces.

Fig. with optional equipment
Hjdebxz S Hspfx Anpsp
The connection point for the dust extraction is always in the same position, both for planing and thicknessing.
This eliminates the need for additional dust extraction hoses or cumbersome repositioning and routing around the machine.

Technical data

Total length of planer tables 2300 mm
Infeed table length 1180 mm
Planing width 520 mm
Dimensions of planer fence 1200 x 190 mm
Swivel range of planer fence 90 - 45°
Min./Max. planing height 3/250 mm
Cutterhead diameter / number of knives 100 mm / 4 pcs.
Feed speed 5/8/12/18 m/min.
Speed 5000 rpm
Motor power 400 V / 50 Hz / S6
Dust extraction port diameter 120 mm
Weight 1020 kg

Top machine

Location: Bitburg - available immediately
