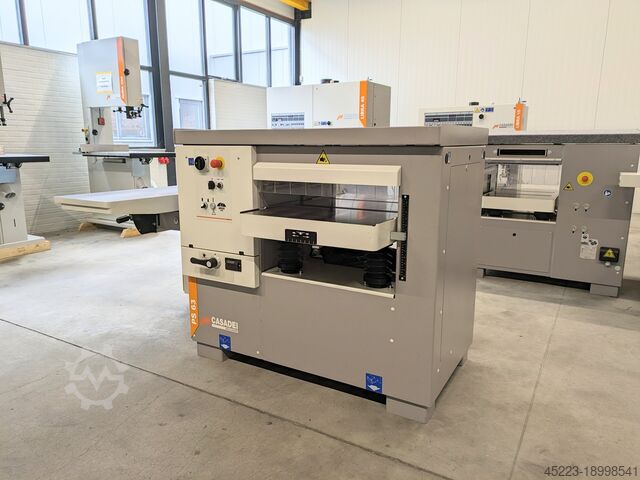

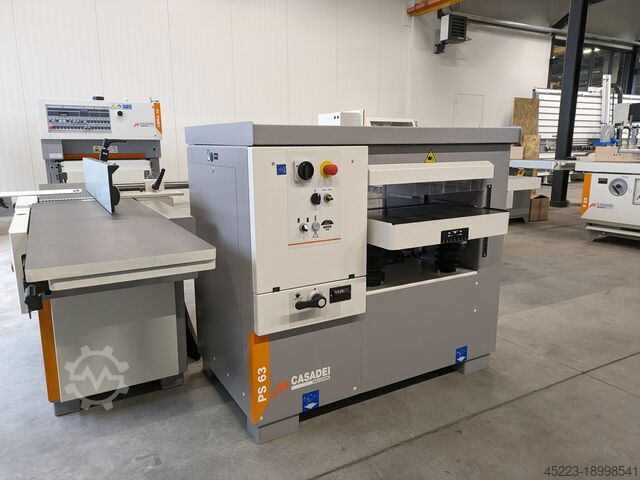

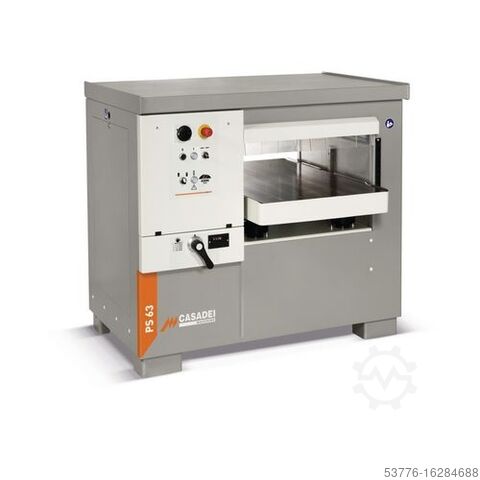

Thickness planer

Casadei PS63

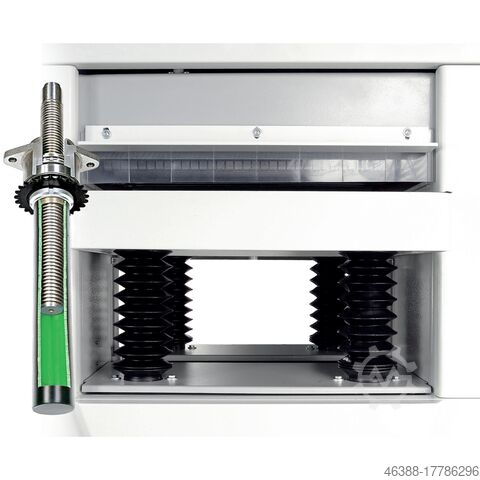

Condition: new, -Motorized thicknessing table lift with two speeds -Numerical display for working height -Gray cast iron thicknessing table -The thicknessing table is mounted on four large trapezoidal thread spindles for maximum stability and precision -Four feed speeds -Optional with two rollers in the thicknessing table -Standard with noise protection and chip protection curtains at the workpiece inlet and outlet -Adjustable roller contact pressure -Front feed roller with helical gearing -Rubber-coated feed roller -Powerful industrial motor Manufacturer SCM Group S.p.A. Via del Lavoro 1/3-Po box 168, 36016 Thiene-Vicenza, Italy Dimensions and weights: - Length (product) approx.: 1305 mm - Width/depth (product) approx.: 1080 mm - Weight (net) approx.: 750 kg Extraction connection: - Extraction nozzle diameter, thickness: 150 mm Installation information: - Space required length: 1305 mm - Space required width/depth: 1080 mm - Space required height: 1197 mm - Explanation of space requirements: The dimensions take into account the maximum travel distances or usable lengths. - Machine body length: 1305 mm - Machine body width/depth: 725 mm - Working area length: 1000 mm - Working area width/depth: 2000 mm - Explanation of the working area: Please add the specified dimensions to the space required to determine the recommended free installation area for the machine. Thickness: - Thickness table length: 630 mm - Thickness table width: 1000 mm - Minimum working height (thickness): 3.5 mm - Maximum working height (thickness): 300 mm - Minimum working length (thickness): 210 mm - Maximum chip removal (thickness): 8 mm Electrical data: - Drive motor power: 9 kW - Supply voltage: 400 V - Mains frequency: 50 Hz Planer block: - Planer block type: TERSA - Planer block diameter: 120 mm - Number of planer knives: 4 - Planer block speed: 4500 rpm - Maximum planing width: 630 mm Feed: Ltsdou T Hq Eopfx Ac Hsa - Feed speed: 5/8/12/18 m/min

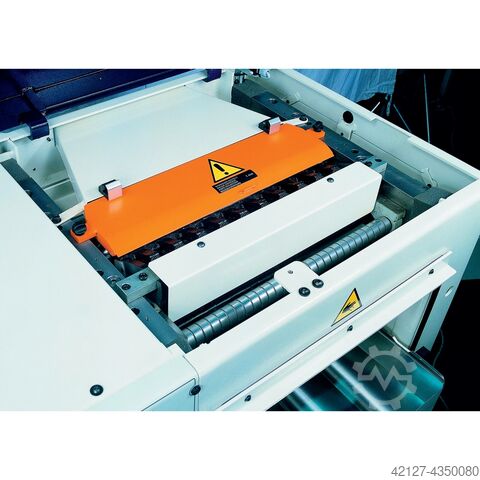

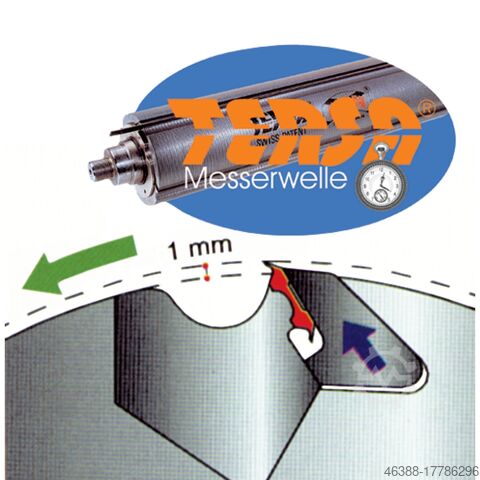

Condition: new, Year of construction: 2025, Motorized thicknessing table stroke with two speeds Numerical display for working height Grey cast iron thicknessing table The thicknessing table is mounted on four large trapezoidal thread spindles for maximum stability and precision Four feed speeds Optional with two rollers in the thicknessing table Noise and chip protection curtain at workpiece infeed and outfeed as standard Adjustable roller contact pressure Front infeed roller with helical toothing Pull-out roller with rubber coating Powerful industrial engine Equipment details Models TERSA with Tersa planer blade shaft Planer blade change in seconds When the machine is started, the planing knives are automatically clamped by centrifugal force - self-locking The blade projection adjusts automatically without using setting gauges Work table The work table is supported on four large trapezoidal threaded spindles, which ensure maximum stability in all working conditions With electrical table adjustment as standard Due to the special lifting device, the table position is maintained even without locking Helical toothed steel feed rollers for a constant and even wood feed second, rubberized feed roller at the outlet Massive recoil protectors prevent the recoil of workpieces Ltjdpfx Asff Efajc Hja A 4-knife shaft ensures an optimal planing pattern Dimensions and weights Length approx. 1305 mm width/depth approx. 1080 mm Weight approx. 750 kg Dust extraction connection Suction nozzle diameter thickness 150 m

Condition: new, Year of construction: 2024, Item number 5220164 Motorized thicknessing table lift with two speeds Numerical display for working height Thicknessing table made of gray cast iron The thicknessing table is mounted on four large trapezoidal threaded spindles for maximum stability and precision Four feed speeds Optionally with two rollers in the thicknessing table Noise protection and chip protection curtain at the workpiece infeed and outfeed as standard Adjustable roller contact pressure Front feed roller with helical teeth Pull-out roller with rubber coating Powerful industrial motor Dimensions and weights Length approx. 1305 mm Width/depth approx. 1080 mm Weight approx. 750 kg Suction connection Suction nozzle diameter thickness 150 mm Working height min. 3.5 mm Working height max. 300 mm Working length min. 210 mm Ltedpfx Acjtu Uauj Hea Chip removal max. 8 mm Electrical data Drive motor output 9 kW Supply voltage 400 V Mains frequency 50 Hz Planing cutterblock Type TERSA Number of planing knives 4 pcs Speed 4500 min¯¹ Planing width max. 630 mm Feed speed 5/8/12/18 m/min

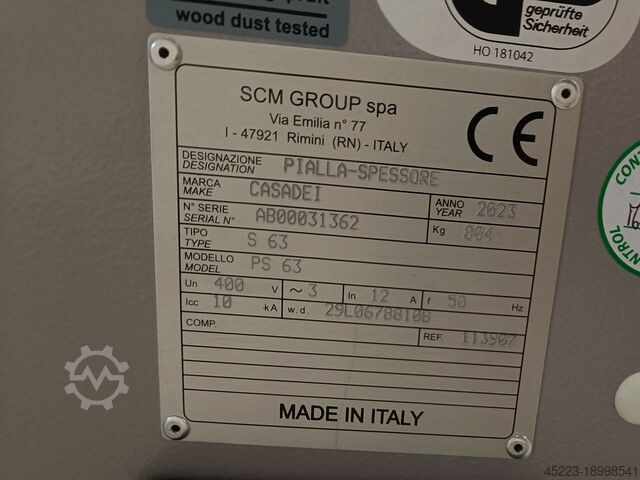

Condition: new, Year of construction: 2023, machine/vehicle number: MR005067, Thicknesser with the possibility to plan up to 630mm wide and up to 300mm high. Very solid machine with simple operation. Height adjustment readable via mechanical digital hine is equipped with the following options: - Thicknessing table with 2 table top rollers - Tersa planer shaft, including 1 set of knives Technical specifications: - Maximum planing width: 630 mm - Diameter planer shaft: 120 mm - Number of knives: 4 pieces Lodpfjwd Hkqex Ac Hsta - Type of planer shaft: Standard - Maximum chip removal: 8 mm - Maximum planing height: 300 mm - Minimum planing height: 3.5 mm - Planer height reading: Mechanical digital - Feed speed: 5-8-12-18 /min - Dimensions of thicknessing table: 640 x 1000 mm - Height adjustment of thicknessing table: Electric - Motor power: 9.5 hp - Serial number: AB00031362
