Plate Shear - Mechanical

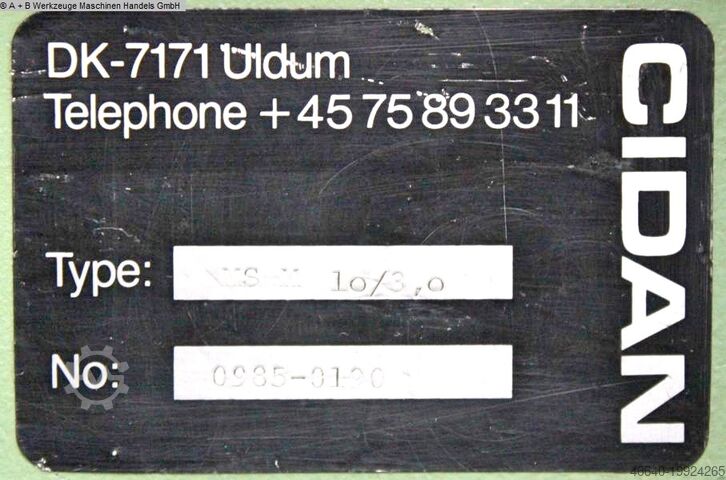

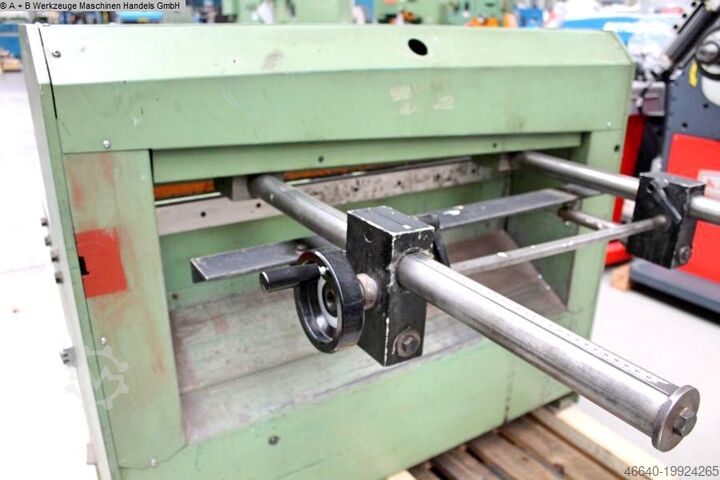

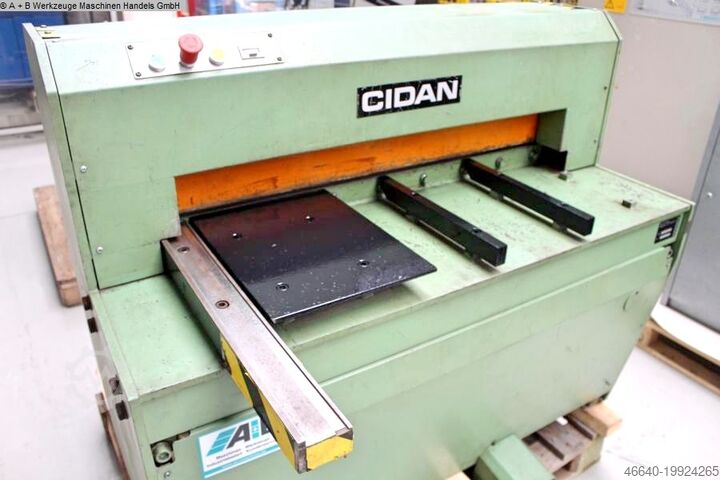

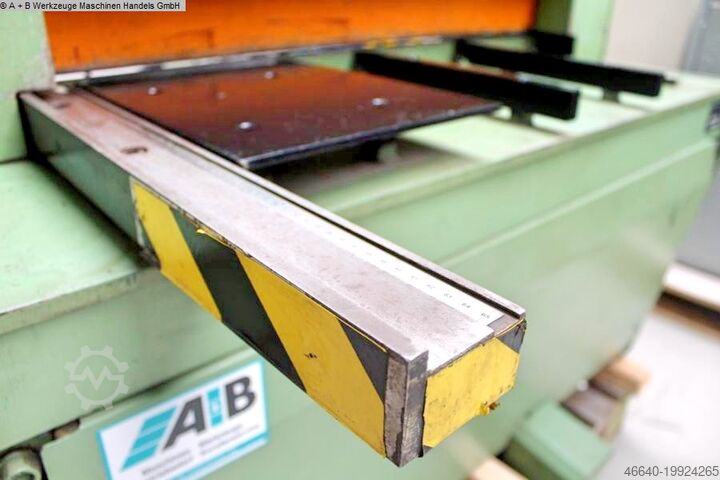

CIDAN MS M 10/3.0

Condition: like new (used), Year of construction: 2013, cutting length 1060 mm cutting angle 2 ° no. of strokes 50 Hub/min engine output 4,0 kW Nodpfx Asua Iuljc Hjdf weight of the machine ca. 0,67 t Motorised guillotine shears type 165.03 Technical data: Working width (cutting length): 1060 mm Max. sheet thickness to be cut: 2.5 mm at 400 N/mm² Machine stroke rate approx.: 50/min Cutting angle: 2° Opening width hold-down device: 5 mm Factory setting cutting gap 0.1 mm - Digital display for backgauge - Front table support - Operating instructions available

Condition: used, Guillotine shear, sheet metal guillotine DIGEP type OL 3 Nedpfolpkcnex Ac Hodf Workshop-refurbished guillotine shear Serial no.: 1312 Year of manufacture: 1977 Cutting length: 1250 mm (nominal cutting length) Max. cutting length: 1300 mm Cutting thickness at 450 N/mm²: 3 mm Simple backgauge: 500 mm Frame depth: 200 mm Cutting angle: 2° Strokes at full cutting length: max. 50 strokes/min Working height: 860 mm Motor power: 2.2 kW Main connection: 380 Volt, 50 Hz - LED cutting area lighting - Simple backgauge with manual adjustment - Mechanical foot switch - Front angular stop left - 1 piece front sheet support 300 mm Dimensions (L x W x H): 1660 x 1350 x 1200 mm Weight: 1600 kg Good condition

Year of construction: 1983, condition: used, sheet width 1250 mm plate thickness 3,0 mm distance between columns 900 mm power requirement 2,2 kW dimensions 3,27 x 1,69 x 1,29 m weight of the machine ca. 1,6 t used compact mech. guillotine shear Nodpfx Asnwr Dtec Hodf - strokes per minute: 50

Condition: used, Year of construction: 1962, Working length: 1020 mm Sheet capacity max.: 3.5 mm Ndsdjrh D Ttopfx Ac Hef Dimensions (WxDxH), approx.: 1640 x 1860 x 1390 mm

Condition: good (used), Year of construction: 1977, machine/vehicle number: 1172, Offer 23443 Technical data: - max. working width 1250 mm - max. cutting capacity St 40 3 mm - Cutting angle 2.30 ° - Cutting gap adjustment by hand - Projection 200 mm - Manual backgauge 10 - 500 mm - Drive 400 V / 2.2 kW - Table height approx. 800 mm Ndjdporckh Sjfx Ac Hjf - Space requirement incl. backgauge - approx. W 1850 x H 1200 x D 1450 mm - Weight approx. 1700 kg

Condition: used, Technical details: sheet width: 1500 mm plate thickness: 2,25 mm distance between columns: 1600 mm back gauge: nein cutting angle: nicht bekannt ° cutting gap adjustment: nein mm down holder: über Druckleiste Stück Ndedpfx Aju Icn Eoc Hsf height over floor: 850 mm Table dimensions: LXB 1800 x 350 mm weight of the machine ca.: 0,85 t dimensions of machine: 2,0 x 0,8 x 1,3 m simple mechanical guillotine shear with shelf right/left 305 x 100mm operation via ON/OFF *

Condition: used, Year of construction: 2008, sheet width 1530 mm plate thickness 4.0 mm thickness at "Niro-steel" 2.0 mm no. of strokes max. 34 Hub/min cutting angle 2.70 Grad distance between columns 1540 mm work height max. 920 mm Control konv. voltage 400 V engine output 3.2 kW weight of the machine ca. 1115 kg. range L-W-H 2275 x 2220 x 1400 mm Features: - Robust motorized swing-arm guillotine shear - Break-resistant, torsion-resistant welded steel construction - Compact and easy-to-use machine design - Manual backgauge, adjustable from the rear * Stepless adjustment across the entire travel range - 1x hold-down bar - 1x freely movable foot switch - Front, extendable table extension Ndjdpfxsxyln Rj Ac Hsf - Rear safety device - Original operating instructions * Optional accessories included: - Sheet metal holding device for thin sheet metal blanks

Condition: used, Year of construction: 1997, sheet width 1050 mm plate thickness 3.0 mm ST cutting angle 2.0 ° stroke max. 38 p. Min. total power requirement 5.5 kW Njdpfjxaaazjx Ac Hodf weight of the machine ca. 1690 kg range L-W-H 1800 x 1800 x 1250 mm from a maintenance workshop (!!) Furnishing: - Motorized / electric guillotine shears - manual backgauge, adjustment by hand crank * Travel range max. 700 mm * with analogue position display (scale) * manual adjustment from behind - rear protection - rear sheet metal slide - free-moving footswitch

Condition: excellent (used), functionality: fully functional, Mechanical guillotine shear Inventory no. Manufacturer: DMF Model: 6G - 150 Year of manufacture: 1989 Technical specifications * Cutting length: 1500 mm * Max. sheet thickness: 6 mm * Backgauge: electric, 900 mm * Motor power: 4 kW * Weight: approx. 1980 kg * Central lubrication * Work table Nsdpoxwal Ejfx Ac Hedf * Foot pedal * Angle stop: 1000 mm * 2 support arms, 520 mm each * Sheet holding device In very good condition.

Condition: excellent (used), functionality: fully functional, Year of construction: 1996, Capacity 1000 x 3.5 mm - electric foot switch - side stop left 600 mm, two supports each 600 mm - central lubrication - Ortlinghaus brake-clutch combination - pneumatic tilting roller table or lifting with plastic rollers - rear stop area protected by light barrier - operating instructions Ndsdpsxuwa Ujfx Ac Hof
