CNC Work Centre

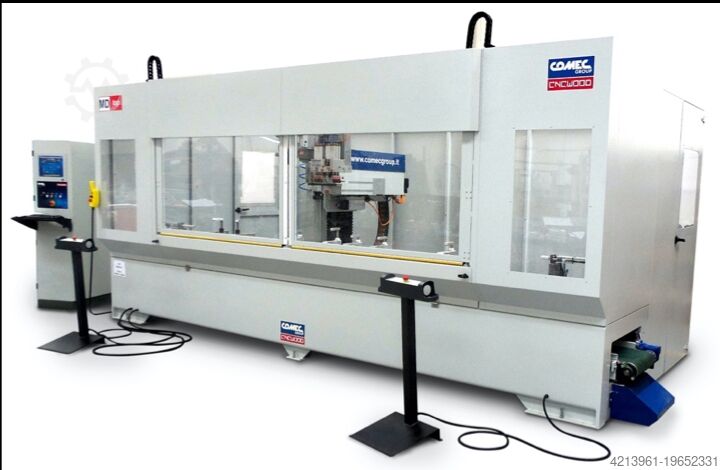

Comec MD Top XL

Condition: new, CNC Machining Center Manufacturer: COMEC Type: MD TOP XL The ideal solution for CNC machining of narrow, complex workpieces. COMEC makes it easy for you. Head configurations can be individually configured for: - Sawing with a 360-degree axis - Milling heads for horizontal and vertical machining - Drilling heads with individually selectable spindles, vertical and horizontal - Multi-spindle row drilling heads, individually selectable, also horizontally - Horizontal milling head with a 360-degree C-axis Specially designed clamping table, travels in the X direction automatically and is program-controlled. Individual equipment options are available, for example: Base frame Heavy-duty base machine stand, electrically welded. Maximum workpiece sizes: X-axis 3350 mm (or 1500 + 1500 mm in two working areas) Y-axis 200 mm Z-axis 180 mm Traversing tool carrier 3 axes CNC controlled. Linear and interpolating. Positioning speed of the tool carrier max. 70 m/min. Vertical drive spindles 1 drive spindle for 1 drilling head with individually selectable drilling spindles 5 vertical drilling spindles, spacing 32 mm 3 horizontal double-output spindles on the Y-axis, spacing 32 mm 3 horizontal double-output spindles on the X-axis, spacing 32 mm 1 Vertical milling electro-spindle 8.0 KW, 12,000/18,000 RPM. Tool holder ISO 30 taper + ER 32 collet for manual tool change with quick release. 1 Milling / Sawing / Drilling spindle With motor 7.0 KW, 8,000 - 12,000 RPM. 360 C-axis, interpolating With attachment with 180 double output for saw blade and drilling/milling tool Horizontal electro-spindle 1 Milling spindle With motor 5.6 KW / 12,000 - 18,000 RPM With ER 32 collet 4 + 4 workpiece supports Adjustable on guides with 4+4 pneumatic clamping cylinders, with 2+2 horizontal clamping cylinders and front and side stops. Automatic magazine CA 2 Adjustable on linear guides, fixed on the left (zero) With easy access for the operator and a high degree of autonomous operation. With coated discharge chute for the machined workpieces. CONTROL UNIT - CAD CAM Free-standing control cabinet next to the machine Industrial PC with operator interface with 17" color touchscreen. SSD 120 GB, interface: Ethernet USB / RS 232 Programming with 3-D supported display Option for network connection for programming and remote support. Remote control console for controlling the machine by the operator during tests and setup. PROTECTIVE CABIN Surrounded with solid sheet metal panels Knsdpfx Ajzvgl Nshaec With front protective screens, controlled by the work cycle Chip conveyor With outlet to the right side, with motor 0.37 KW Connection 400 V / 50 Hz Find it quickly Offer machines Subscribe to newsletter Unsubscribe from newsletter Contact us Overview

Year of construction: 2000, condition: ready for operation (used), Model: GEISS U8 (nominal size 1000 × 1500 mm) Sheet size: 1000 × 1500 mm (feed) Max forming area: approx 1460 × 960 mm (subject to verification) Draw depth: ~400 mm Working height: ~1140 mm Features: Closed-chamber vacuum forming machine; stepless adjustable clamp frame; integrated vacuum system; cooling fans with water-mist; window plate adjustment; suitable for sheet/roll feed. Knodpexwp I Njfx Ahaec

Condition: ready for operation (used), Year of construction: 2020, travel distance X-axis: 3,350 mm, travel distance Y-axis: 200 mm, travel distance Z-axis: 180 mm, number of axes: 3, spindle motor power: 5,600 W, spindle speed (max.): 18,000 rpm, This 3-axis COMEC MD TOP XL CNC Wood Machining Centre was manufactured in 2020. It features a robust mono-block structure, high-speed axes positioning up to 70 m/min, and versatile electro-spindles for drilling, milling, and cutting. The machine includes a CAD-CAM control unit with a 17" touchscreen and full safety enclosures. If you are looking to get high-quality woodworking capabilities, consider the COMEC MD TOP XL machine we have for sale. Contact us for more information. • Machine frame: Heavy-duty mono-block structure in electro-welded steel • Spindles: • Vertical electro-spindles: 3 Knodszug Hkopfx Ahajc • Drilling spindle • Power: 1.7 kW • Speed: 4350 rpm • Point-to-point drilling head: • 5 vertical drilling spindles (32 mm spacing) • 3 double-exit horizontal spindles along Y-axis (32 mm) • 3 double-exit horizontal spindles along X-axis (32 mm) • Milling/mortising spindle • Power: 7.0 kW • Speed range: 12,000–18,000 rpm • Cutting/milling/drilling spindle • Power: 7.0 kW • Speed range: 8,000–18,000 rpm • Multi-function aggregate included • Horizontal electro-spindle: • Type: Milling/mortising spindle • Power: 5.6 kW • Speed: 12,000–18,000 rpm • Tool holder: ER32 collet • Working area: • Nominal strokes: X 3350 mm, Y 200 mm, Z 180 mm • Two working fields: 2 × 1500 mm • Axes positioning speed: up to 70 m/min • Interpolation: Linear and circular on X/Y/Z (3 axes CN-controlled) • Workpiece support tables: • 4 + 4 tables on adjustable slides • Each table with 4 + 4 vertical pneumatic clamping cylinders • Frontal and lateral reference stops • Control system: • CAD-CAM control unit • Stand-alone electrical cabinet • Industrial PC with 17" touchscreen • Connectivity: Ethernet, USB, RS232 • Software: Supports NC CAM Suite TPAED132 • Safety and enclosure: • Full perimeter safety cabin • Automatic synchronized front safety door • Polycarbonate panels and safety interlocks • Power and standards: • Supply voltage: 400 V / 50 Hz • CE safety compliance

Condition: new, Year of construction: 2025, functionality: fully functional, 5 AXIS Machining Center 2131 X, Y, 2100 X 3100MM MOVEMENT RANGE Z AXIS RANGE 1000 MM FOR 5 AXIS HEAVY MACHINES HITECO 17KW S6 TILTING/ROTATION HEAD KIT AXIS RANGE A= +- 185°, C= +- 320°, ORBITAL K PLUS PX-2 15/12 63F NC HSK63 Knodpeu U Hmpjfx Ahasc OMRON AC SERVO DRIVE KIT OSAI OPENKEY INDUSTRIAL REAL TIME CONTROL SYSTEM EUCHNER HBA-103037 MANUAL MANIPULATOR CONTROL CABINET AIR CONDITIONING LINEAR MAGAZINE 18 POSITION 16 POSITION HSK63F TURRET MAGAZINE CORRECTION MAP RENISHAW TS27R TOOL MEASURING PROBE SKF AUTOMATIC CENTRAL SOLID GREASE LUBRICATION

Condition: new, Year of construction: 2026, Technical data Control system: Multi-axis real-time interpolator, with active trajectory forecasting, LAN communication, EtherCat, 2ms sampling time, optional RTCP tool end tracking, correction map. Working area: X 600 x 900 mm Y 3000 x 12000 mm Gate clearance and Z axis range: 100-1000 mm Drive system: Omron servo drives with EtherCat protocol, X, Y helical slats hardened ground in accuracy class 6, Z axis ball screw with accuracy class 5 Linear bearing: Trapezoidal rails, Bosch Rexroth 25 Speed: Up to 120 m / min Acceleration: Up to 1G Program resolution: up to 0.0001mm Positioning accuracy: 0.01 mm Gate drive: double-sided master / slave with gate angle correction Electrospindles: 2 kW to 36 kW powered by an inverter Knodsn Hq Huepfx Ahasc Tool taper: ISO30 lub HSK63 ER32 Maximum speed of the electro-spindle: 24,000 rpm (option 6,000, 40,000, 50,000) Construction: Steel welded, ribbed, stress relieved, precision machined Equipment options positioning and correction of the material by means of a camera, laser, measuring probe linear, revolver tool magazine cooling the tool with mist, chilled air 3D laser or touch scanner positioning databases additional angular / rotary axes drilling units, angular active oscillating knife, roller knife, drag knife, creaser, marker pen pneumatic clamping clamps chip extraction installation integration with an industrial robot Table type: T-slot: aluminum profiles, solid aluminum, solid steel; vacuum; hybrid, pneumatic clamping clamps

Condition: new, Year of construction: 2025, Dimensions (L/W/H) 3300x2100x2100 mm Weight 2000 kg Total power requirement 16 kw Knedpsv A Hbnofx Ahaec
