3D printer metal SLM
CONCEPT Laser M2 cusing

Name: CONCEPT Laser M2 cusing
Brand: CONCEPT Laser
Availability: InStock

Year of construction

2014

Condition

Used

Location

Bünde

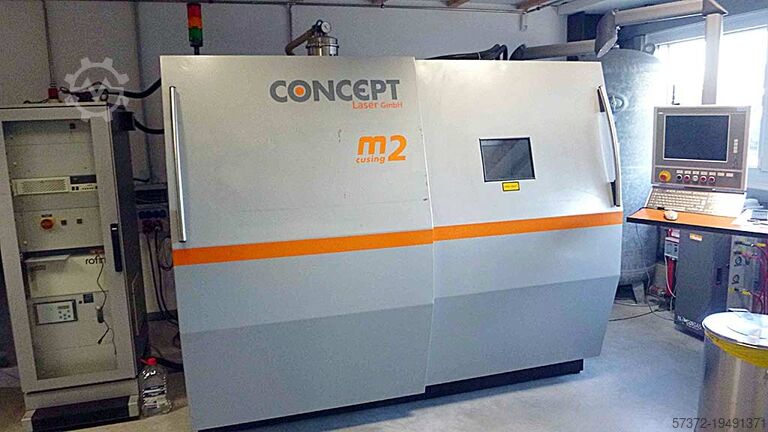

3D printer metal SLM CONCEPT Laser M2 cusing

Show map

Machine data

Machine type:: 3D printer metal SLM

Manufacturer:: CONCEPT Laser

Model:: M2 cusing

Year of construction:: 2014

Condition:: used

Price & Location

Seller location:: Winkelstrasse 32, 32257 Bünde, Germany

Call

Details about the offer

Listing ID:: A189-80436

Reference number:: 1082-12314

Update:: 01.10.2025

Description

working width 250 mm
working length 250 mm
work height max. 280 mm
laser capacity in Watt 400 Rofin
travel -z axis 10 - 1000 mm/s
positioning accuracy +/- 0,1 mm
repeating accuracy +/- 3,5 my
capacity 6,8 kVA
Required air-pressure 6-10 bar
Fpodpfx Afjwdiwyspon
Type of gas Schutzgas Stickstoff 5 bar
dimensions of the machine ca. 5,9 x 4,2 x 3 m
range L-W-H 2,44 x 1,63 x 2,36 m
weight 2 300 kg

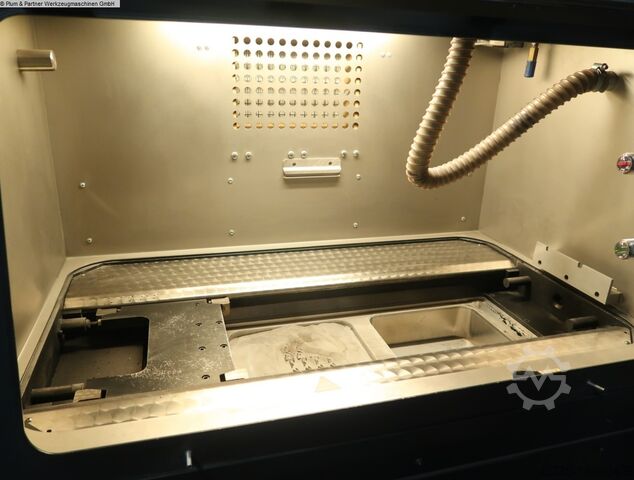

Little used Concept Laser M2 Cusing system for processing reactive and non-
reactive powder materials. Design of process chamber, handling station, powder
suction according to ATEX Directive II for flammable substances.
Materials: steel, stainless steel + aluminum. Supplementing titanium against
additional payment possible.
Dynamic coating system with 3 different wiper blades.
Peripherals and accessories:

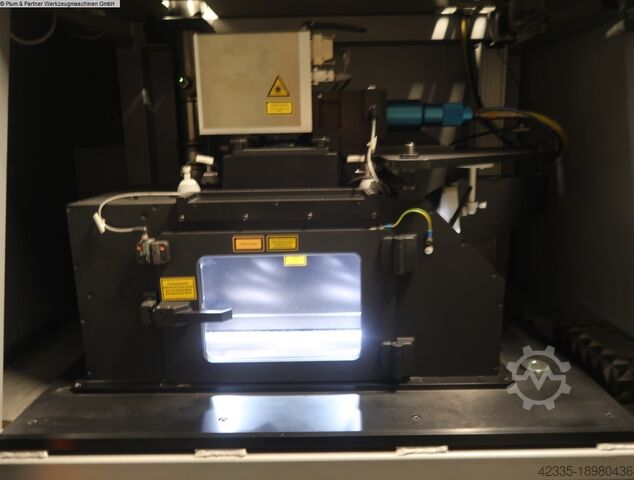

Rofin laser source - photo 4
Nitrogen generator (in the other room, photo 7)

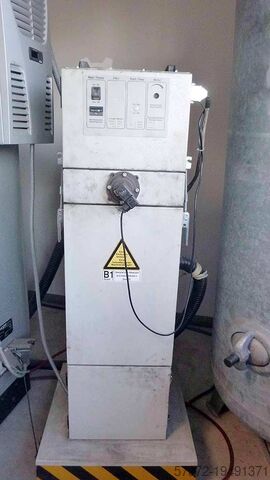

External filter including fan and operating hours counter: 10464 - Photo 8.
Storage container for the filter inserts.
Transport device with lift for powder loading - photo 9.

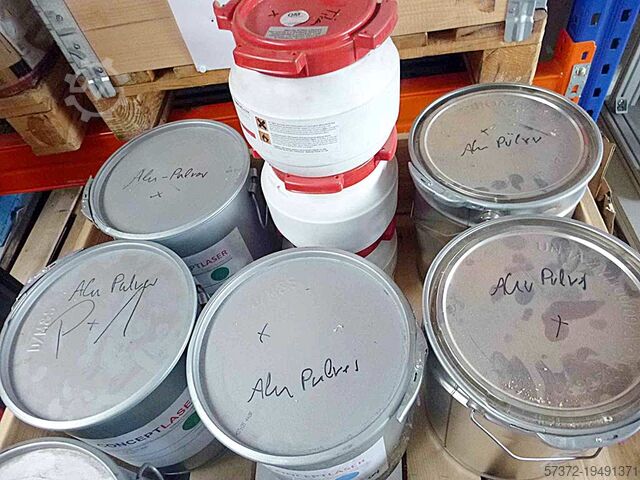

6 stainless steel powder charging containers.
Pneum. Vibrating sieve for attachment to the powder container.
Powder container rack for swap containers, dimensions 1.15 x 0.17 x 1.22 m -
photo 10.
Orange wet vacuum cleaner - photo 8.
Selling due to production change. Price at the time € 1/2 mio!
Vid 1: Machine outside, Vid 2: Machining - created on this machine, Vid 3:
Slide show Workpiece creation on this machine + accessories.
Machine dealer with own stock of 1600 m².
