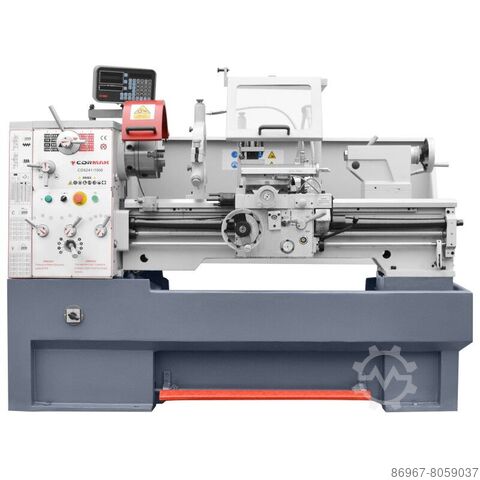

Universal lathe 410x1000

CORMAK 410x1000

One of our best-selling conventional lathes, this lathe can be used for many tasks such as turning internal and external surfaces as well as tapers, polishing, modular and DP threading, drilling and internal broaching.
Machine features

Lathes from this series can be used for many tasks such as turning internal and external surfaces, tapers turning, buffing, modular and DP threading, drilling and internal broaching
By default equipped with a 3 axes digital readout
Modern and precise spindle bearings
52 mm large spindle bore
Heavy bed made of cast iron, ground and inductively hardened
Gear wheels strengthened through hardening and precise grinding
Removable bridge allows for greater machining capabilities

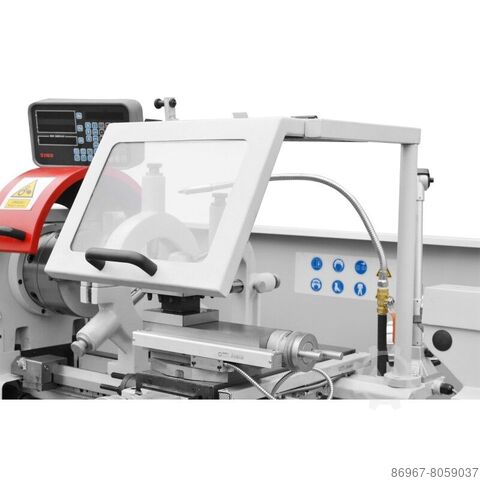

Protection guards compliant with the newest regulations
Machining accuracy: circularity deviation below 0.01 mm, cylindricality deviation no more than 0.02 mm for 200 mm long measurement, perfect surface finish
Equipped with a mechanical foot mechanical brake
Iedsiz Tf Sopfx Afpobc
Possibility of equipping the lathe with a ruler for turning tapers
Optional VARIO model with a smooth spindle speed adjustment and a digital indicator

Technical data

Swing over bed 410 mm

Swing over cross slide 255 mm

Swing over gap bridge 580 mm

Turning length in gap bridge 190 mm

Centres distance 1000 mm

Centres height 205 mm

Bed inductively hardened

Bed width 250 mm

Spindle bore diameter 52 mm

Spindle tip D1-6

Spindle mount MK6

Spindle speed (16) 45–1800 rpm

Maximum tool dimensions 20 mm×20 mm

Longitudinal feed range (17) 0.05–1.7 mm/turn

Transverse feed range (17) 0.025 – 0.85 mm/turn

Metric thread (42) 0.2–14 mm

Inch thread (45) 2–72 T.P.I.

Modular thread 0.3–3.5 M.P (18)

D.P. thread 8–44 D.P. (21)

Tailstock quill diameter 50 mm

Tailstock quill extension 120 mm

Tailstock quill tip MK 4

Digital readout in 3 axes

Main motor power (S1/S6) 2.2/3.3 kW

Flood coolant pump power 0.1 kW

Dimensions 1940×850×1320 mm

Weight 1590 kg

Default equipment

200 mm 3-jaw lathe chuck
250 mm 4-jaw lathe chuck
3 axes digital readout
Face plate
Steady rest
Follow rest
Spindle reducing sleeve
Dead centre
Change gears for the swing-frame of the gear train
Cooling system
Lighting installation
Thread indicator (gauge)
Lathe equipped with an electromechanical foot brake compliant with EC regulations
Chips container
Set of handling tools
Protective guards compliant with the newest EC regulation
User manual
EC declaration of conformity
Factory new machine under full warranty

Factory new machine, under warranty
