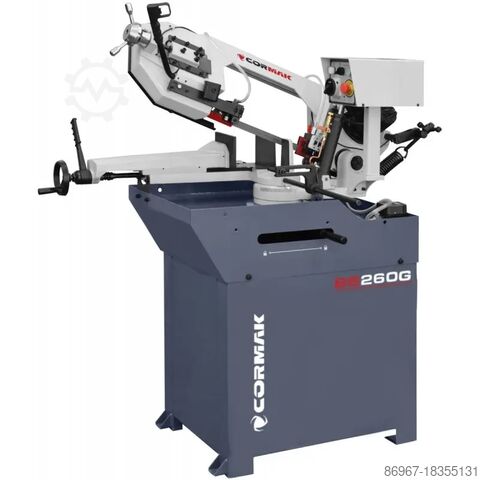

Band saw machine

CORMAK BS260G

The CORMAK BS 260G band saws, due to being equipped with a hydraulic cylinder, a cooling and an arm swivelling up to 60°, together with blades from renowned German Röntgen company, are used commonly in ironworking where precision, quality and cutting speed are important.

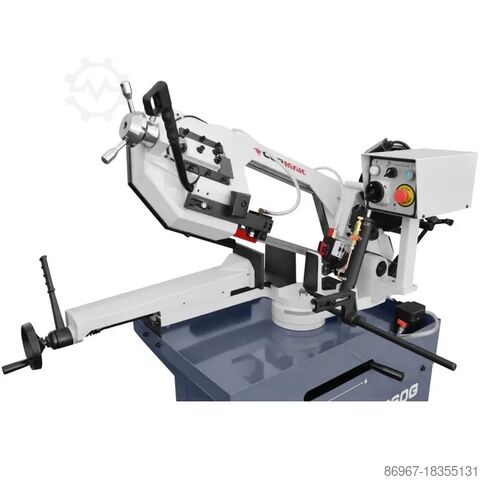

Horizontal band saw with a swivelling arm for cutting metals, allows for cutting in plane perpendicular to the axis of material cut and at any angle from 0 to 60º. Material for cutting can be fed manually or by any mechanical feeding device, with automatic tool feed. Band guides are equipped with dedicated carbide plates and bearings. This has a huge impact on band guiding, its durability, cut straightness, cutting accuracy and quality.

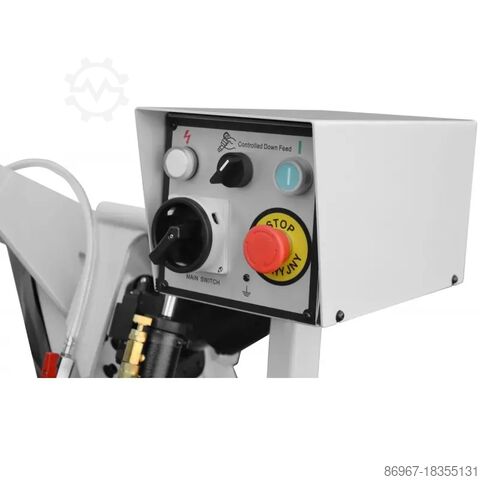

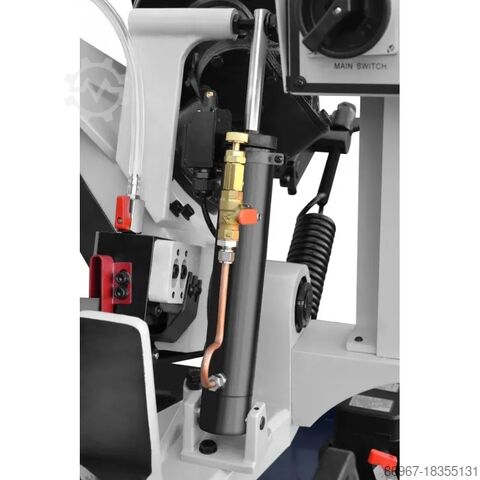

Machine's arm is made of profiled CAST IRON. Control panel is located by the arm. The drive from the electric motor directed to the cutting band driving wheel is transmitted by a motor with worm drive. The cutting band is tensioned on two cast iron wheels with a manual tightener and guided by adjustable rolling and linear set of carbide guides. A separate flood coolant container with an electropump is inside. The arm lowering speed (the cutting speed) is adjusted with a hydraulic cylinder. The feed speed is controlled by the control panel. There are 2 cutting band speeds to choose from: 36 and 72 m/min. In rest arm position (after the cutting process) the cutting band drive is switched off automatically. Safety is ensured with cutting band guards and microswitches stopping the motor after cutting cycle is finished or after any of the guards are opened; additional protection consists of automatic switch-off of the band saw in case the cutting band breaks.

Technical data
Cutting band saw dimensions
2455×27×0.9 mm

Band tension

mechanical (manual)

Band speed

36, 72 m/min

Feed speed

0–50 m/min (stepless feed)

Arm lowering control

stepless – hydraulic cylinder

Vice base height

900 mm

Power supply

3-phase 400V

Motor power

1.1 kW

Weight
Crsdjvuf S Nspfx Agmeh

216 kg

Warranty

12 months

Manual

yes

CE declaration

yes



Angle




0º

ø230

260×150

225×225

45º

ø165

180×130

165×165

60º

ø105

100×90

110×110

*Please note that machine is sold without CEE connector by default, since there are many different types of it. If you would like to receive it with the machine, please write it to the seller before making a purchase/during order proceeding.
