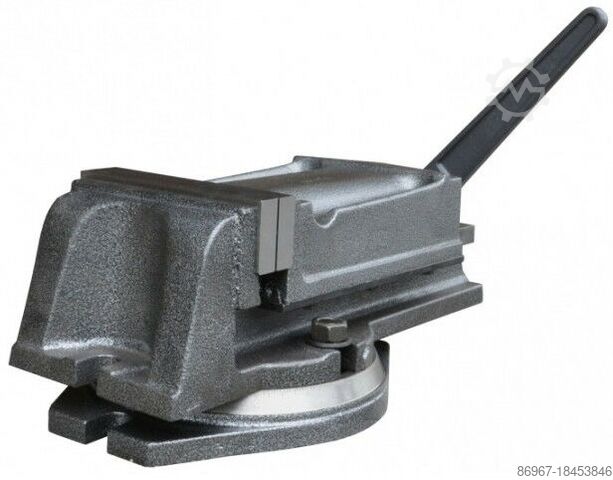

160x125 mm Machine Vice

CORMAK QH160

Machine vice QH160 160x125 mm – precise and reliable clamping for high-force machining applications

Machine vices from the QH series are robust and reliable solutions designed for professional metalworking applications. The QH160 model, with a 160 mm jaw width and 125 mm maximum opening, is ideal for operations requiring secure and precise workpiece fixation. Thanks to its high-quality cast iron construction and a 360° swivel base with graduated scale, the vice provides versatility, repeatability, and high efficiency in everyday industrial use.

Main advantages of the QH160 machine vice
360° swivel base with 1° graduation – enables precise positioning of the workpiece at the required angle.
High-quality cast iron construction – the body and movable jaw provide excellent rigidity and resistance to deformation.
Lead screw protected against chips and contaminants – ensures long service life and reliable operation.
High clamping force up to 3000 kg – allows secure fixation of larger and heavier workpieces.
Removable swivel base – enables the vice to be used as a fixed version when maximum rigidity is required.
Construction and technology

The QH160 machine vice has been designed for intensive operation in demanding industrial environments. The cast iron body provides exceptional stability, while precisely machined surfaces guarantee accurate workpiece positioning. Replaceable jaw inserts require precise machining after installation to maintain tolerances in accordance with technical specifications.
Isdpjvxgm Ajfx Aaystk

Precision and work efficiency

The combination of a rigid construction, wide jaw opening, and high clamping force allows efficient and accurate machining of various materials. The integrated angular scale enables the operator to position the vice precisely within a 360° range, significantly reducing setup time and improving overall productivity.

Applications

The QH160 machine vice is suitable for use in:

machining plants,
tool rooms,
metalworking workshops,
workstations equipped with drill presses, milling machines, and grinders.

It is suitable for both single-piece production and serial manufacturing wherever precise and stable workpiece clamping is required.

Standard equipment
Swivel base with 360° graduated scale
Mounting holes
Jaw inserts
