CORMAK S200R Manual Metal Band Saw

The CORMAK S200R metal band saw is designed for both single-piece and series production. With the ability to perform angled cuts from -45° to +60°, it is an ideal solution for cutting pipes, profiles, and solid materials. The construction based on a massive cast-iron arm and a precise blade guidance system ensures high cutting accuracy and repeatability. The feed is gravity-controlled by a hydraulic cylinder with smooth descent adjustment, providing a controlled and efficient cutting process.

Main Advantages of the Machine
Solid cast-iron construction increases machine durability and cutting accuracy.

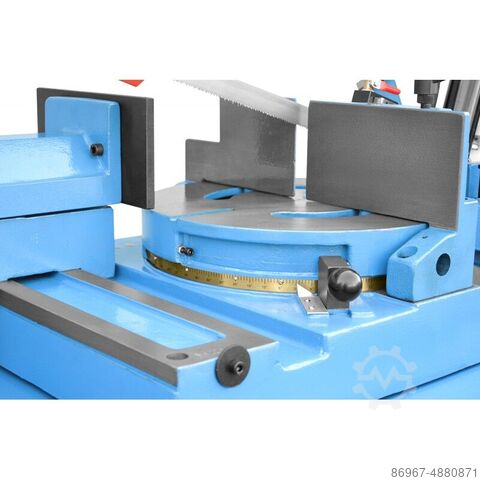

Wide angle cutting range from -45° to +60° thanks to the rotating arm design.
Blade guides with carbide inserts and bearings ensure straight cutting and extended blade life.
Gravity feed controlled by a dual-chamber hydraulic cylinder provides smooth and precise cutting.
High level of operator safety thanks to limit switches, micro-switches, and an emergency stop button.
Automatic stop after completing the cut and blade break protection function improve safety and reliability.
Construction and Technology

The machine is built on a rigid steel base equipped with an integrated coolant tank and circulation pump. The saw arm is manufactured from a single cast-iron casting, significantly improving stability and vibration damping during operation.

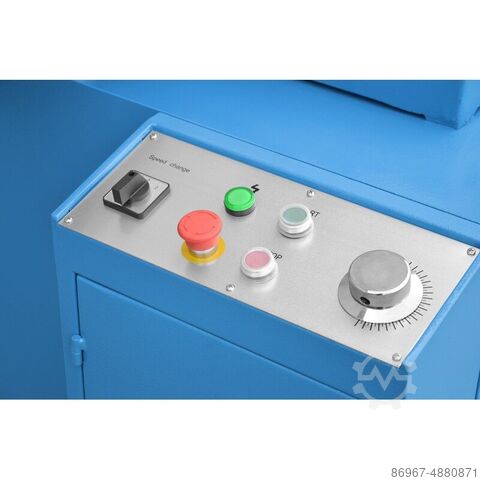

The drive system uses a three-phase motor with two blade speeds (36/70 m/min) selectable from the control panel. The arm inclination of 25° relative to the base extends blade life and improves cutting quality.

Precision and Work Efficiency

High cutting accuracy is achieved through the cooperation of carbide blade guides and rolling bearings, ensuring precise blade alignment. Maintaining optimal blade tension improves cutting efficiency and reduces the risk of failures.

The automatic stop function after completing the cut eliminates operator errors and increases workplace safety. The combination of a rigid structure, precise blade guidance, and controlled hydraulic feed guarantees reliable performance in demanding applications.

Applications

The CORMAK S200R metal band saw is ideal for:

industrial production plants,
metalworking and fabrication workshops,
steel construction companies,
maintenance departments.

The machine enables precise cutting of:

Fpsdpfefy Ttiex Akhjk
carbon steel,
stainless steel,
tool steel,
closed profiles,
solid metal sections.
Standard Equipment
Mechanical quick-clamping vice
Hydraulic cylinder with smooth descent adjustment
Blade cleaning brush
Coolant pump with closed circulation system
Length stop with measuring scale
Optional Equipment
Material feeding roller system
Technical Specifications
Parameter Value
Machine type Manual metal band saw
Cutting method Gravity feed
Blade speed 36 / 70 m/min
Cutting angle range -45° to +60°
Vice type Manual
Saw blade dimensions 27 × 0.9 × 2910 mm
Motor power 1.8 kW
Vice base height 890 mm
Minimum cutting diameter Ø 5 mm
Minimum material length in vice 30 mm
Machine dimensions (L × W × H) 1600 × 800 × 1400 mm
Weight 500 kg
