Dust and chip extraction

CORMAK SCV11300TC

SCV11300TC VIBER BIG-BAG – Advanced Industrial Dust Extraction System with Dual BIG-BAG Waste Collection

The SCV11300TC VIBER BIG-BAG is a modern industrial dust extraction system designed for intensive operation in woodworking and manufacturing facilities. The unit stands out with its use of two high-capacity BIG-BAG collection bags, significantly improving waste management efficiency. Equipped with advanced filtration and protection systems, it provides effective extraction of sawdust, dust, and chips even during long-term continuous operation.

Main Advantages of the Machine
Two BIG-BAG collection bags – a unique market solution that increases waste storage capacity.
Iodpjudav Njfx An Heif
VIBER system – automatic filter cleaning ensures constant extraction performance.
TC housing – fully enclosed, sound-insulated construction reducing noise and vibrations.
DAMAGE PROTECT system – mechanical protection preventing rotor damage caused by larger particles.
REHEAT system – heat recovery from exhaust air, improving the energy efficiency of the facility.
Design and Technology

The SCV11300TC VIBER BIG-BAG is equipped with a reinforced 11 kW motor and a precisely balanced rotor, ensuring stable, reliable operation and high extraction performance of 11,300 m³/h. The housing has been designed for effective acoustic insulation and maximum suction system tightness, resulting in cleaner and warmer air in the workplace.

Precision and Work Efficiency

Thanks to 64 polyester filters with filtration efficiency down to 5 microns, and the possibility of installing an additional HEPA filter, the unit provides safe and highly effective air purification. The high suction speed (28–32 m/s) enables efficient removal of chips and sawdust from multiple workstations simultaneously.

Applications

The SCV11300TC VIBER BIG-BAG is an ideal solution for:

woodworking plants,
furniture factories,
operators of panel saws, edge banders, and sanding machines,
industrial installations requiring a central dust extraction system.
Standard Equipment
VIBER system – automatic filter cleaning
Two BIG-BAG collection bags

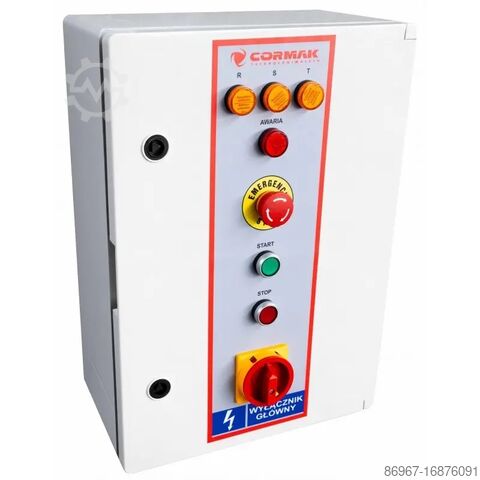

Control cabinet with operator panel
TC housing with acoustic insulation
DAMAGE PROTECT protection system
Optional Equipment
HEPA filter for extremely fine particles
BIG-BAG filling level sensors
Automatic fan reverse system
Technical Specifications
Parameter Value
Power supply voltage 400 V
Motor power 11 kW
Motor speed 3000 rpm
Filter type Polyester, 5 microns / filter category "G"
Filter dimensions Ø160 × 960 mm
Number of filters 64 pcs
Filtration area 30 m²
Inlet diameter 350 mm
Outlet diameter 500 mm
Extraction capacity 11,300 m³/h
Negative pressure 3000 Pa
Air velocity 40 m/s
Noise level 80 dB
Number of BIG-BAGs 2 pcs
BIG-BAG capacity 1250 L each / 2500 L total
Dimensions (L × W × H) 3250 × 1100 × 3700 mm
Weight 820 kg
