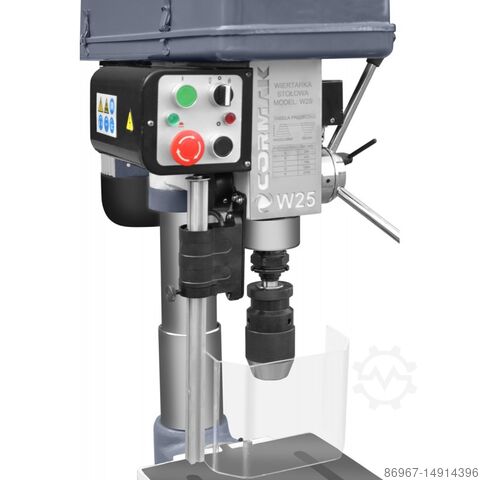

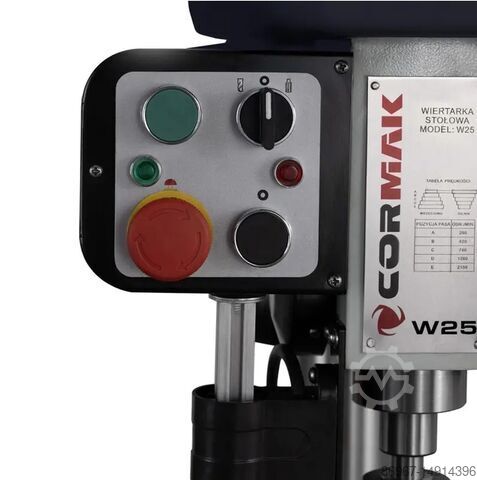

Bench drill

CORMAK W25

The W25 table drill is a machine that combines power and precision. It is characterized by a solid, rigid structure, high efficiency and precision. The device is equipped with a swivel work table with adjustable height and threading functions with automatic change of the direction of spindle rotation.

Machine description

Threading function
Automatic change of the direction of spindle rotation during threading
Manual change of direction of rotation using a foot lever
High spindle stiffness
Setting the required drilling/tapping depth
The drive is transmitted via a belt transmission
Height-adjustable work table, tiltable from -45° (left) - +45° (right), with the ability to rotate 360° on the column

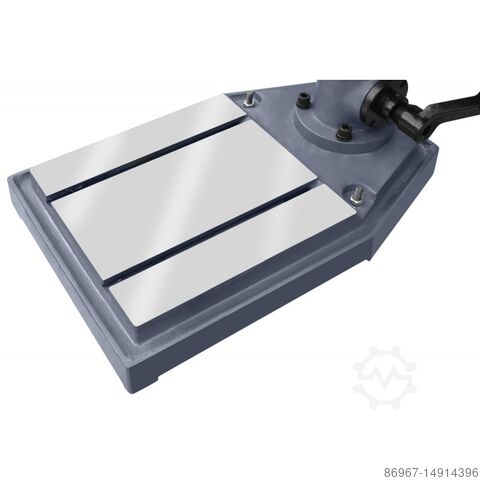

The base is equipped with 14 mm wide T-slots
The belt transmission cover is equipped with a safety limit switch

Technical parameters
Max. drilling diameter 25 mm
Max. spindle quill extension 125 mm
MK3 spindle cone
Spindle speeds 290, 420, 740, 1260, 2150 rpm
Distance of the spindle axis from the column 240 mm

Column diameter
Csdpforif I Rjx Abwshc
100mm
Table dimensions 280x300 mm
Base dimensions 590x375 mm
Max. distance of the spindle tip to the table 367 mm
Max. distance of spindle tip to base 630 mm
Table rotation range in the horizontal axis ±45°
Table rotation range around the column is 360°
The diameter of the quills is 50mm
Motor power 1100W / 400V
Dimensions 800 x 400 x 1100mm
Weight 165 kg
Included

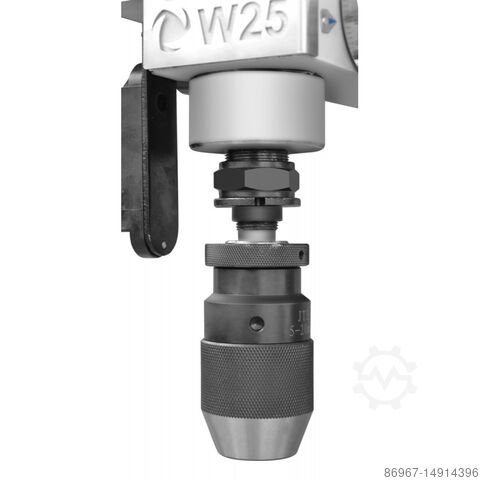

B22 self-clamping drill chuck 5-20mm
MK2 drill chuck shank
