Heavy load moving system skate set 12TON

CORMAK WL6+WF6 (udźwig 12 ton)

Professional Machinery Moving Roller Set WL6 + WF6 — Reliable Heavy-Duty Transport Solution

The WL6 + WF6 professional machinery moving roller set is a reliable solution designed for moving heavy machines, industrial equipment, and structural components. Thanks to its robust construction, high load capacity, and polyurethane rollers, this set ensures safe and efficient transport in industrial plants, workshops, and warehouses.

A key advantage of this system is the ability to maneuver heavy loads even in limited spaces, while minimizing the risk of damaging the floor surface or transported equipment.

Main advantages of the WL6 + WF6 roller set
High static and dynamic load capacity – up to 6000 kg static load and 3600 kg dynamic load, allowing safe movement of very heavy equipment.
Polyurethane roller surfaces – protect both the floor and transported loads against damage.
Low loading height (110 mm) – makes it easier to position the rollers under equipment without requiring significant lifting.
Compact construction – provides excellent control and easy maneuvering in confined areas.
Stable positioning and precise movement – thanks to optimized trolley spacing and support points (1 point for WL6, 2 points for WF6).
Design and technology — optimized for industrial loads

The components of the WL6 and WF6 sets have been designed for maximum durability and safe operation under demanding industrial conditions. The transport rollers are manufactured from wear-resistant materials, ensuring long service life even during intensive use.

Main components of the set:

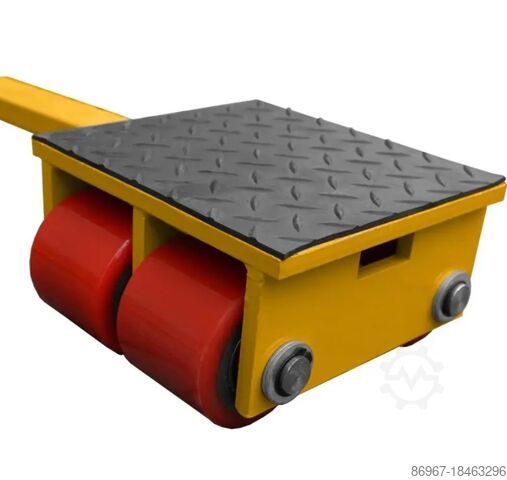

80 × 80 mm rollers – made of polyurethane, providing smooth and quiet operation even on uneven surfaces.

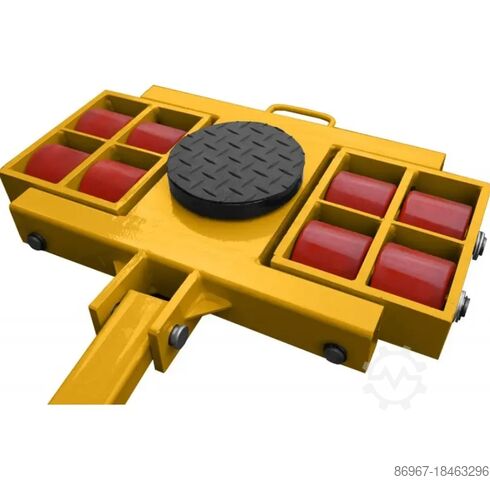

Strong load-bearing platforms – with support surfaces:

Ø155 mm for WL6
200 × 180 mm for WF6

These dimensions ensure optimal load distribution and transport stability.

1300 mm connecting bar – allows flexible adjustment of the trolley spacing from 450 to 1700 mm.
1080 mm steering handle – with a steering angle of ±90°, providing increased control during movement.
Precision and efficiency — safety and time savings

The properly designed WL6 + WF6 roller system minimizes the risk of load shifting or tilting during transport. High-quality polyurethane rollers reduce rolling resistance, which decreases the force required to move heavy machinery.

The operator gains full control over the relocation process, while installation and transport work can be completed faster and more efficiently.

Standard equipment
1 × WL6 transport roller set
1 × WF6 transport roller set
1300 mm connecting bar
Steering handle

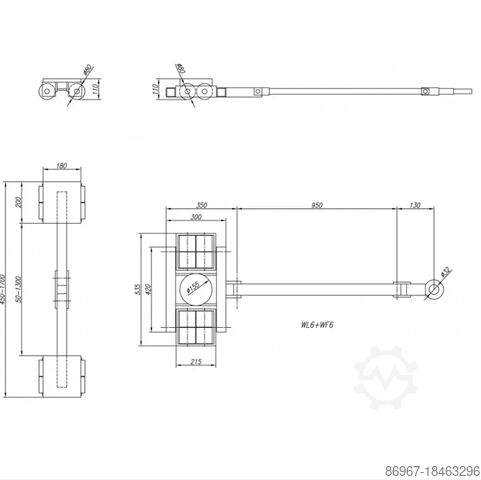

Technical specifications — WL6
Parameter Value
Static load capacity 6000 kg
Dynamic load capacity 3600 kg
Roller size 80 × 80 mm
Number of rollers 8
Ksdpovxrwajfx Akwjdt
Loading height 110 mm
Load-bearing surface Ø155 mm
Support points 1
Steering handle length 1080 mm
Steering angle ±90°
Dimensions (L × W) 350 × 535 mm
Technical specifications — WF6
Parameter Value
Static load capacity 6000 kg
Dynamic load capacity 3600 kg
Roller size 80 × 80 mm
Number of rollers 8
Loading height 110 mm
Load-bearing surface 200 × 180 mm
Support points 2
Connecting bar length 1300 mm
Adjustable trolley spacing 450–1700 mm
