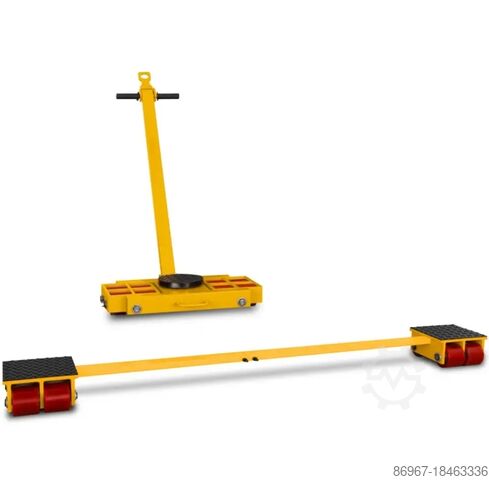

Heavy load moving system skate set 18TON

CORMAK WL9+WF9 (udźwig 18 ton)

Transport Roller Set WL9 + WF9 – Professional System for Moving Heavy Loads

The WL9 + WF9 transport roller set is a professional system designed for the safe movement of heavy loads in industrial plants, production halls, logistics centers, and workshops. With a total load capacity of up to 18,000 kg, this set is ideal for the installation and relocation of heavy machinery, steel structures, and industrial equipment. Its robust construction and high-quality polyurethane treads ensure safe operation, quiet movement, and protection of transport surfaces.

Main advantages of the WL9 + WF9 transport set
High working load capacity – static load capacity of up to 9000 kg for each unit (WL9 and WF9), providing a total capacity of 18 tons.
Polyurethane-tread rollers – resistant to wear and damage, leaving no marks on the floor surface.
Low loading height – only 110 mm, allowing the platform to be positioned under the load without the need for significant lifting.
Smooth and quiet operation – thanks to flexible polyurethane treads and a precise roller system with Ø80 mm diameter.
Stability and safety – ensured by properly designed load-bearing surfaces and support point arrangement.
Adjustable trolley spacing – the WF9 connecting bar allows adjustment of the width within a range of 0–640 mm.
Construction and technology – durability and functionality in one set

The WL9 + WF9 set consists of a transport platform (WL9) and a support trolley (WF9), both designed for reliable operation in demanding industrial environments. The construction is based on reinforced steel components and precisely mounted rollers, ensuring even load distribution and stable movement of transported objects.

Component characteristics
WL9 – a transport platform with one support point and a load-bearing surface of Ø160 mm. Equipped with a 1000 mm long steering handle, allowing precise maneuvering of the load.
WF9 – a transport trolley with two support points and a large load-bearing surface of 200×180 mm. Includes a connecting bar that allows adjustment of the spacing according to the dimensions of the transported object.
Ø80×70 mm rollers – used in both elements, made of durable polyurethane providing long service life and effective vibration damping.
Standard equipment
1 × WL9 transport platform
1 × WF9 transport trolley
Kodpfx Aovxrxkokwsdt
1500 mm connecting bar (for trolley spacing adjustment)
Steering handle (WL9, length 1000 mm)
Technical specifications – WL9
Parameter Value
Static load capacity 9000 kg
Dynamic load capacity 5400 kg
Roller size Ø80×70 mm
Number of rollers 8
Loading height 110 mm
Load-bearing surface per element Ø160 mm
Support points 1
Handle length 1000 mm
Dimensions (L × W) 540×440 mm
Technical specifications – WF9
Parameter Value
Static load capacity 9000 kg
Dynamic load capacity 5400 kg
Roller size Ø80×70 mm
Number of rollers 8
Loading height 110 mm
Load-bearing surface per element 200×180 mm
Support points 2
Connecting bar length 1500 mm
Trolley spacing width 0–640 mm
