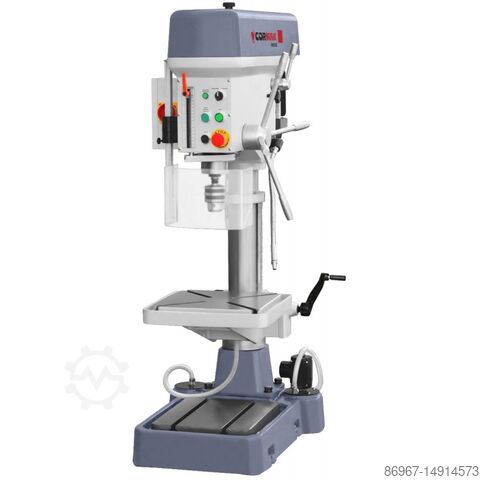

Bench drill

CORMAK WS32BC

The CORMAK WS32BC table drill is a solid tool with high spindle stiffness. It has automatic left-hand rotation, large spindle stroke and a clear control panel. Constructed from the highest quality seasoned castings, it offers a powerful engine and CE certification. The maximum drilling diameter in steel is 32 mm and the maximum threading diameter is M24. It has 8 ROTATION SPEEDS with a speed range of: 140, 250, 380, 500, 580, 850, 1250, 1960 rpm. Equipped with an MK3 spindle mount, it ensures stability and easy tool replacement. Perfect for professional and hobby use.
Characteristics of the WS32BC bench drill:
SPINDLE AUTOFEED
High spindle stiffness
Threading by automatic switching of left-hand rotation
IT HAS 8 ROTATION SPEEDS
ROTATION SPEED RANGE: 140, 250, 380, 500, 580, 850, 1250, 1960 rpm
Left rotation switch
The headstock, column, table and column base are made of the highest quality seasoned castings
Spindle and gear shafts made of hardened and heat-treated steel
High engine power
Large spindle stroke
Clear control panel
U-type spindle cover with limit switch, CE compliant
Manually lifted work table with 360° rotation and mounting grooves
The belt transmission cover is equipped with a safety limit switch
CE certificate
Adjustable drill chuck with key and Morse cone mounting
A wedge for knocking out a cone

Technical parameters of the WS32C metal bench drill
MAX. DRILLING DIAMETER IN STEEL
32mm
MAX. THREADING DIAMETER IN STEEL
M24
COLUMN DIAMETER
100mm
SPINDLE TRAVEL
150mm
SPINDLE-COLUMN DISTANCE
265mm
MAX. SPINDLE-TABLE DISTANCE
390mm
MAX. SPINDLE-BASE DISTANCE
745mm
SPINDLE MOUNTING
MK3
ROTATION SPEED RANGE
140, 250, 380, 500, 580, 850, 1250, 1960 rpm
NUMBER OF ROTATIONAL SPEEDS
8
TABLE DIMENSIONS
380 x 400 mm
BASE DIMENSIONS
645 x 470 mm
MACHINE HEIGHT
1370mm
ENGINE POWER
1.1 kW
POWER
400V
NET WEIGHT
230 kg
Cedperigaqsfx Abwshc
DIMENSIONS
900 x 500 x 1400 mm
