Milling and drilling

CORMAK XZ 6350ZB

Milling and drilling machine of uncomplicated design warrants long-term reliability. This machine is equipped with a horizontal spindle and vertical head. XZ 6350ZB are also equipped with spindle autofeed.

Machine features

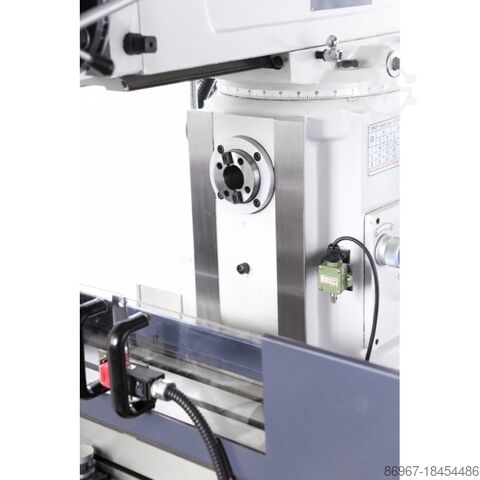

Equipped with vertical head and horizontal spindle
ISO 40 tool mount taper
Milling machine with X and Y axes feed, and rapid Z-axis setting feed
Extendable vertical head spindle
Mechanical feed in 3 ranges and automatic threading capability
Vertical 0–90o swivel head
Extendable swivel upper beam

Technical data

Table dimensions
1270×260 mm

Longitudinal table travel
750 (700) mm

Transverse table travel
270 (220) mm

Vertical travel from table to column
340 mm

Number of T-slots in table
5

T-slots distance
50 mm

Table load capacity
200 kg

Vertical head
swivel 90°

Spindle
extendable L – 120 mm

Spindle taper
ISO 40

Spindle mechanical feed
0.08-0.15-0.25 mm/rotation

Verical spindle speed
90–2000 rpm

Horizontal spindle speed
40–1300 rpm

Longitudinal feed speed range
24–402 mm/min

Transverse feed speed range
24–402 mm/min

Rapid feed
quick adjustable for Z axis

Upper ram extension
460 mm

Distance from vertical spindle to column
260–740 mm

Distance from vertical spindle to table
100–440 mm
Hedpevxg T Aefx Afpjfn

Distance from horizontal spindle to table
0–300 mm

Digital display
for 3 axes

Main motor power
2.2 kW

Dimensions
1520×1289×2150 mm

Weight
1420 kg
