Pillar drill

CORMAK Z5020 VARIO 400V

CORMAK Z5020 Vario / 400V Floor Drill Press – High-Performance Metal Drilling Machine

The CORMAK Z5020 Vario / 400V floor drill press is a high-quality metal column drilling machine designed for demanding industrial users. Combining a robust construction, stepless spindle speed control, and large spindle travel, the machine is perfectly suited for precision machining of steel, cast iron, aluminium, and other structural materials.

Main Advantages of the Machine
Stepless spindle speed adjustment from 180–2000 rpm – allows precise parameter selection according to the material type and tool diameter.
Large spindle travel of 150 mm – enables deep hole drilling without repositioning the workpiece.
Tilting worktable ±45° – allows angled drilling operations and increases application flexibility.
Solid 80 mm diameter column – ensures high structural rigidity and effective vibration damping during intensive operation.

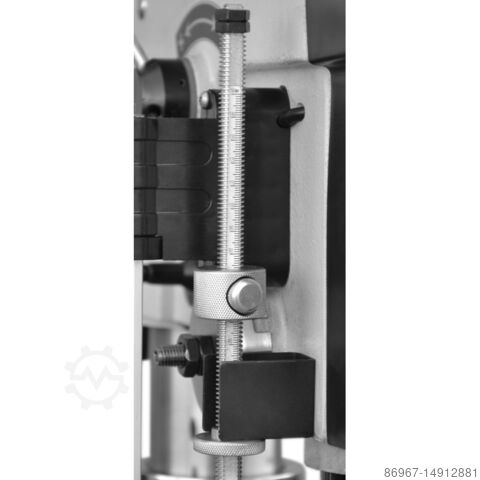

Precision drilling depth stop with scale – provides repeatability and full control in serial production processes.
Integrated LED work light – improves visibility of the machining area in all working conditions.
T-slotted table and base – simplify mounting of vices and technological accessories.
Design and Technology – A Reliable Construction for Durability and Functionality

The CORMAK Z5020 Vario column drill press has been designed with maximum stability and operator comfort in mind. The machine body is made of high-quality cast iron components, providing excellent vibration damping and resistance to deformation.

The drive system uses a durable belt transmission, ensuring quiet and trouble-free operation. The 356 × 356 mm worktable provides a large machining surface for various workpiece sizes, while its vertical adjustment range of 600 mm allows processing of taller components.

Precision and Working Efficiency – Designed for Demanding Machining Processes

The CORMAK Z5020 Vario metal drilling machine is equipped with a powerful 1.5 kW, 400 V three-phase motor. This drive system provides stable torque, enabling efficient operation even when drilling larger diameters.

The stepless spindle speed adjustment allows quick adaptation to different materials, while the rigid construction minimizes vibrations. This directly improves hole quality, reduces tool wear, and increases overall production efficiency.

Standard Equipment
Ksderidnvopfx Akwedt
Tilting worktable with T-slots
Base with mounting slots
LED work light
Graduated drilling depth stop
Stepless spindle speed adjustment
Technical Specifications
Parameter Value
Maximum drilling diameter 25 mm
Maximum chuck capacity 16 mm
Spindle-to-column distance 215 mm
Spindle taper MK3
Spindle travel 150 mm
Column diameter 80 mm
Motor 400 V / 50 Hz / 1500 W
Gear transmission Yes
Base dimensions 580 × 415 mm
Worktable dimensions 356 × 356 mm
Overall height 1710 mm
Spindle speed range 180–2000 rpm
Table vertical adjustment range 600 mm
Packed dimensions 1510 × 690 × 256 mm
Weight 95 kg
