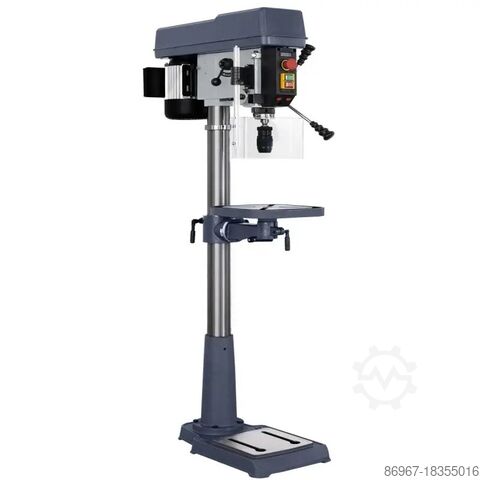

Pillar drill

CORMAK Z5020BF/230V VARIO

CORMAK Z5020 BF Vario Column Drill Press is a versatile and modern metal drilling machine designed for intensive operation in industrial plants, locksmith workshops, and maintenance departments. The machine provides excellent stability, precision, and high working comfort thanks to stepless spindle speed adjustment and an ergonomic design.

Main advantages of the machine

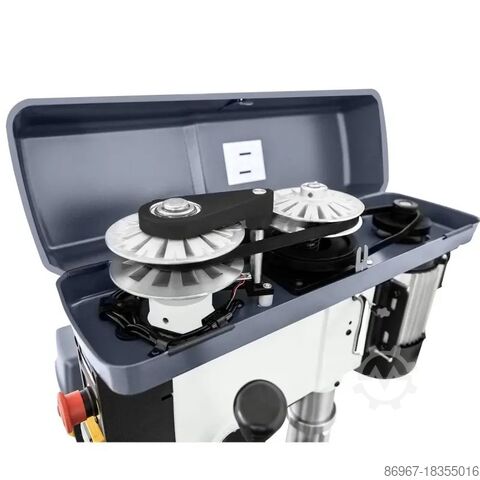

Stepless spindle speed adjustment – a range of 190–2700 rpm allows optimal adjustment of parameters to the type of material being processed.
Rigid machine body construction – minimizes vibrations and improves drilling accuracy.
Height-adjustable worktable – precise rack adjustment and the possibility of tilting within a range of ±45°.

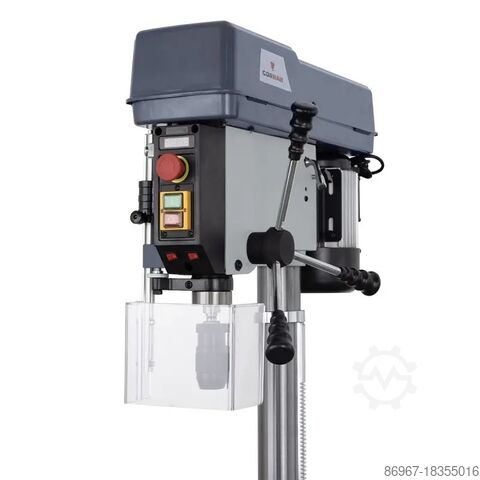

Electronic speed indicator – provides real-time control of drilling parameters.

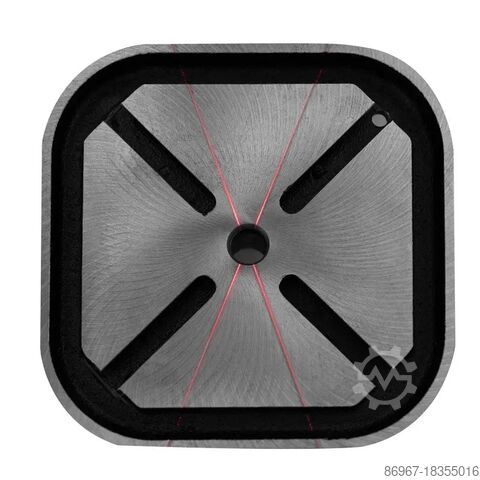

Laser pointer and LED lighting – facilitate tool positioning and improve visibility of the working area.
100 mm machine vice included – the machine is ready for operation immediately after setup.
Construction and technology

The CORMAK Z5020 BF Vario column drill press is equipped with a stable 70 mm diameter column and a wide 480 × 290 mm base, ensuring excellent support and rigidity of the entire structure. The standard MK2 spindle features a 120 mm stroke, allowing deep drilling without the need to reposition the workpiece. The worktable design enables rotation and tilting, allowing the operator to precisely adjust the position of the workpiece according to the machining operation.

Precision and work efficiency

The powerful 750 W motor and maximum drilling capacity of 20 mm enable effective machining of most metal materials. The electronic speed indicator and drilling depth stop provide full control over the process. The long column and large table height adjustment range (660 mm) allow machining of taller workpieces and the use of tools with larger reach.

Applications

The Z5020 BF Vario model is a metal column drill press recommended for:

mechanical and locksmith workshops,
maintenance departments,
Bodpevuf Ikofx Afwsdg
light and medium industry,
prototype work and single-piece production.
Standard equipment
100 mm machine vice
Laser drilling pointer
LED work light
Electronic speed indicator
Three-arm spindle feed lever
Drilling depth stop
Worktable with rack height adjustment
Technical specifications
Parameter Value
Maximum drilling diameter 20 mm
Spindle speed range 190–2700 rpm
Power supply 230 V
Spindle taper MK2
Maximum spindle stroke 120 mm
Spindle-to-column distance 170 mm
Spindle-to-base distance 1060 mm
Table height adjustment range 660 mm
Column diameter 70 mm
Table dimensions 280 × 280 mm
Base dimensions 480 × 290 mm
Motor power 750 W
Machine height 1650 mm
Weight 75 kg
