Bench drill

CORMAK Z7016 VARIO

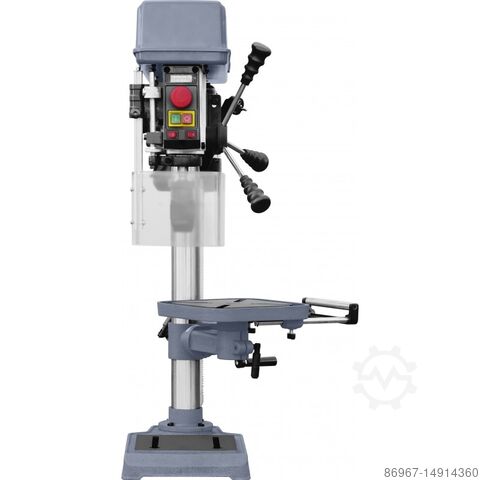

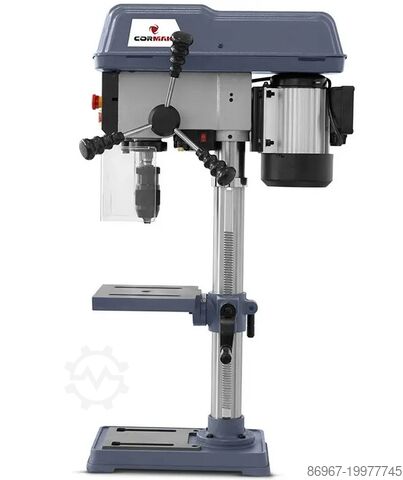

CORMAK Z7016 Vario Bench Drill Press for Metal – Compact and Functional Precision Drilling Machine

The CORMAK Z7016 Vario metal bench drill press is a compact and functional column drilling machine designed for precise drilling operations in professional workshops and industrial applications. Thanks to stepless speed adjustment, a robust construction and versatile equipment, this model provides maximum control over the drilling process and high work efficiency.

Main advantages of the machine

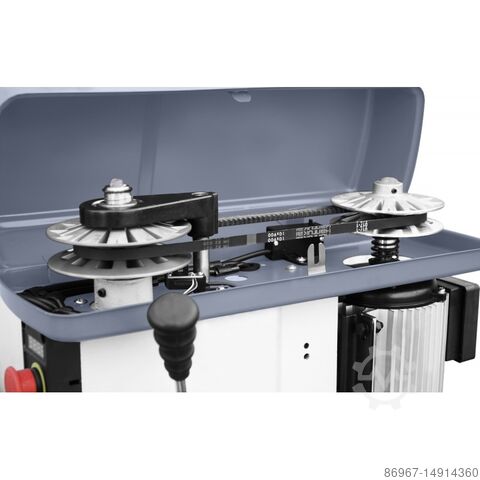

Stepless speed adjustment – a range of 350–2400 rpm allows optimal adaptation to the processed material.
Solid cast iron construction – ensures high rigidity and reduces vibrations during operation.

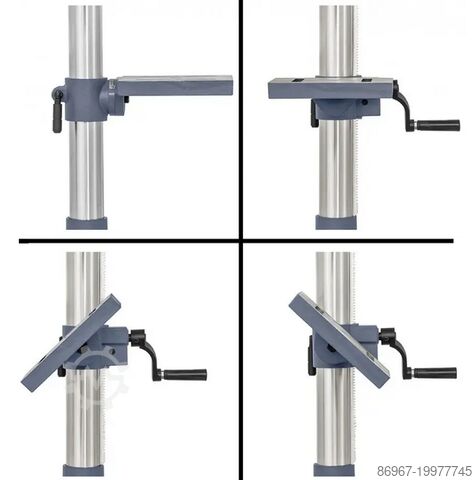

Height and angle adjustable worktable – tiltable from -45° to +45° with rack-and-pinion height adjustment.

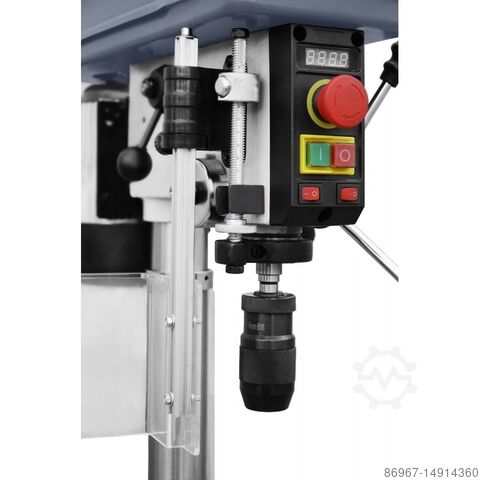

Laser pointer and LED lighting – provide maximum drilling accuracy and improved operator comfort.
Electronic speed display – enables real-time control of operating parameters.
65 mm vice included – the machine is ready for operation straight after unpacking.

Construction and technology

The Z7016 Vario metal bench drill press is built on a solid Ø60 mm column and a rigid cast iron base measuring 400 × 232 mm. The machine body and worktable are made from precisely machined castings. The MK2 spindle taper allows the use of a wide range of tools, while the 90 mm spindle stroke enables machining of deeper holes. With an overall height of only 910 mm, the machine is an ergonomic and mobile workshop solution.

Precision and work efficiency

Equipped with a 550 W (S1) / 700 W (S6) motor, the CORMAK Z7016 Vario column drill press allows efficient drilling in metal up to 16 mm in diameter. The stepless speed adjustment eliminates the need to change belt positions, significantly reducing machine setup time. The ergonomic three-arm feed handle, depth indicator and precise spindle guidance system ensure high repeatability and accuracy of drilled holes.

Applications
Hsdjrif H Ejpfx Aaiefk

The Z7016 Vario metal bench drill press is recommended for:

locksmith and service workshops,
maintenance departments,
technical schools,
small production lines and prototyping workshops.
Standard equipment
65 mm machine vice
Laser drilling pointer
LED work area lighting
Electronic speed display
Three-arm spindle feed handle
Tilting table with rack-and-pinion height adjustment

Technical specifications

Maximum drilling diameter 16 mm
Spindle speed range 350–2400 rpm
Power supply 230 V
Spindle taper MK2
Maximum spindle stroke 90 mm
Spindle-to-column distance 150 mm
Spindle-to-base distance 430 mm
Table height adjustment range 335 mm
Column diameter 60 mm
Table dimensions 240 × 240 mm
Base dimensions 400 × 232 mm
T-slot width 14 mm
Motor power (S1 / S6) 550 W / 700 W
Overall height 910 mm
Weight 46 kg
