Milling and drilling

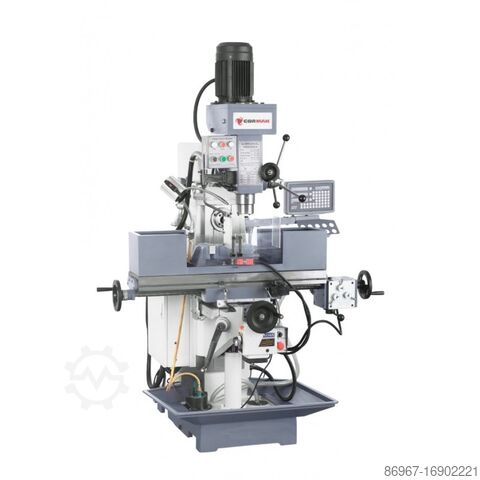

CORMAK ZX7550CW DRO

Machine characteristics

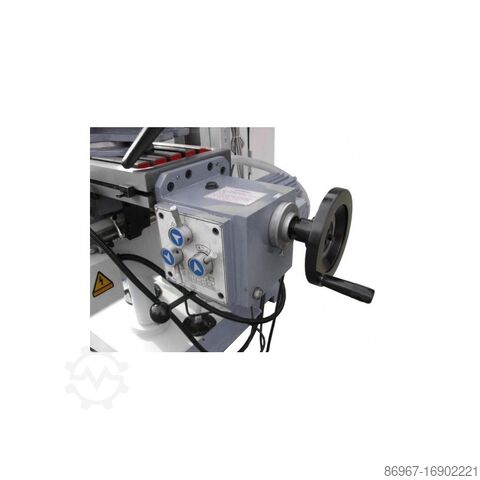

Automatic table feed in X, Y axis: gain precision and efficiency thanks to the automatic table feed in two planes. Achieve perfect results without extra effort.

Mechanical Z-axis table feed: We offer an innovative Z-axis table feed for fast and precise material processing. Reduce working time without sacrificing quality.

Heavy Stable Cast Iron: The robust construction of the machine ensures stability and durability. The heavy cast iron ensures precise workmanship, which translates into accurate machining.

Solid Cross Table with Precision Ground Surface: A cross table made with attention to detail, with particular emphasis on precision surface grinding. This guarantees perfectly smooth material processing.

Swallow Tail Slides on All 3 Axes: Thanks to the innovative dovetail guides, the machine achieves maximum precision movement in all three axes. Achieve accurate results without compromise.

Quiet Operation Thanks to Ground Gear Wheels: Work without unnecessary noise. Thanks to the ground gears, the machine runs smoothly and quietly for comfortable working.

Left and Right Rotation: Adapt the work to your needs. The machine has a left and right rotation function, allowing even greater flexibility in material processing.

Swivel head +/- 90°: Turn the head in any direction. The +/- 90° swivel function allows a diverse use of the machine, adapting it to different projects.

CORMAK ZX 7550 CW - it's not just a milling machine, it's a tool that meets even the most demanding challenges. Order today and experience excellence in material processing!

Max. drilling diameter 50 mm
Max. horizontal milling length 100 mm
Max. vertical milling diameter 25 mm
Max. threading diameter M16
Max. boring diameter 120 mm
Spindle taper ISO 40
Vertical spindle speed range and number 50Hz 115-1750 (rpm) (8)
Horizontal 50Hz spindle speed range and number

60-1350 (rpm) (9)
Distance between spindle and column surface 200-700 mm
Distance between spindle and table 100-480 mm
Distance between spindle axis and table 0-380 mm
Spindle extension 120mm
Table size 1000x240 mm
Table travel 600x230 mm
Feed of table 24-720 mm/min (8 speeds)
Spindle feed rate 0.015; 0.08; 0.25 mm/rev.
Number, width and spacing of T-slots 5/14 mm/44 mm
Motor (vertical/horizontal) 0.85-1.5/1.5 kW
Overall dimensions 1120x1060x2035 mm
Weight 970 kg
Version-dependent equipment

digital readout for 3 axes SINO
reduction bushings ISO 40/ Morsea
Drill chuck 1 - 16 mm
EC declaration of conformity
machine vice L - 160 mm
Hjdpoud Icqefx Afponu
milling spindle with a set of collets for finger joint cutters
horizontal spindle support / eyepiece
long moulder spindle
basic tools
24 V halogen lighting system
cooling system
operating manual in Polish
