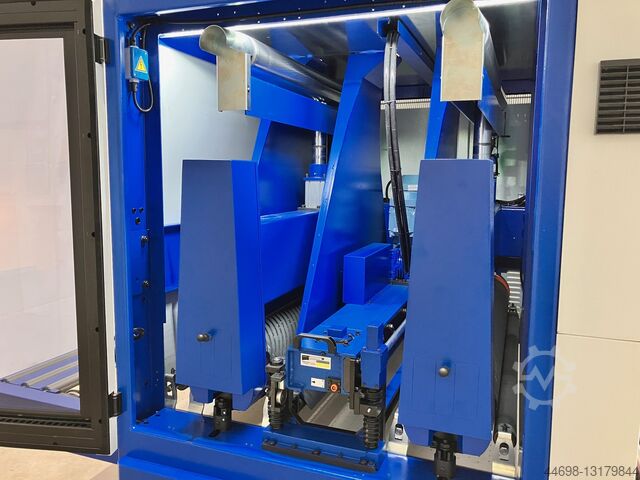

Deburring and fine grinding machine

Costa MD4 CVC 1150

Available from stock!

Deburring and fine grinding machine with 3 workstations:
Fjdpfopwh Tfsx Aa Nopp
Sanding belt - Brush station - Sanding belt

Effective maximum working width: 1150 mm
Standard workpiece thickness: 0.8 - 150 mm
Digital workpiece thickness display on the control panel, accuracy 0.1 mm
Adjustable pressure rollers before and after the workstations
Sanding belt insertion on the left
Sanding belt centering via electronically controlled photocell, emergency stop in case of skew or belt breakage
Infinitely adjustable conveyor feed speed

Includes the following options:
Machine base prepared for forklift loading
Extraction collector in galvanized sheet metal for machines with 3 work stations plus 1 external unit
Vacuum device to increase the adhesion of small or slippery workpieces to the conveyor. With perforated feed table and carpet, as well as a powerful electric fan and sound-insulated exhaust according to CE standards, 5.5 kW
2x grit sets for electronic fine positioning of the contact rollers
Adjustment and display (0.01 mm) on the control panel, standby position with pneumatic reset of the contact roller in the event of an emergency stop
Frequency-controlled drive motors for sanding belt cutting speed, motor power per unit 11 kW
Electronic adjustment of the brush unit

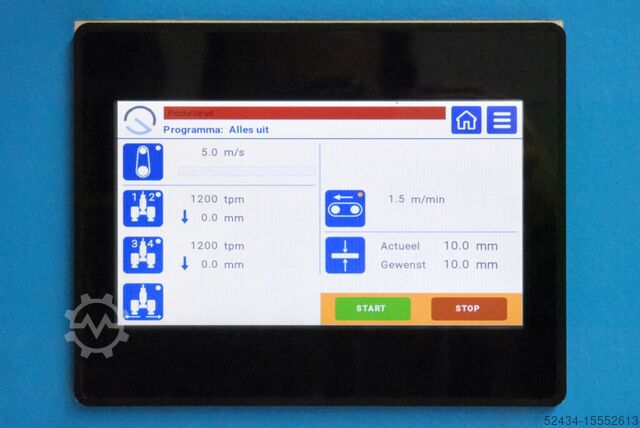

HMI Vision - PLC control with visualization of the various machine settings via color touchscreen
Storage capacity for up to 250 sanding programs

The listing was translated automatically. Translation errors are possible.
