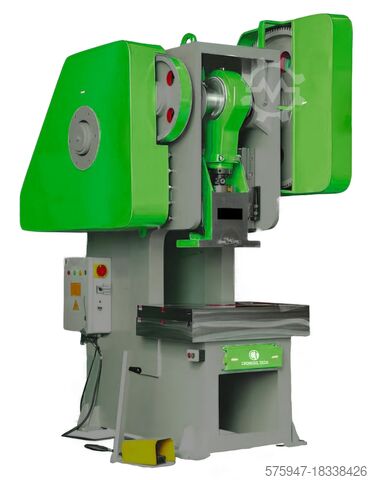

C-type 200 ton eccentric press machine

CRONOSSTECH CECP 200

An eccentric press is a type of mechanical press that operates by force generated through an eccentric mechanism in cold forming operations such as punching, cutting, and die forming. Thanks to its high production speed and repeatability, it offers an efficient and reliable solution for mass production lines.

The CRONOSSTECH C-Type 200 Ton Eccentric Press is engineered for stable operation in cold forming applications. Its rigid steel frame construction, pneumatic clutch-brake system, and CE-compliant safety infrastructure ensure reliable performance suitable for high-volume production.

Key Advantages:

- Consistent stroke performance and high repeatability in mass production
- Operator-focused safety design (light curtain + safety systems)
- Low maintenance requirement with central automatic lubrication
- Production-ready operation with PLC control + dual-hand/foot control

Application Areas:

- Cold cutting and punching operations
- Cold shearing applications
- Metal forming with dies
- High-volume production lines

✅ STANDARD FEATURES
• Steel frame construction
• Four-way guided slide
• Spheroidal cast iron connecting rod and gear bearings
• Crankshaft and drive shafts made of 4140 tempered steel
• Central fully automatic grease lubrication system
Dkjdpfx Ahjvtyx Ij Sog
• Pneumatic clutch and brake combination
• CE safety directives compliant
• Dual-coil safety valve
• Manually adjustable stroke
• Light curtain finger–hand protection safety system
• PLC control system
• Dual-hand/foot control system
• Mechanical safety system
• Emergency reverse motor operation
• Complies with occupational safety regulations
• CE standards compliant

✅ OPTIONAL FEATURES
• Anti-vibration pads
• Touchscreen LCD control panel (standard on 150–300 ton models)
• Hydraulic safety system (standard on 200–300 ton models)
• Spare bolster plate
• Decoiler, feeder, and straightener
• One die set in requested specifications
• Eight-sided slide guidance

✅ TECHNICAL SPECIFICATIONS (200 TON)
Capacity: 200 Tons
Throat depth: 340 mm
Distance between table and slide: 500 mm
Distance between slide and table: 600 mm
Width between uprights: 510 mm
Slide adjustment (shut height adjustment): 130 mm
Approx. press width: 1900 mm
Approx. press depth: 2400 mm
Approx. press height: 3000 mm
Front anchoring dimension: 920 mm
Side anchoring dimension: 1420 mm
Table hole diameter: Ø240 mm
Table dimensions: 680×1000 mm
Die clamping hole diameter: Ø60 mm
Slide dimensions: 620×350 mm
Table height from floor: 805 mm
Stroke adjustment: 20–140 mm
Strokes per minute: 50 spm
Motor power: 18.5 + 0.75 kW
Motor speed: 1450 rpm
Approximate weight: 9200 kg
Note: Please inform us if you require changes to the technical specifications.

✅ PRODUCTION / SUPPLY NOTE:
This machine is manufactured in Turkey by CRONOSSTECH. Sales, commissioning, and after-sales processes are managed by CRONOSSTECH.
