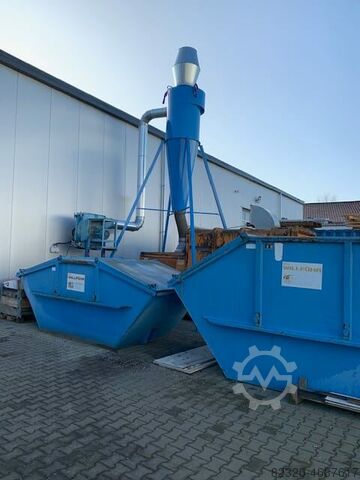

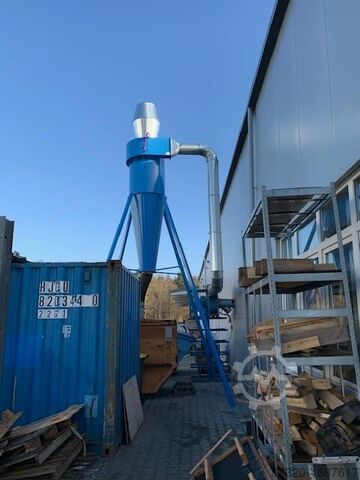

Cyclone Pre-separator

D&M Z-Line

Dear customers,

To ensure a fast and reliable response to your inquiry, we kindly request that you contact us preferably via email.

This way, we can directly assign your request to the appropriate contact person, gather all information and documents completely, and process your inquiry as quickly as possible.

We look forward to hearing from you and are happy to assist you!

For suction diameters from 120 to 700 mm.

Please let us know your volumetric flow rate, and we will select the right cyclone for you.

Various designs available:
- Legs, made of painted square steel profiles
- Cell wheel lock and transition piece with inspection flap
- Inlet box with check valve
- Tangential outlet with/without pressure relief area
- Square outlet with/without pressure relief area
- Sound insulation

Of course, you can also purchase all accessories from us, such as fans, suction pipes, deflector hood, etc.

Mode of operation:
Nedpfjftb Ebox Ac Hswk
The contaminated air is introduced tangentially into the cylindrical upper part, causing the air to rotate. The material is forced outwards towards the circumference of the cyclone under the influence of centrifugal force and is discharged through the hole in the bottom. The cleaned air leaves the cyclone through the centrally located outlet pipe at the top.

The separation efficiency increases with the feed rate, but so does the pressure loss and, consequently, the energy consumption. Therefore, it is important to find a good compromise.

We have developed a range of cyclones that are optimized for filtering large quantities of material. They are therefore very well suited for the wood/paper/recycling/grain and feed industries.

Below, you can select the cyclone with the right size based on the air volume and a typical pressure drop in the range of 1000 Pa.

Operating pressure +/- 5000 Pa
