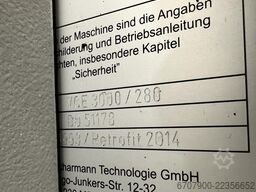

DÖRRIES SCHARMANN VCE 3000 / 280 CNC Vertical Lathe

DÖRRIES SCHARMANN VCE 3000 / 280

Condition: used, swing diameter 2000 mm turning height 1800 mm Control Siemens Sinumerik 840 Dsl turning speeds range 2,8-315 U/min cross rail adjustment - vertical 1200 mm cross rail adjustment - horizontal +/- 1150 mm 1500 mm bit feeder section 240 x 240 mm Cedpfjy Dvlqsx Ak Eehb Minimum immersion diameter 340 mm cutting capacity 50 kN max. torque on the faceplate 50000 Nm speed range step 1 2,8 - 80 U/min speed range step 2 12 - 315 U/min Max. clamping weight 12000 Kg power capacity faceplate 105 kW weight of the machine ca. 33 t dimensions of the machine ca. 10 x 5 x 6,5 m Further technical data: - Feed range of three-phase servo motors: 1–3000 mm/min; 0.01–50 mm/rev - Crossbeam travel speed: 425 mm/min Features/Accessories - Increased turning height (+600 mm) - Z-axis extended to 1500 mm - Magazine capacity: 20 positions - Magazine type: disc magazine - Max. tool length: 525 mm - Chip conveyor - Workpiece measurement - Renishaw probe - Coolant tank capacity: approx. 2000 litres - Coolant pump flow rate: 60 litres/min at 2 bar Overhaul: - Extensively overhauled in 2012 by Siemens Industry Munich - Items overhauled included: control system, cabling, motors, measuring systems, etc. - Further information can be found in the PDF

Year of construction: 2015, condition: ready for operation (used), A laboratory ball mill Netzsch is available. Drive power: 1.5kW, speed: 4200rpm, ball diameter range: 0.05mm-2mm, total ball volume: 140ml, max. product volume batch/circulation: 140ml/500ml, max. product viscosity: 5000mPas. Machine dimensions X/Y/Z: approx. 850mm/600mm/700mm, weight: approx. 100kg. Documentation available. An on-site inspection is possible. Cedpoxvrt Ssfx Ak Eehb

Condition: used, Year of construction: 2013, Technical details: faceplate diameter: 800 mm Chsdpfsuyp Enex Ak Eeb power requirement: 110 kW weight of the machine ca.: 37.000 / total 52.000 t transport measurements machine: 5,07 x 2,98 x 3,90 m clamping diameter: 800 mm : Ø 800 x 720 mm Tool bore: Capto C6 tools in tool magazin: 2 x 80 With C-Axis *

Condition: used, Technical details: Chedpfey Anpxsx Ak Eob spindle diameter: 150 mm x-travel: 3000 mm y-travel: 2000 mm spindle stroke: 700 mm dimension of the ram: 340 x 340 mm ram stroke: 700 column travel: 1500 mm spindle taper ISO: 50 bore spindle turning speed range: 3,2 - 1600 U/min table surface area: 2000 x 2500 mm max. table load: 25000 kg rapid speed: 5 / 10 m/min feed speeds: 1 - 5000 mm/min total power requirement: 100 kW weight of the machine ca.: 57 t dimensions of the machine ca.: 8,4 x 6,8 x 5,9 m with CNC SIEMENS 840 D full B-axis aerostatic guideways facing head ( 3,2 - 140 rpm ) angular milling head 1000 Nm coolant attahcmnet with internal cooling supply *

Condition: used, Year of construction: 2005, Technical details: x-travel: 1800 mm y-travel: 1600 mm z-travel: 1400 mm B-axis (table): 360° size of pallet: 1000 x 1250 mm workpiece swing dia.: 2100 mm workpiece weight: 3500 kg spindle taper ISO: 50 spindle drive motor: 37 kW spindle turning speed range: 25 - 10000 U/min feed range: 40/50 m/min rapid power traverse circular: 10 U/min total power requirement: 90 kVA weight of the machine ca.: 43 t dimensions of the machine ca.: 11 x 9 x 4,5 m Machine with SIemens 840 D control for 4 axis Codpovgcrksfx Ak Eshb - full B-axis - palette changer - tool changer for 150 tools - coolant device with coolant through spindle - chip conveyor *

Condition: good (used), Manufacturer: INNOCENTI Type: PM 325 FT Year of construction: 2012 Specifications: Metric Metric US Standard Table length 4250 mm Table width 4250 mm Table load 130.000 V-axis feed 3000 mm B-axis rotation 360.000 ° High-speed rotation B-axis 0.16 - 34.5 Omw/min. Dimensions (estimate) length 8000 mm width 4250 mm height 2000 mm weight Cedpfx Akstwllfj Eohb 62500 kg Please note: The information on this page is given in good faith and to the best of our knowledge, and where possible, has been obtained from the manufacturer, but accuracy cannot be guaranteed. Accordingly, it does not constitute a representation or contract and we recommend that you check all relevant details.

Condition: good (used), Year of construction: 2008, functionality: fully functional, travel distance X-axis: 1,450 mm, travel distance Y-axis: 1,100 mm, travel distance Z-axis: 1,300 mm, table load: 2,000 kg, Travel Paths Travel path X: 1450 mm (longitudinal) Travel path Y: 1100 mm (vertical) Travel path Z: 1300 mm Pallet size: 800 x 1000 mm Table load capacity: 2000 kg Spindle & Drives NC rotary table with direct drive Positioning: 0.001° Chjdey Idykepfx Ak Eeb Max. rotary table speed: 60 rpm Rapid traverse: 60 m/min Spindle motor: 50 kW (25%) / 28 kW (100%) Spindle torque: 1210 Nm / 680 Nm Spindle speed: 6000 rpm Spindle taper: HSK 100 Tool Changer: 80 positions Max. tool diameter: 325 mm Max. tool length: 800 mm Max. tool weight: 35 kg Workpiece diameter: 1600 mm Workpiece height: 1400 mm Workpiece weight: 2000 kg Accessories: - Coolant through spindle - Coolant shower - Tool breakage detection in tool changer - Spindle motor load monitoring - Spindle extension by 100 mm - Electronic handwheel - Various tools

Condition: like new (used), Year of construction: 2013, Retrofitted: 2026 Numerical control: HEIDENHAIN TNC-i530 Technical features Dimensions Table dimensions: 12500 x 2250 mmNumber of T slots: 9T slots dimensions: 22 mm Traverses of axis X axis traverse: 11500 mmY axis traverse: 1500 mmZ axis traverse: 2000 mmVertical capacity (VC): 150 / 2150 mm (adjustable) Milling head Head type: Universal Auto-indexing UDG (2.5º)Tool clamping system: HydraulicTaper nose: ISO 50 (DIN 69871) / Pull stud: DIN 69872Speed range: 3000 rpmSpindle power: 30 kW Feedrates Rapid feedrate (X / Y,Z): 30000 mm/min Weight and dimensions Maximum weight on table: 15 Tn/m2Machine weight approximate: 62000 kgMachine dimensions approximate: 18494 x 8412 x 5290 mm Accessories Guarding: front doors and new perimetral wire-mesh fenceAutomatic tool changer: ATC40Chip conveyor: 1 longitudinal rear hinge typeElectronic handwheel: HR-410Coolant: external internal high-pressure through spindle Sale conditions Warranty: 6 months mechanical partsPrice and sale conditions: On request View all technical features Chodpfx Akjyf Rras Eeb

Condition: used, Year of construction: 1991, controller manufacturer: Siemens, controller model: 840 Dsl, _____ Description: Year of manuf. : 1991 Control : Siemens 840 Dsl Turning diam. : 1600 mm Turning length : 1800 mm In General: Year of manufacture:1991 / 2010 Control system retrofit:2010 Control system:Siemens 840 Dsl Circumferential diameter:2,000 mm Turning diameter:1,600 mm Turning height:1,800 mm Table / Faceplate: Technology:Gear-driven table Speed:315 rpm Power:105 kW Max. torque:50,000 Nm Faceplate:1,600 mm Max. table load:12,000 kg Tool carrier: Crossbeam travel (vertical):1,200 mm Chisel slide travel:1,500 mm Support travel (horizontal):2,300 (+/-1,150) mm Penetration diameter:340 mm Chisel slide cross-section:240 x 240 mm Equipment: Tool magazine:20 stations Chip removal:Chip conveyor Coolant supply:Coolant system with filter Tool measurement:Probe Set-up:Electronic handwheel Tool holders:Various tool holders Cjdoy R Iwxjpfx Ak Eehb Control system overhaul: Year of overhauling:2010 Technology:Siemens 840 Dsl NC control:Sinumerik NCU 710.2 Motors:X/Z-axis, ATC, :spindle Measuring systems:Direct scales X/Z, ROD encoder table Control panels:Machine control panel, ATC operator panel

Condition: used, spindle diameter 150 mm x-travel 2500 mm y-travel 1600 mm z-travel 1000 mm spindle taper ISO 50 turning speeds 4-1120 U/min Feed 5-2000 mm/min bore spindle stroke 580 mm main drive motor 45 kW table surface area 1600x2000 mm table load 12,5 t Control Heidenhain type TNC 410 workpiece weight 15000 kg total power requirement 80 kW dimensions of the machine ca. 6,5x5x5x4 m Machine overhauled 2004 The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. Cedpfxsyquh As Ak Eehb We look forward to your visit. Your Markus Hirsch Team
