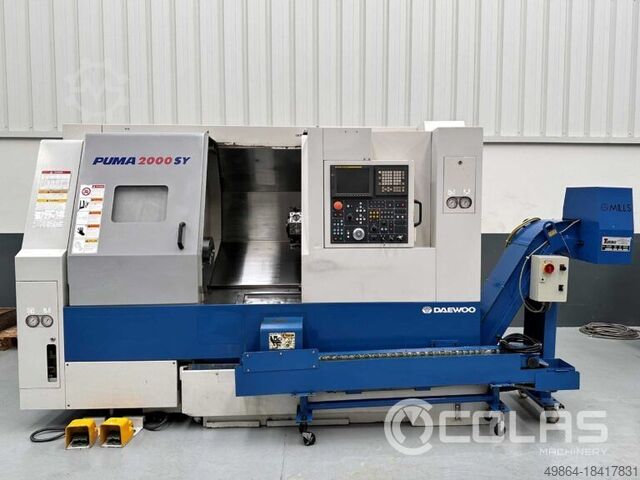

CNC turning and milling center
DAEWOO PUMA 2000 SY

Name: DAEWOO PUMA 2000 SY
Brand: DAEWOO
Availability: InStock

Year of construction

2003

Condition

Used

Location

Zaragoza

CNC turning and milling center DAEWOO PUMA 2000 SY

Show map

Machine data

Machine type:: CNC turning and milling center

Manufacturer:: DAEWOO

Model:: PUMA 2000 SY

Year of construction:: 2003

Condition:: excellent (used)

Functionality:: fully functional

Price & Location

Location:: Ctra. Castellón KM 5.2, 50720 Zaragoza, España

Call

Details about the offer

Listing ID:: A184-17831

Update:: 03.02.2025

Description

Manufacturer DAEWOO
Model PUMA 2000 SY
Year 2003
CNC FANUC 18i – T
Capacities
Swing over bed 600 mm.
Swing over saddle 550 mm.
Max. turning diameter 330 mm.
Max. turning length 510 mm.
Travels and feeds
X Axis Traverse 250 mm.
Z Axis Traverse 580 mm.
Y Axis Traverse 100 (±50) mm.
B Axis Traverse 580 mm.
Rapid feed X Axis 20 m/min.
Rapid feed Z axis 24 m/min.
Rapid Traverse Y 7,5 m/min
Rapid Traverse B 20 m/min.
Main Spindle
C Axis INCLUDED
C Axis index 0.001 º
Through hole Ø 76 mm
Nose A2#6
Main Spindle Speed Ranges 4.500 rpm.
Main Spindle motor power 15 kW
Sub-spindle
C Axis in sub-Spindle INCLUDED
C Axis index 0.001º
Sub Spindle through hole Ø 45 mm
Sub Spindle Speed Ranges 6.000 rpm
Sub Spindle motor power 7.5 kW
Turret and driven tools
Nº of Station 12
Tool Size 25 mm
Turret Indexing Time 0.1 s
Living Tool Speed 5.000 rpm.
Rotary tool spindle motor power 5.5 kW
Equipment
Spindle Chuck Ø Ø 210 mm
Gedpfx Abovwcgiepskd
Sub Spindle Chuck Ø Ø 160 mm
2 Axial Live Tool Holder INCLUDED
2 Radial Live Tool Holder INCLUDED
Tool pre-setter INCLUDED
Cutting Oil Pump high pressure (7Bar) INCLUDED
Automatic Parts Catcher INCLUDED
External Parts Conveyor INCLUDED
Chip Conveyor INCLUDED
Others
Machine Dimension 3.118 x 1.705 x 2.076 mm.
Machine Weight 4.850 kg.
Total Power 50,7 kVA
