Flatbed truck with tarpDAF
FA LF 210 8t Pritsche/Plane+LBW
Flatbed truck with tarp
DAF
FA LF 210 8t Pritsche/Plane+LBW
Fixed price plus VAT
€47,400
Condition
Used
Location
Heilbronn

Show images
Show map
Machine data
PRICE & LOCATION
Fixed price plus VAT
€47,400
- Seller location:
- Alexander-Baumann-Str. 70, 74078 Heilbronn, Germany
Call
TECHNICAL DETAILS
- Mileage:
- 29,500 km
- Power:
- 157 kW (213.46 HP)
- First registration:
- 07/2022
- Overall weight:
- 8,000 kg
- Fuel type:
- diesel
- Color:
- white
- Axe configuration:
- 2 axles
- Next inspection (TÜV):
- 12/2024
- Gearing type:
- mechanical
- Emission class:
- euro6

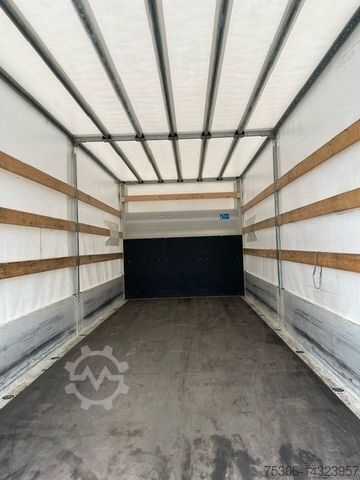

- Loading space width:
- 2,475 mm
- Loading space length:
- 6,100 mm
- Loading space height:
- 2,400 mm
- Equipment:
- ABS, air conditioning, compressor, electronic stability program (ESP), soot filter, tail-lift
LISTING DETAILS
- Listing ID:
- A143-23957
- Reference number:
- 1104672
- Update:
- 14.02.2025
DESCRIPTION
Vehicle description:
- Wheelbase 4.30 m / rear overhang 2.08 m
- Rear: 5.00 t, air suspension, SR5.14
- FGG Chassis weight max. 7490 kg
- H3279WHTE
- Rear axle ratio 3.73
- Driver's seat: air suspension
- Emission class Euro 6
- AdBlue® tank 25 l, right side of chassis
- 6-speed manual gearbox 6S800 OD, 6.58-0.78
- PX-5 engine, 157 kW/213 hp.
- Adjustable roof spoiler
- Front: 3.60 t, Parabel HD, F36
- Use with drawbar, type plate, up to max. GVW
- Manual gearbox, 6 gears
- F1,215/75R17.5
- R1,215/75R17.5
Cab exterior:
- Central locking with exterior light check function
- Translucent green exterior sun visor above the windshield
- Halogen headlights with double reflector and impact-resistant Lexan lens glass
Aerodynamics:
- The shape of the adjustable roof spoiler ensures an aerodynamic flow line between the cab and body or trailer

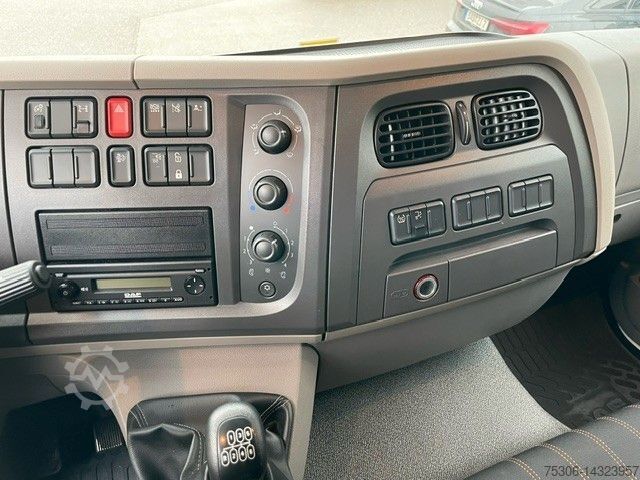

Driver's cab, interior fittings:

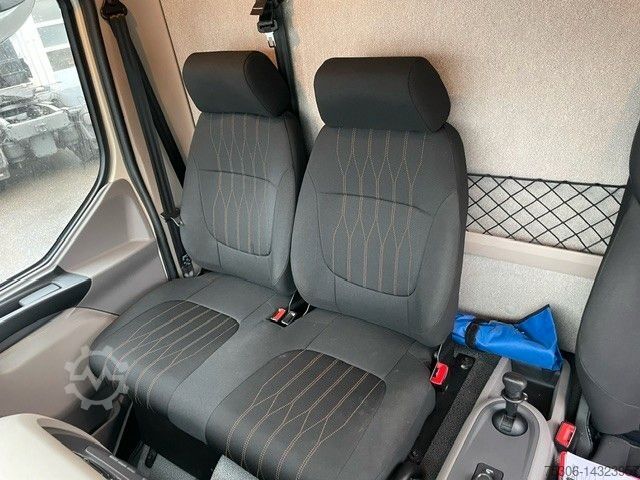

- Double passenger bench seat with velour upholstery. Both seats with headrest and three-point safety belt Storage under the outer seat cushion
- Manually controlled air conditioning with air circulation function
Communication and drive management:
- Speed limiter setting 85 km/h nominal. The tolerance allows a maximum vehicle speed of 88.5 km/h
- Digital (intelligent) tachograph VDO DTCO with GNSS receiver (Global Navigation Satellite System) and DSRC unit (Dedicated Short Range Communication), complies with EU regulation Annex 1C tachographs
- Radio/USB player. Loudspeaker system with 2 loudspeakers
Safety and protection:
- Audible reversing warning system with override switch
Suspension and axles:
- Single reduction driven rear axle, type SR 5.14, with electronically controlled two-bellows air suspension, including shock absorbers and stabilizer. Technically permissible load 5.00 t
- Type F36 front axle. Heavy-duty parabolic suspension, including shock absorbers and stabilizer bar. Technically permissible load 3.6 t
Drive train:
- Driven rear axle with mechanical differential lock
- Engine PX-5, 4-cylinder diesel engine, 4.5 liters. Output 157 kW (213 hp) at 2300 rpm. Max. Torque 850 Nm at 1200-1500 rpm
Brake system:
- Parking brake actuation with test position
Trailer equipment:
- Electrical connection for trailer (24 V) with two 7-pin sockets. An additional 7-pin socket is used to connect the EBS system of the trailer/semitrailer
Mjil3Pizpv
- Pneumatic connection for trailers with swivel couplings
- Drawbar cross member, D value 85 kN, Dc value 70 kN, V value 25 kN. Trailer coupling D-value 85 kN. Cross member and coupling mounted on the chassis
- Use with drawbar, type plate, up to max. permissible GVW
Bodies and body preparation:
- LED side marker lights
- Application connector for tail lift control on the chassis (A088). Electrical signals for 'cab tilting device locked' and 'engine operation'. Power supply 24 V via contact. Replacement cable to dashboard. Includes dashboard indicators for 'lift operation active' and 'lift down' as well as a signal for engine starter cut-off with blocking of the starter when the lift is open
- Mounting of superstructures BAM 1, with bracket type B, supplied as loose item. From production week 2019-45, the first console (closest to the cab) will be pre-assembled on both sides of the chassis
Total weight and gross train weight
The listing was translated automatically. Translation errors are possible.
