Roller seam welding machine - cross seam

DALEX PMS 16-1 200 kVA

Condition: new, Year of construction: 2025, longitudinal and transversal seam welding machine --- Power at 50%: 80kVA Highest welding-current: 35,9kA Electrode force: 100-600daN / double stroke Throat depth: 550mm --- Weld control: Filius classic 128 program Nwjdpfx Agewqmrzerjl --- Extra Equipment: - foot pedal - flow monitor - main switch --- Warranty: 6 months --- Spotwelding electrodes + spare parts at stock

Condition: good (used), Projection welding machine Make DALEX Type PMS 16-1 Projection: 350 mm Rated power at 50 % ED: 250 kVA Sec. short-circuit current: 110 kA Nedpfx Asubdatogrjwl Sec. open circuit voltage: 12.5 V Electrode force: 340-2,040 daN with double stroke cylinder and feed stroke with synchronous welding control 5/36 TT Weight: 988 kg function-tested Machine is still being refurbished

Condition: good (used), functionality: fully functional, pipe diameter (max.): 28 mm, bending angle (max.): 180 °, bending force (max.): 7 t, overall weight: 250 kg, Bendingcapacity: 3/8" - 2" Bending angle: 180° Revolverbending: 6-fold Attached bendingtool: Ø 28 mm Country of origin: The Netherlands Motor power: 3 kW Machine weight: 250 kg Machine LxWxH: 1.000 x 800 x 950 mm Nwjdpfxswzchyj Agrol

Condition: used, Year of construction: 2009, functionality: unexamined, power: 196 kW (266.49 HP), total height: 2,570 mm, total length: 3,500 mm, total width: 1,200 mm, 2G / WEIER Gas CHP – Engine/Generator Set Gas-powered combined heat and power plant from 2G. The unit is housed in a soundproof enclosure and features a gas control system, heating and engine circuits, and a heat exchanger. Unit/Engine: WEIER Type: GEN.DASGM 250/4L Year of manufacture: 2009 Voltage: 400 V Frequency: 50 Hz Rated current: 400 A Power: 196.0 kW Speed: 1,514 rpm Power factor: cos φ 0.86 Protection class: IP54 Insulation class: F Max. ambient temperature: 70 °C Max. operating pressure: 6 bar Marking: CE / EN 60034/05 Ignition system: Manufacturer: Altronic Inc. Type: CD200 – Programmable Ignition Njdezzbhpepfx Agrswl P/N: 791070-6 S/N: 3218 Supply: 12–24 V DC Max. ambient temperature: 105 °C Location: Neuenkirchen-Vörden, Germany An inspection of the unit is possible after prior arrangement. If you are interested or have any technical questions, please feel free to send us an inquiry. We will provide you with further information and documents upon request.

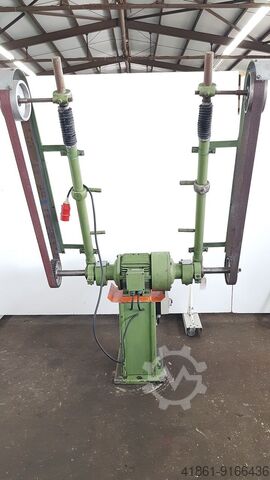

Year of construction: 1990, condition: good (used), machine/vehicle number: XXXX, Item No. 17415 Technical data: - Sanding belt dimensions approx. 50 x 2500 mm - Contact wheel diameter approx. 250 mm - Drive 400 V / 5.5 kW Njdpfxsk D Dxfe Agrowl - Space requirement approx. W 1350 x H 2050 x D 900 mm - Weight approx. 200 kg

Condition: used, Year of construction: 2008, throat depth: 680 mm, nominal power at 50% duty cycle: 45 kVA, input voltage: 400 V, Combined roll seam and spot welding machine, type UN63 - Roll seam welding - Rated voltage 400V/50Hz - Rated power 45kVA - Welding current 15kA - Fuse rating 125A - Overhang 670mm - Upper roller diameter 175mm - Lower roller diameter 120mm - Arm distance 350mm - Electrode force 500daN - Stroke approx. 30mm - TE500 control unit with 99 welding programs, parameters for each program, digital current display after each weld, current monitoring, stepper function, Language selection: German, English, Italian, French, etc., with operating manual - 2-stage foot switch according to UVV standards - Machine main switch - Pneumatic maintenance unit - Weight approx. 680kg - Documentation with circuit diagram, compressed air diagram, and cooling water circuit - VAT can be shown separately Nodszh Izcepfx Agrowl - Spot welding fixture / electrode holder and lower arm available at an extra cost. The machine is located in Dresden, near the A17 highway, and can be inspected and demonstrated by appointment. On-site commissioning is subject to a fee, billed according to actual effort.
