Cylindrical grinding machine

DANOBAT CG 51 600 CNC

Year of construction: 1995, condition: excellent (used), Technical data Manufacturer: brown & sharp Type: DEA Mistral Year of construction: 1995 Measuring range X = 1500 mm Y = 1000 mm Z = 900 mm Equipment Iedjf Dvzcjpfx Ad Djtp Renishaw PH10M probe TP200 touch probe + probe changing bench 6 garages Software PC-DMIS Version 4.2 Status 2008 PC (WIN XP), monitor, inkjet printer, computer table The machine can be upgraded with new accessories according to customer requirements. Price: on request! Installation and commissioning possible! We would be happy to provide you with a detailed offer. Please note: Our offer is directed exclusively to professional customers. (Changes and errors in the technical data, information and prices and subject to prior sale)

Condition: good (used), Year of construction: 2004, Clampable cutter head type (max.) 460 mm Cutter head weight (max.) 150 kg Mounting disc diameter for cutter heads (Ø) 360 mm Mounting cone for cutter heads Nominal diameter Ø 58,227 mm Iedpfx Adeul Efme Dstp travel -z axis 200 mm diagram-drawing enlargement ±10 - ± 500 µm weight of the machine ca. 2,3 t dimensions of the machine ca. 2 x 1,5 x 2,03 m In the manufacturing process for spiral-toothed bevel gears, the quality of the gear cutting gear cutting tools used plays a decisive role. Particularly in high gear cutting quality and a long service life can only be achieved with precisely can only be achieved with precisely adjusted cutterheads. The Oerlikon cutterhead setting and testing device CS 200 enables quick and easy setting of the individual knives and simple adjustment of the individual knives, it checks the position and documents the measurement results. The measuring sequence on the CNC-controlled testing device is partially automated: The individual actions for carrying out the actions for carrying out the sequence are displayed on the screen via the operator guidance. The positioning of the individual knives in the cutter head and the height of the knife tips is largely automatic thanks to a special sequence and is simultaneously documented by means of a run-out diagram. A subsequent measuring sequence checks the radial position of the inner and outer cutting edges of all knives in the cutterhead. If individual test parameters on the knives do not correspond to the the tolerance specifications, this can be individually repositioned. The combination of semi-automated setting sequence, operator-guided set-up actions and automatic operator-guided set-up actions and automatic measuring sequence, cutterheads can be can be set conveniently, quickly and with high precision. Operator-guided setting and test sequence - Graphic display of the cutter head design and the measurement results with tolerance check - Instructions for the operator in plain text Instructions for the operator in plain text (without coded information) - Simple assignment of the measurement results to the knives - Documentation of the setting and measurement results via printer- Setting and test sequence suitable for ARCON®, RSR, Spirapid, SPIRON®, TRI-AC® types - Interface for neutral data

Condition: like new (used), Year of construction: 2019, absolutely as good as new condition, 2 external wheels, 1 internal grinding spindle Siemens control controlled B-axis Isdsvt R Awjpfx Ad Dstp suitable for Capto grinding (out of round) center width 1000 mm center height 200 mm

Year of construction: 2006, condition: ready for operation (used), FASTEMS Type: MLS-XHD Load max pr. pallet 6.000 kg Machine capacity 5 pcs Pallet capacity 25 pcs Iodeguk E Tspfx Ad Dotp Available pallets 19 pcs Loading stations 2 pcs X 2650 mm max Y 2300 mm max Robot with grinding function 1 pcs Layout dimensions 15 x 54 meter Build year 2006

Condition: excellent (used), Manual control box for Dea or Brown&Sharpe machines Itjdpfxefhqxdo Ad Dsp

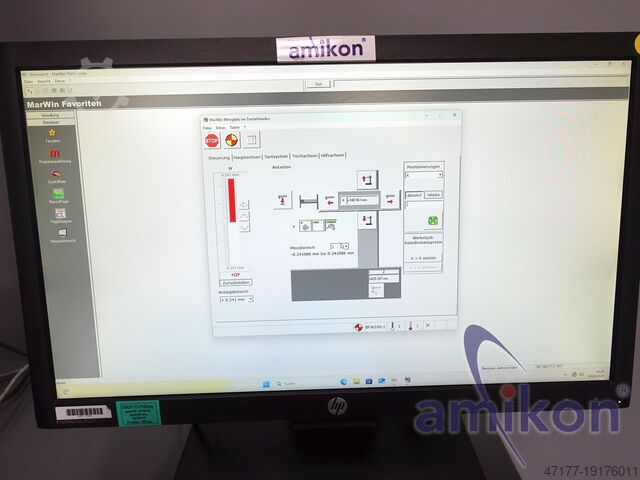

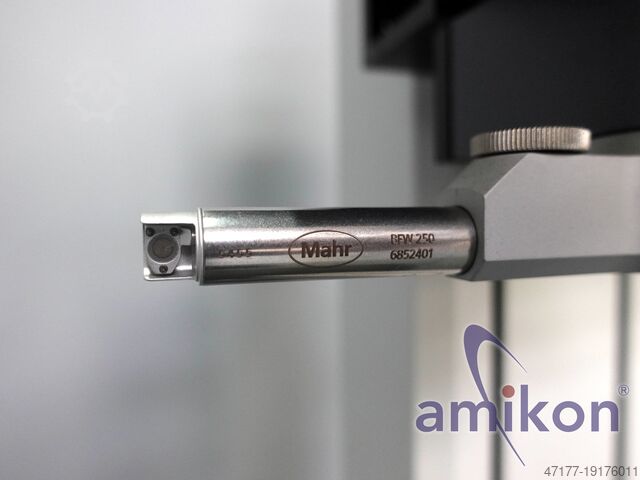

Condition: excellent (used), Mahr Type: MarSurf GD 140 BG 22 Product Information: The MarSurf GD 140 is a high-precision roughness and waviness measuring station from Mahr, designed for use in production metrology and in the measuring room. Itsdswlhwnspfx Ad Dop It sets new standards in surface metrology with its high speed, reliability, and flexibility. Product Features: Multifunctional: Measures roughness, waviness, and profile of workpieces. Location: Can be used in the measuring room or in close proximity to production. Software: Control via user-friendly MarWin software: EasyRoughness MarWin Software Version: V12.20-06 SP1 Areas of Application: Industry: Mechanical Engineering Typical Measurement Objects Bearings, threads, threaded rods, ball screws, shafts, gear racks Industry: Production Metrology Typical Measurement Objects Contour Measurement in Semi-Automatic Processes Industry: Automotive Industry Typical Measurement Objects Steering, braking systems, transmissions, crankshafts, camshafts, cylinder heads Industry: Medical Technology Typical Measurement Objects Contours of hip and knee endoprostheses, medical screws, and dental implants Technical Specifications – MarSurf GD 140 Feature Value / Description Resolution – Measuring Range 1 / 2.0 nm Resolution – Measuring Range 2 / 0.2 nm Start of Traverse Length (X) 0.1 mm End of Traverse Length (X) 140.0 mm Traverse Length (Lt) 0.1 – 140 mm Guide deviation 0.20 µm / 60 mm 0.40 µm / 140 mm Measuring force 0.7 mN Measuring speed 0.02 mm/s to 10 mm/s Positioning speed (X) 0.02 – 200 mm/s Positioning speed (Z) 0.02 – 50 mm/s Probe system: Roughness probe system (skidless) – without probe base Probe arm lengths 45 mm (×1) 67.5 mm (×1.5) 90 mm (×2) 112.5 mm (×2.5) 135 mm (×3) Measuring range (depending on probe length) ±250 µm (with 45 mm probe arm) ±750 µm (with 135 mm) Probe arm) Technical specifications – Dimensions: Dimensions (L × W × H) Length: 780 mm, Width: 535 mm, Height: 1240 mm Maximum workpiece weight: 90 kg Additional functions Manual TY adjustment (e.g., for lateral alignment) Total weight (gross): 196 kg Condition: Used Scope of delivery: (See image) (Subject to changes and errors in the technical specifications, information is subject to change!) We are happy to answer any further questions you may have over the phone.

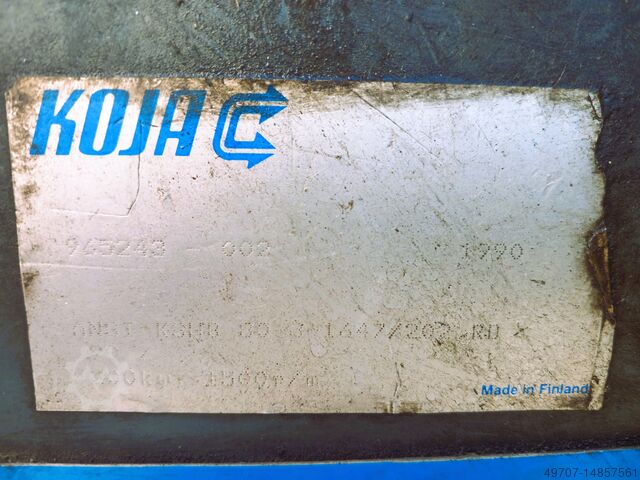

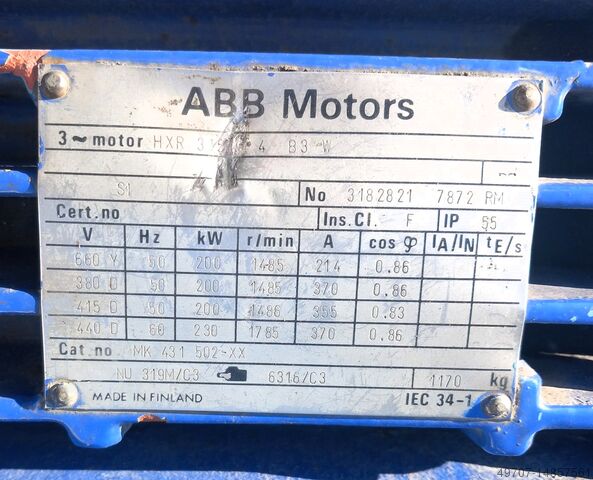

Year of construction: 1990, condition: excellent (used), Production: KOJA Year of manufacture: 1990 Power: 200kW, 370A RPM: 1485 rpm Air delivery: approx. 100,000 m3/hour Suction side: diameter 800mm Pressing side: 800 x 620mm Impeller diameter: 1800mm Housing dimensions: 3400x3100x2400 Net weight with engine: approx. 4.5t Aerodynamic control with inlet guide vane, grease-lubricated anti-friction bearings. The machine can be disassembled and transported with a standard truck. Itjdpfjrgqm Hex Ad Dop
