Universal machining center

Deckel Maho DMC 125 U hi-dyn

Condition: used, Year of construction: 2008, x-travel 800 mm y-travel 700 mm z-travel 600 mm control SIN 840D Powerline spindle turning speed - stepless 1 - 8.000 U/min power capacity at 40 % load 28,00 kW spindle diameter in front bearing 80,00 mm spindle taper HSK-A100 B-axis 187 ° feed X/Y/Z-axis 15.000 mm/min rapid traverse X/Y/Z 50,00 m/min feed force X/Y/Z axis 10.000 N rapid traverse B-axis 11,20 U/min size of pallet 800 x 630 mm table load 0,80 t c-axis 360,000 x 0,001 ° table turning speeds 1 - 500 U/min toolpiece magazine: chain magazine 120 Stück tool diameter 100 mm tool diameter with 2 vacant positions 160 mm tool length - max. 350 mm Fgedpjw Df A Sefx Aa Nei weight of tools max. 10,00 kg total power requirement 60,00 kW weight of the machine ca. 13,00 t dimensions of the machine ca. 7,40 x 5,30 x H3,50 m With Siemens SIN840D control, tool taper cleaning, tool breakage monitoring, coolant system, 2 pressure levels (40bar / 80bar), chip conveyor, operating mode 4, exhauster.

Condition: excellent (used), With B + C axis Working travels 1000 x 1000 x 100 mm Table size 1000 x 800 mm Spindle taper HSK100 Spindle speeds -8'000 rpm Tool changer 60 Pos. Control SIEMENS 840D Shopmill Coolant through spindle Fjdovvka Ujpfx Aa Nsgi 3D tracer Tool measurement Tool breakage control device Misc.accessories MARCELS MASCHINEN CH

Condition: used, _____ Description: Year of manuf. : 2005 Control : Heidenhain iTNC 530 Speed : 8000 rpm Movement X/Y/Z : 800/800/800 mm Tool holder : SK 50 Spindle: Technology:Gear spindle Speed:8.000 rpm Power:28 kW Torque:727 Nm Taper:SK 50 Swivel head:B-Axis - 0,001° Media feed through:Coolant + Blast air NC rotary table: C-Axis:0,001° Speed tabletop:30 rpm Holding torque:5.000 Nm Clamping surface palett:ø800 x 630 mm Tableloading (max.):1.200 kg In General: Fedpfjwz A A Dex Aa Nogi Toolmagazin:120 stations Rapid traverse in X/Y/Z-Axis:60 m/min Equipment: Position sensor:Direct scales in all Axes Workpiecemeasurement:Touch probe, Infrared Toolbreakagecontrol:Mechanic Setup:Operation mode 4 Coolingmanagement:Internal cooling unit with paperbeltfilter, 40 bar Chipmanagement :Chip conveyor Extraction :Mechanic, Brand ifs Media supply through spindle :Switching coolant/blow air Paletts :2 pieces : :

Condition: used, Year of construction: 1997, x-travel 660 mm y-travel 500 mm z-travel 600 mm table surface area 630 x 500 mm spindle taper SK 40 spindle turning speed range 20 - 6.300 U/min Fgedpfx Aetqqlkoa Nsi feeds 30 m/min control PHILIPS CNC 532 internal coolant system feed 40 bar total power requirement 50 kW weight of the machine ca. 13,3 t dimensions of machine 4,98 x 2,78 x 2,93 m with rotary pallet changer and hydr. swivelling head (horiz./vert.) Accessories: chip conveyor, coolant

Condition: good (used), Year of construction: 2005, operating hours: 39,256 h, functionality: fully functional, travel distance X-axis: 780 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 560 mm, total height: 2,800 mm, total length: 7,000 mm, total width: 7,000 mm, rotational speed (max.): 12,000 rpm, overall weight: 12,000 kg, For sale is a machining center by Deckel Maho, model DMC 60 T. The machine is in good condition and ready for immediate use. Fgodpfx Aswtft Nja Nsi Technical data: Year of manufacture: 2005 Operating hours: 39,256 Power-on hours: 72,107 X-axis travel: 780 mm Y-axis travel: 560 mm Z-axis travel: 560 mm Control: iTNC 530 Heidenhain Spindle speed range: 20 - 12,000 rpm Main spindle drive power: 28 / 19 kW Max. torque: 125 Nm Tool holder: SK 40 B-axis infinitely adjustable: 150° (-120/+30)° Number of pallets: 2 Pallet size: 630 x 500 mm Max. load: 400 kg Table speed range: max. 30 rpm Number of tool stations: 120 positions Max. tool diameter: 80 mm Max. tool diameter with adjacent pocket empty: 160 mm Max. tool length: 315 mm Max. tool weight: 8 kg Rapid traverse ( X / Y / Z ): 50 m/min Feed rate: 20 - 15,000 mm/min Total power requirement: 64.2 kVA Machine weight: approx. 12.0 t Floor space required: approx. 7.0 x 7.0 x 2.8 m Included in the offer: Documentation, chip conveyor, coolant system, high-pressure coolant 40 bar through spindle, paper band filter, 2-position pallet changer, tool breakage monitoring Accessories such as clamping devices or tool holders are NOT included in the offer. Transport and loading can be organised throughout Europe at additional cost upon request. Prices are subject to VAT. Inspection is possible by appointment. Please contact us; our team will be happy to assist you. Trade-in or exchange possible! Machinery purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality yet affordable metalworking machine for your production? Or do you want to sell yours? For further information or contact options, please visit our website.

Condition: used, Year of construction: 2004, x-travel 600 mm y-travel 700 mm z-travel 600 mm Control HEIDENHAIN TNC 530 Tool taper SK- 40 Tools changer 120 fach Fgjdjw Rrcqjpfx Aa Nei number of spindle speeds 12.000 U/min/rpm Machine on 32.224 Spindle hours 10.850 h weight of the machine ca. 9,5 t dimensions of the machine ca. 5,45 X 3,53 X 2,63 m

Condition: good (used), Year of construction: 2005, operating hours: 59,000 h, functionality: fully functional, travel distance X-axis: 780 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 560 mm, rapid traverse X-axis: 50 m/min, rapid traverse Y-axis: 50 m/min, rapid traverse Z-axis: 50 m/min, nominal power (apparent): 61 kVA, controller manufacturer: Heidenhain, controller model: iTNC530, workpiece weight (max.): 4,000 kg, total height: 2,800 mm, total length: 6,000 mm, total width: 6,000 mm, table width: 500 mm, table length: 630 mm, table load: 4,000 kg, overall weight: 12,000 kg, spindle speed (min.): 20 rpm, spindle speed (max.): 18,000 rpm, operating hours of spindle: 19,500 h, number of slots in tool magazine: 120, input voltage: 400 V, Equipment: chip conveyor, rotational speed infinitely variable, DMG DMC 60T RS3 with Heidenhain iTNC 530 with no maintenance backlog in good condition Ideal machine for unmanned machining, geometrically within new machine tolerance. Machine can be measured/checked on site. Machine data: Machine name: Machining center with pallet storage Manufacturer: DMG MORI Model: DMC 60T RS3 Year of manufacture: 2005 Condition: Very good Equipment: Direct path measurement in X/Y/Z (glass scales) Chip conveyor IKZ system 40 bar Extraction NC rotary table Tool magazine 120 places Heidenhain measuring probe Rotating viewing window IKZ 40 bar Signal lamp Chip flushing Operating mode 4 Technical data Number of axes 5-axis Control Heidenhain iTNC530 NC rotary table clamping surface 500mmx630mm Weight approx. 9,000 kg Chip conveyor Yes Coolant device Yes Internal coolant supply Yes Travel paths and axes X-axis 780mm Y-axis 560mm Z-axis 560mm C-axis 360° B-axis -90°/+12° Fjdpfxjrxrkls Aa Negi Feed rate and rapid traverse X-axis 50m/min Y-axis 50m/min Z-axis 50m/min B-axis - C-axis 30m/min Motor spindle Speed max. 18,000 rpm HSK A63 mount Tool changer Automatic tool changer Yes Number of magazine positions 120 Pallet changer 5 pallets

Condition: excellent (used), Year of construction: 2008, 5-axis simultaneous DMG DMC60U duoblock Very good condition! Operating hours: 78,000 h Spindle hours since replacement: 5,900 h (2022) 2023: XZ sliding plate replaced The machine can be inspected at any time by arrangement. Control: iTNC530 Heidenhain Travel: X-600 mm, Y-700 mm, Z-600 mm B-axis: -30 / -180° C-axis: 360 ° endless Spindle mount: SK40 Spindle speed: 20 - 12,000 rpm tool magazine: 60 seats Fjdpewglnysfx Aa Nogi Turntable diameter: 630 mm Pallet size: 630 mm x 630 mm Internal coolant supply (IKZ): 40 bar Belt filter system: Belt filter system equipment: Measuring probe, electric handwheel, documentation, two zero-point clamping systems; Belt filter system: Belt filter system

Condition: used, Year of construction: 2009, Technical details: turning diameter: 1000 mm swing diameter: 1000 mm Fedpfx Ajt Rmdzea Njgi Machine type: Vertical lathe Manufacturer: Hessapp Type: DV 62 Serial no.: 14.2308 Working range of the spindle Largest diameter 1000 mm Largest swing diameter 1000 mm Cross slide travel Stroke of the vertical slide 900 mm Stroke of the horizontal slide 1810 mm Total travel 2315 mm Turning spindle Spindle head with centering cone according to DIN 55021 A15 Spindle diameter in the front bearing 203 mm Main drive Via a controlled asynchronous motor and gear transmission with range switching. Spindle speeds Speed ??range I: 5 - 350 rpm. Speed ??range II: 30 - 1000 rpm. Travel speed X/Z axis: 10 m/min. W1 axis: 8 rpm No C-Axis *

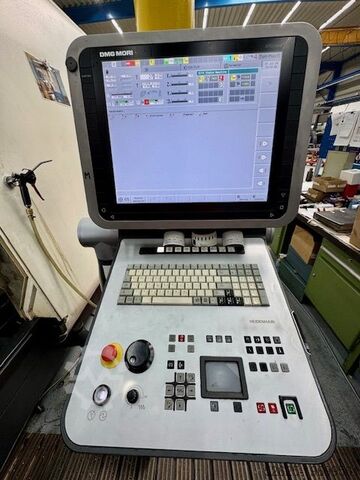

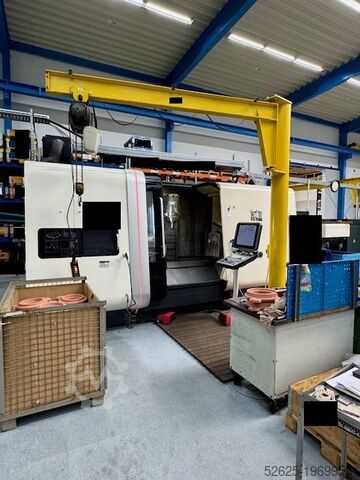

Condition: ready for operation (used), Year of construction: 2009, functionality: fully functional, CNC Turning and Milling Center - DMG GILDEMEISTER - CTX gamma 1250 TC YOM: 2009, until 2011 showroom machine, from 2012 operating The machine can be inspected by appointment in the factory under power. Condition: Good (high accuracy), ready for immediate use. Spindle hours (August 1st, 2025): 9.580 h The heart of the machine is the integrated traveling column with turning milling spindle and interpolating B-axis. Machine basic data: * Part hollow clamping device (hydraulic) * C-axis * Cross slide above with turning/milling spindle as motor spindle, with hydraulic clamping in turning, tool holder: Capto C6 * Y-axis: +/- 200 mm * B-axis: +/- 120° * Disc-type tool magazine * Absolute, direct measuring systems in X-, Y-, Z1-axis * USB-interface, Ethernet interface TECHNICAL SPECIFICATIONS: * Control: Heidenhain CNC Pilot 4290, 3-D path control TURN PLUS Working area: * Swing diameter over bed: 630 mm * Turning diameter: 630 mm * Spindle distance: 1.510 mm * Bar diameter max.: 65 mm Main drive I: * Drive power (100% / 40% ED): 24 / 34 kW * Speed range from - up to: - 5.000 rpm * Speed of the C-axis: - 5.000 rpm Turning/milling spindle: * Tool holder: Capto C6 * Spindle speed: - 12.000 rpm * Drive power (100% / 40% ED): 13.2 / 22 kW * Torque (100% / 40% ED): 60 / 100 Nm Tool magazine: * Number of tools: 36 * Dimensions of the machine approx. (Width/Depth/Height): Fedpfx Aasw Hg Nlo Nogi 6.860 x 4.220 x 2.530 mm * Total weight of the machine approx.: 18,5 tons EQUIPMENT: * Well equipped … * No steady rest available * Documentation complete available. Detailed technical data sheet and information on equipment available on request. There is no guarantee for correctness and completeness of the technical details and and accessories.
