CNC Machining Center

Deckel Maho DMF 250 linear

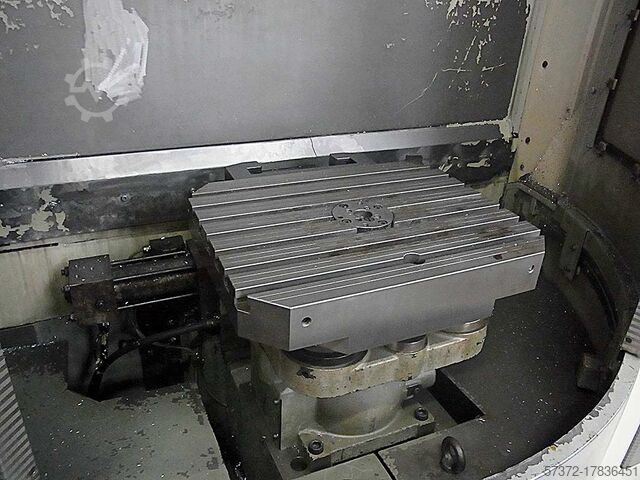

Condition: good (used), Year of construction: 2004, functionality: fully functional, travel distance X-axis: 2,500 mm, travel distance Y-axis: 900 mm, travel distance Z-axis: 900 mm, operating hours of spindle: 44,377 h, coolant supply: 40 bar, spindle nose: HSK 63, number of slots in tool magazine: 30, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, The machine is fully operational and can be inspected while powered on. Deckel Maho DMF 250 Year of manufacture: 2004 X-axis: 2500 mm Y-axis: 920 mm Z-axis: 820 mm B-axis: +/- 105° Work table: 3100 x 900 mm Spindle: HSK 63 Spindle speeds: 20 - 18,000 rpm Bledpfx Afjzaq Eco Roh Tool changer: 30 tools Control system: Heidenhain iTNC 530 Equipped with: - Chip conveyor - Coolant system through spindle, 40 bar - Operating manual Country of origin: Germany Motor power: 35 kW Machine dimensions (L x W x H): 6000 x 3800 x 2950 mm Machine weight: 25,000 kg Jakob Friedrich J. Friedrich Werkzeugmaschinen Mistelstrasse 18 75334 Straubenhardt Warehouse: Auf der Hub 10 76307 Karlsbad-Ittersbach

Condition: ready for operation (used), Year of construction: 2009, turning diameter over cross slide: 925 mm, turning length: 2,800 mm, turning diameter: 1,200 mm, spindle bore: 132 mm, spindle speed (max.): 2,000 rpm, CNC Siemens 840D Bjdpfswzyn Rjx Af Rolh 48-tool changer, Capto C8 tools chip conveyor Forkardt 400MM chuck, 2 hydraulic steady rests SMW Autoblok capacity 2800x1250MM, spindle bore 132MM weight 23,500 kg

Condition: used, operating hours: 18,001 h, travel distance X-axis: 2,500 mm, travel distance Y-axis: 920 mm, travel distance Z-axis: 820 mm, nominal power (apparent): 82 kVA, controller manufacturer: Heidenhain iTNC 530, workpiece length (max.): 900 mm, workpiece width (max.): 900 mm, total height: 3,267 mm, total length: 4,523 mm, total width: 8,436 mm, rotational speed (min.): 12,000 rpm, spindle speed (min.): 12,000 rpm, number of slots in tool magazine: 80, Year of construction: 2004 CNC controller: Heidenhain iTNC 530 Axes X-axis travel mm: 2500 Y-axis travel mm: 920 Z-axis travel mm: 820 Worktable Number of pallets: 1 Table dimensions mm: 3100 Maximum workpiece size (D x H) mm: 900 Spindle Spindle speed rpm: 12000 Spindle drive power kW: 35/25 (40/100%ED) Cooling Tank capacity: 600 Tool system Tool holder: HSK-A 100 Tool magazine slots: 80 Tool changer: Pick-up Bedpfx Aoylw D Aof Rslh With free neighboring places mm: 160 With occupied neighboring places mm: 100 Max. Tool Length mm: 250 Max tool weight kg: 12 Equipment Chip conveyor Rotating inspection windows Signal lamp Workarea light Air or water through spindle center RENISHAW Measuring probe Machine running times Under power: 61685 Spindle Working: 18001 Rated power kVA: 82 Basic machine dimensions / weight Length mm: 4523 Width mm: 8436 Height mm: 3267 Weight kg: 26000

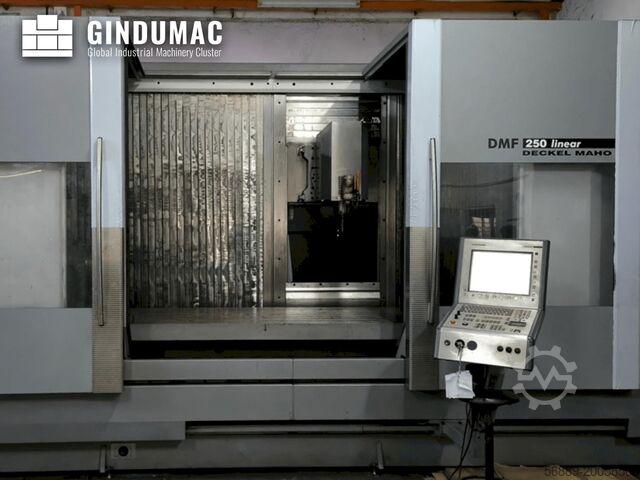

Condition: excellent (used), Year of construction: 2006, Travelling-column vertical machining centre with linear motor X-axis Control: Heidenhain iTNC 530 (3D path) Bodpfx Afsy Skmro Relh Travels: X 2,500 mm / Y 920 mm / Z 820 mm Spindle: 20 – 18,000 rpm · HSK taper

Condition: used, Year of construction: 2001, Technical details: x-travel: 2500 mm y-travel: 1000 mm z-travel: 750 mm table surface area: 3220 x 1000 mm Workpiece weight approx.: 3000 kg Bljdpfx Aovptmwof Rsh spindle taper ISO: 50 milling spindle turning speeds: 20 - 5000 U/min feed speeds: 1- 30000 mm/min rapid traverse: 30 m/min total power requirement: 40 kW dimensions of the machine ca.: 6,9 x 4,1 x 3,7 m weight of the machine ca.: 21 t with CNC HEIDENHAIN TNC 426 30-pockets autom. toolchanger RENISHAW measuring probe coolant attachment with TSC and chip conveyor diverse toolholders *

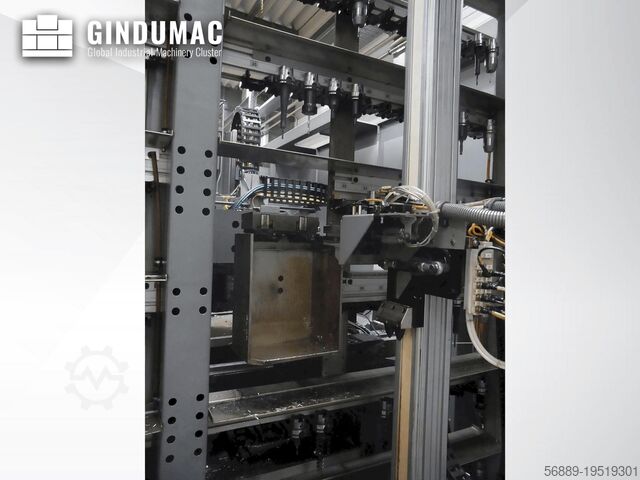

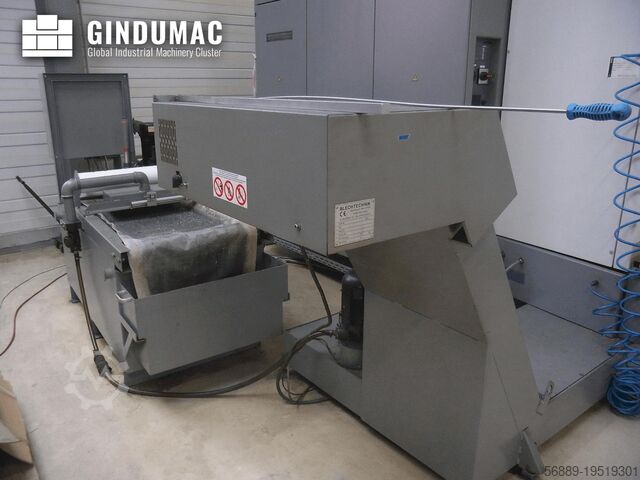

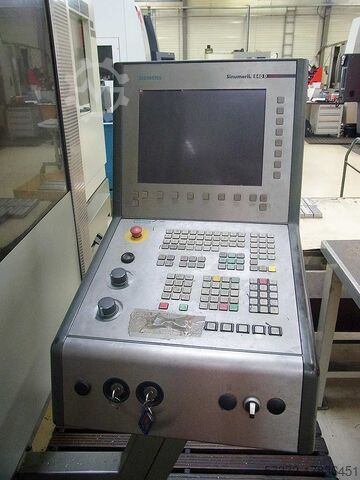

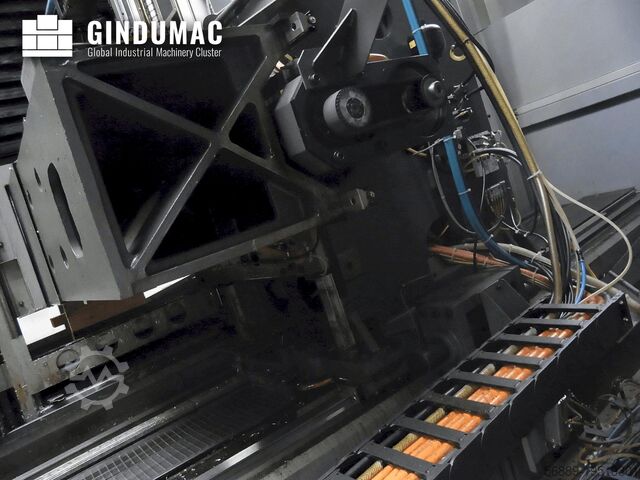

Condition: ready for operation (used), Year of construction: 2005, operating hours: 18,700 h, controller manufacturer: SIEMENS, controller model: Sinumerik, table load: 3,100 kg, overall weight: 24,500 kg, spindle speed (max.): 12,000 rpm, spindle motor power: 35,000 W, tool weight: 6,000 g, number of axes: 3, This 3-axis DECKEL MAHO DMF 250 linear was manufactured in 2005. It features a robust vertical machining center with a high-speed main drive up to 40 kW and rapid traverse rates of 100 m/min on the X-axis and 60 m/min on Y- and Z-axes. The work table measures 3,100 × 900 mm with a load capacity of 3,100 kg. If you are looking to get high-quality milling capabilities consider the DECKEL MAHO DMF 250 linear machine we have for sale. Contact us for more information. Additional equipment • Safety Equipment: Monitored and locked work area door; Key switch for normal and set-up mode; Limited functions when the door is open Machine Benefits Bsdox Nr Tuspfx Af Rjlh Technical Machine Benefits • Feed speed: up to 20000 mm/min • Clamping surface: 3100 × 900 mm • T-slots: 9 pieces, 100 mm apart • Tool magazine capacity: 30 places • Resolution of measuring system: 0. 001 mm • Electrical connections: mains connection 3n/pe~400/230 v, 50/60 hz; power consumption 82 kva • Pneumatics: compressed air 5. 5-8 bar; air volume 25 m³/h (without cooling), +20 m³/h with cooling • Weight (kg): with accessories: up to 29280 kg Extra Information Room Temperature: +15°C to +35°C Humidity: 20-75% Tool magazine size 120 -Magazine cabinet -Tool change is performed via a shuttle -Tool holder only on request and subject to availability (extra) -Machine is a 3-axis machine (rotary table not available) A further configuration or the AB is no longer available. Z-axis brake defective, roller shutter in machine room defective, screen cable defective, display defective (loose connection)

Condition: refurbished (used), Year of construction: 2005, functionality: fully functional, travel distance X-axis: 6,800 mm, travel distance Y-axis: 3,000 mm, travel distance Z-axis: 1,200 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, 5-axis gantry machining center CYPORT CP 6830 Travels X/Y/Z: 6,800 / 3,000 / 1,200 mm Gantry passage Y/Z: 3,276 / 1,405 mm Rapid Traverse X/Y/Z 30/30/30m/min 2-axis-NC-swivel head M-Series of German manufacturer Cytec: Swivel range A-axis : +/-110° Swivel range C-axis +/- 360° Powerful milling spindle of German manufacturer Cytec: Tool taper: HSK-A100 Speed: 8,000 rpm Power: 50/64 kW (100%/40% DC) Torque: 240/300 Nm (100%/40% DC) Control: HEIDENHAIN TNC 530 (Heidenhain TNC 640 / 7 possible) 5-axis path control DXF-converter CAD-Viewer KinematicsOPT Energy efficiency certificate Remote Service Tool magazine: Number of pockets: 39 pcs. HSK-A63 max. tool diameter: 125/175 mm max. tool length: 300 mm max. tool weight: 15 kg Coolant system Manufacturer: KNOLL Tank volume: 1,600 L external coolant supply: 20 bar internal coolant supply: 50 bar Paper band filter, Spray gun Chip conveyor Coolant-airblast-changeover Bljdeigrikspfx Af Rsh Work piece measuring system: Touch probe BLUM TC 60 - radio controlled Working area coverage Safety light sensors Documentation CE-certification Made in Germany

Condition: used, Year of construction: 2007, x-travel 900 mm y-travel 300 mm z-travel 1000 mm control Siemens Sinumerik 840D max. workpiece diameter 1600 mm max. module 20 mm tip circle diameter 350 mm Milling arbour diameter 375 mm Blsdpfx Afjw Rrb Hj Rsh Total closing value 80 kVa weight of the machine ca. 33,5 t dimensions of the machine ca. 10,530 x 6,375 x 4,680 m Feed rate: - X-axis 1 to 3000 mm/min - Y-axis 1 to 3000 mm/min - Z-axis 1 to 4000 mm/min Spindle speeds in rpm: - Tool 26 to 265 - Workpiece table 0 to 8 Equipment/accessories: - M 2 motor milling head - Milling mandrels - Oil cooler - Technical documentation

Condition: used, Year of construction: 2017, pipe diameter (max.): 80 mm, mandrel length: 4,500 mm, Mandrel bending machine S8004 ----- For the production of dimensionally accurate pipe geometries with bending radii of up to 1.5XD → maximum bending performance pipe 76 x 4 mm (400 N/mm²) → maximum bending performance pipe 60 x 60 x 3 mm (400 N/mm²) → maximum bending performance pipe 76 x 2.9 mm (stainless steel) → total connected load 7 kW → pipe length 4.5 mtr Robust and durable steel construction in a force-locking connection - no construction susceptible to torsion due to, for example, the split construction of the bending head and mandrel carrier. Maintenance-free electromechanical drive of the bending axis. The touch display of the control enables simple and intuitive programming and use of the system. After the pipe has been pushed on, it is fixed in the carriage by the chuck. This enables the pipe to be positioned precisely and thus the creation of dimensionally accurate geometries. The standard also includes checking the pipe geometry before the bending process: If the bending process is started in the wrong position, the machine does not give permission for this. This prevents incorrect operation. Optional additional features provide more convenience and increase the output and thus the efficiency of the system. Data is exchanged from the optional pipe calculation program TBS-3D (PC version) via USB stick or via FTP access from the computer to the machine control system. USB or LAN connectors (RJ45) are available as standard. Existing pipe geometries can be converted quickly and easily, for example, using the STEP format. Standard equipment: Bljdettah Rjpfx Af Roh → Electromechanical drive of the bending axis 4 kW → Speed 2.9 rpm (=17°/sec.) → Bending direction left → Bending angle resolution 0.1° → Max. bending radius 200 mm → Bending shaft diameter 50 mm → Electronic length measurement ±0.1mm → Electronic twist measurement ±0.1° → Manual stop system (overtravel stops in length) → Manual locking system (15° in twist) → Three-jaw chuck for locking the pipe in the carriage → External control panel PLC control: → Touchscreen 10.1" → ETH 10/100, X2X Link, USB → Foot switch operation → Data transfer via network (W)LAN or USB → Material database Unique graphic programming: Simple geometries can be calculated directly on the machine. The control calculates the feed values directly after entering the length and angle and the bending angles. Hydraulics: → Hydraulic power 3 kW → Hydraulic pipe clamping with adjustable clamping pressure → Programmable early mandrel retraction Options (can be ordered as additional equipment): → Variable bending speed using frequency converters or servo motors → Automatic tool retraction (manual or controlled) → Pneumatic chuck → Automatic mandrel lubrication → Pneumatic stop system (length + twist) → Mobile version (rollers) → Radius extension Pictures show new machine

Condition: good (used), total width: 3,500 mm, total length: 19,000 mm, total height: 2,100 mm, workpiece weight (max.): 6,000 kg, grinding diameter: 850 mm, grinding length: 6,000 mm, center height: 425 mm, Cylindrical grinder Schmaltz - RM 82/6000 MACH-ID 9492 Make: Schmaltz Type: RM 82/6000 Centre height: 425mm Grinding Ø: 850mm Grinding length: 6000mm Grinding stone dimensions:1100 x 80 x 560mm Grinding stone speeds: 700Rpm Table inclasement: -5 to +5° Tailstock: 160 x 100Mk Length: 19000mm Width: 3500mm Height: 2100mm Bsdpfxoy Dr Eas Af Rslh Weight: 31000kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
