Milling machining centers - universal

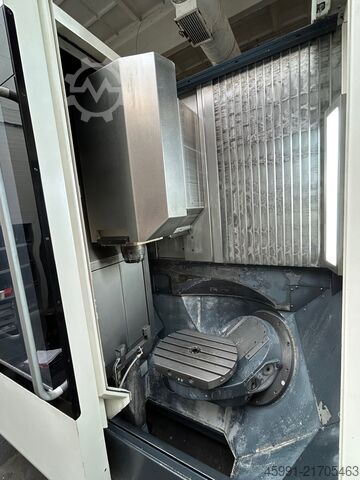

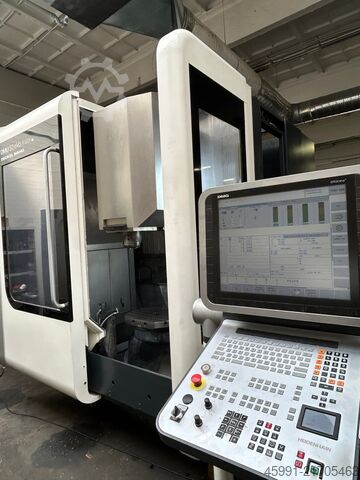

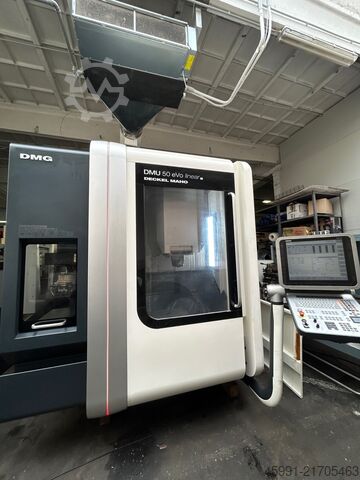

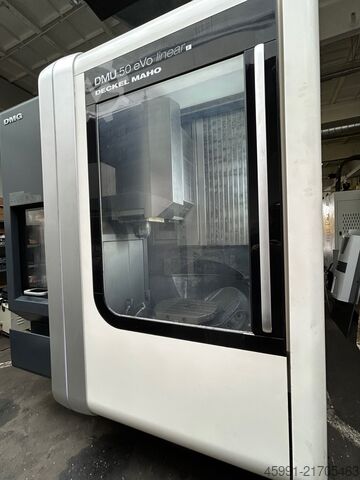

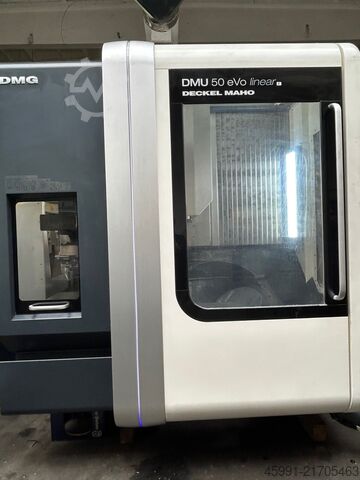

Deckel Maho DMU 50 evo linear

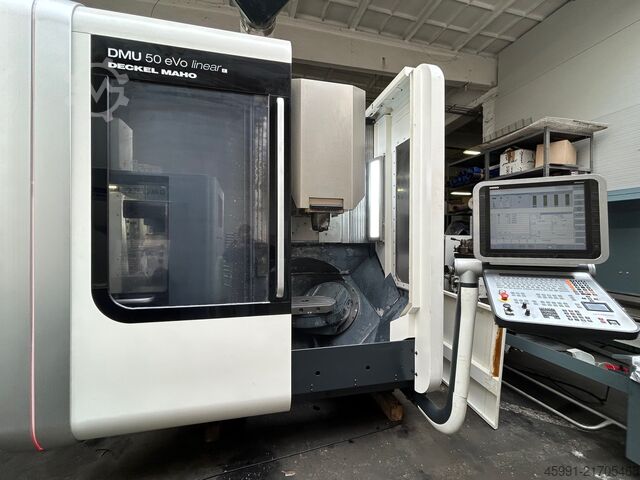

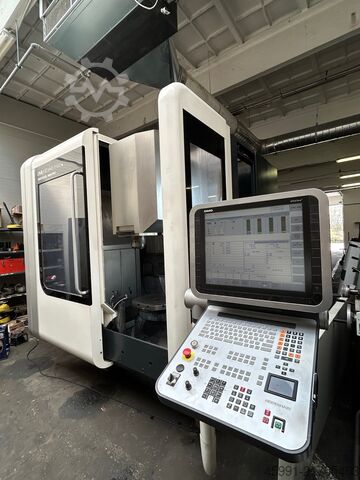

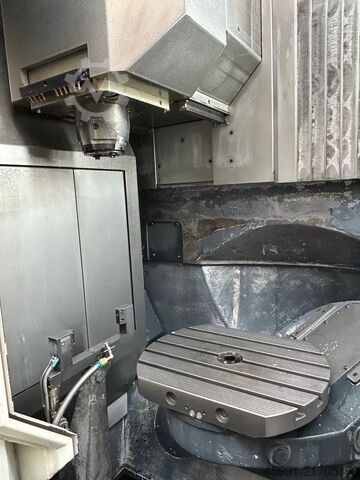

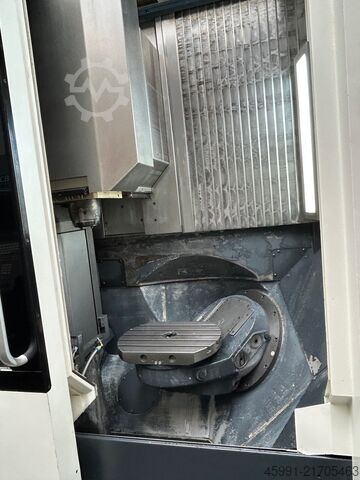

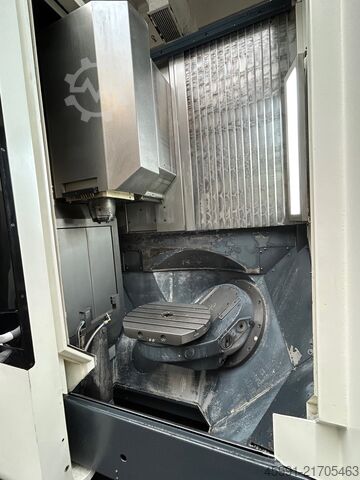

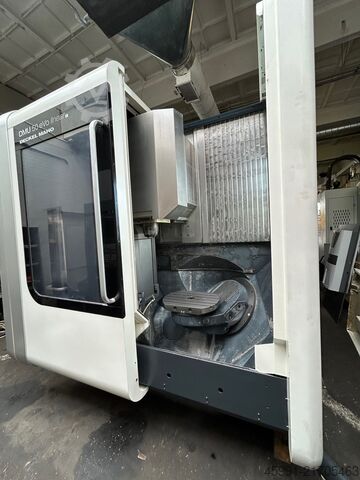

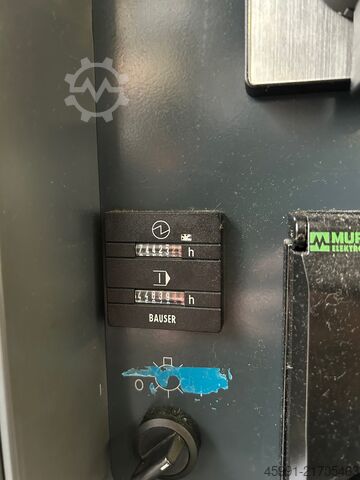

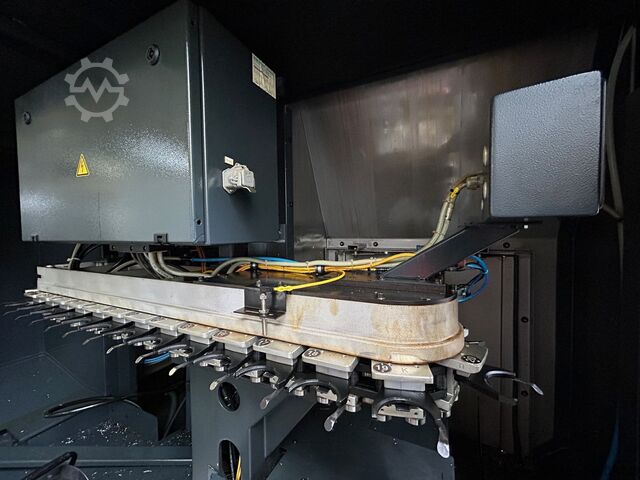

Condition: ready for operation (used), Year of construction: 2005, operating hours: 42,768 h, controller manufacturer: HEIDENHAIN, spindle speed (max.): 18,000 rpm, number of axes: 5, This 5-axis DMG DECKEL MAHO DMU 50 eVo linear was manufactured in 2005. It features a HEIDENHAIN control, a 40bar IKZ, a 60-tool magazine, and a spindle speed of 18k rpm. The machine includes automation capabilities fully adjustable for different product formats and positioning. If you are looking to get high-quality milling capabilities, consider the DMG DECKEL MAHO DMU 50 eVo linear machine we have for sale. Contact us for more information. • Tool magazine: 60 tools • Through-spindle coolant (IKZ): 40 bar • Spindle overhauled in 2024 • B and C axes overhauled in 2024 Additional equipment • Automation (product handling), freely adjustable for product format and positioning • Paper belt filter • Blum laser tool break detection • Extraction system excluded Gebwxtsx Rd Hpjbaskc Technical Specification Taper Size SK 40

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 400 mm, workpiece length (max.): 630 mm, workpiece width (max.): 630 mm, workpiece height (max.): 500 mm, workpiece weight (max.): 200 kg, total height: 2,590 mm, total length: 4,780 mm, total width: 4,410 mm, table height: 390 mm, table length: 390 mm, overall weight: 5,900 kg, spindle speed (max.): 18,000 rpm, spindle motor power: 25 W, number of slots in tool magazine: 30, Equipment: chip conveyor, Year of construction: 2010 CNC controller: Heidenhain iTNC 530 Axes X-axis travel mm: 500 Y-axis travel mm: 450 Z-axis travel mm: 400 C-axis degrees: 360º (0,001) B-axis degrees: 0º/108º (0,001) Rapid traverse m/min: 80/50/50 Milling/turning table nc: Table dimensions mm: Ø390 Maximum workpiece size (D x H) mm: Ø630x500 Max. workpiece weight kg: 200 Spindle Spindle speed rpm: 18000 Spindle drive power kW: 35/25 (40%ED/cont) Spindle torque Nm: 130/87 Tool system Tool holder: HSK-A 63 Tool magazine slots: 30 With free neighboring places mm: 130 With occupied neighboring places mm: 80 Max. Tool Length mm: 300 Gjbwxtboz Dp Dbeajkc Chip-to-chip time s: 5 Equipment Chip conveyor Infrared probe Rinsing gun blowing air through spindle center selectable via M-function Signal lamp Laser tool measurement for measuring tool length and diameter Programmable coolant nozzles Heat compensator Direct measuring system XYZ Electrical cabinet active cooling unit Oil skimmer Ready for internal cooling (40/80 bar) RENISHAW Measuring probe Automatic door Machine running times Under power: 54257 Spindle Working: 32498 Rated power kVA: 48 Basic machine dimensions / weight Length mm: 4780 Width mm: 4410 Height mm: 2590 Weight kg: 5900

Condition: used, Year of construction: 2011, operating hours: 26,476 h, functionality: fully functional, workpiece height (max.): 500 mm, workpiece diameter (max.): 630 mm, workpiece weight (max.): 200 kg, total height: 2,590 mm, total length: 4,780 mm, total width: 4,410 mm, table height: 390 mm, table length: 390 mm, overall weight: 5,900 kg, spindle speed (max.): 18,000 rpm, spindle motor power: 25 W, number of slots in tool magazine: 30, Equipment: chip conveyor, Year of construction: 2011 CNC controller: Heidenhain iTNC 530 Axes X-axis travel mm: 500 Y-axis travel mm: 450 Z-axis travel mm: 400 C-axis degrees: 360º (0,001) B-axis degrees: 0º/108º (0,001) Rapid traverse m/min: 80/50/50 Milling/turning table nc: Table dimensions mm: Ø390 Maximum workpiece size (D x H) mm: Ø630x500 Max. workpiece weight kg: 200 Spindle Spindle speed rpm: 18000 Spindle drive power kW: 35/25 (40%ED/cont) Spindle torque Nm: 130/87 Tool system Tool holder: HSK-A 63 Tool magazine slots: 30 With free neighboring places mm: 130 With occupied neighboring places mm: 80 Max. Tool Length mm: 300 Chip-to-chip time s: 5 Equipment Chip conveyor Infrared probe Rinsing gun blowing air through spindle center selectable via M-function Signal lamp Laser tool measurement for measuring tool length and diameter Programmable coolant nozzles Heat compensator Direct measuring system XYZ Electrical cabinet active cooling unit Gjbwoz Dku Usxtbajkc Oil skimmer Ready for internal cooling (40/80 bar) RENISHAW Measuring probe Automatic door Machine running times Under power: 43774 Spindle Working: 26476 Rated power kVA: 48 Basic machine dimensions / weight Length mm: 4780 Width mm: 4410 Height mm: 2590 Weight kg: 5900

Condition: used, Year of construction: 2006, Milling machines Travel distance X: 500 mm Travel distance Y :450 mm Gjbwxtjzwqvhebaokc Travel distance Z: 400 mm Number of axis: 5 milling machine / machining center Control: Heidenhain iTNC 530 table size X: 500 mm table size Y: 380 mm tool changer: 30 - time control Heidenhain Machining center - Universal Rotary table (B / C axis) Swivel milling head (B axis) HSK63 tool holder Cooling unit Rotary table: C-axis +/-360°, B-axis 108° Max. table load: approx. 500 kg Speed range - main spindle: 20 - 18,000 rpm Feed rates: 20 - 50,000 mm/min Machine weight approx.: 6.0 tons Machine dimensions approx.: 3.8 x 3.2 x 2.5 meters

Condition: good (used), Year of construction: 2006, TECHNICAL DATA Main drive Speed: Infinitely programmable: 18`000 rpm In set-up mode: 20 - 800 rpm Work spindle: Hollow shank taper: HSK-A63 Tool clamping: Hydraulic Feed drive Linear motor: X-axis AC servomotors: C, B, Y, Z Feed speed X, Y, Z: Up to 20`000 mm/min Rapid traverse Y, Z: 50 m/min Gebwsu Hkb Rsxtbajkc X: 80 m/min B: 40 rpm C: 50 rpm Position measuring system Resolution: C, B, X, Y, Z: 0.001 mm Position tolerance: C, B, X, Y, Z: 0.010 mm Working range X-axis: 500 mm Y-axis: 450 mm Z-axis: 400 mm B-axis: 0° to 161.955 ° C-axis: n x 360 ° Tool changer with double gripper Magazine slots: 120 Max. Tool diameter without free spaces: 80 Max. Tool diameter with free spaces: 130 Max. Tool length from spindle nose: 300 mm Max. Tool weight: 6 kg NC rotary table with swivel axis C-axis: Clamping surface rotary axis (mm): 500 x 380 mm Distance of T-slots / size: 63 / 14 H7 Centering bore: 30 H6 Max. Torque: 1491 Nm Max. Rotation of the table top: 50 rpm B-axis: Max. Swivel torque: 1864 Nm Swivel speed: 40 rpm Swivel range: 0° - 161.955 ° Input and display precision: 0.001 ° Weight: 420 kg Max. load: 200 kg Weight: Approx. 6800 kg Installation weight: Approx. 7500 kg Dimensions: 4170 x 3133 x 2560 mm SCOPE OF OFFER U.A: (list not exhaustive): Deckel Maho DMU 50 Evo CNC machining center Heidenhain iTNC 530 Tool breakage control Blum measuring probe Oil mist separator Fire extinguishing system High-pressure pump and belt filter system Chip conveyor Exact scope of supply according to photo gallery We assume no liability for the accuracy, completeness and up-to-dateness of the information provided
