Milling machine

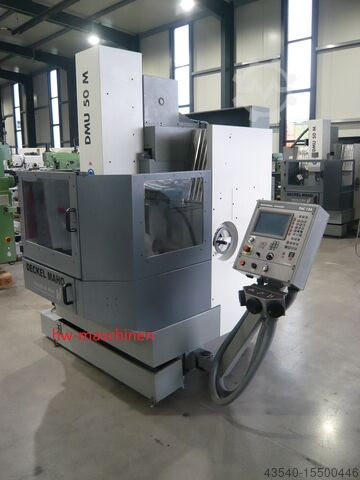

Deckel Maho DMU 50M

Condition: ready for operation (used), Year of construction: 2001, Immediately available ex-site: 5-Axis Machining Centre Deckel Maho Model: DMU 50 M Year of manufacture: 2001 Control system: Heidenhain TNC 124 5 axes (3 + 2) Manual rotary axes with B and C swivel rotary table B and C axes are displayed on the control Table size: 700 x 500 mm Travel paths X/Y/Z: 500 / 400 / 400 mm Table load capacity: 200 kg Spindle taper: SK 40 Spindle speeds: 20 – 4,500 rpm Drive power: 9 / 13 kW C-axis rotation range: 360 degrees Swivel range: plus 95 / minus 10 degrees Feed rate up to 5,000 mm/min Spindle speeds: 20 – 4,500 rpm Weight: 3 tonnes Coolant system Nodpfx Aey E Ncxeg Dewf Price: EUR 8,500.— net, ex-site, plus VAT.

Condition: excellent (used), Selective DMG Mori Type: LASERTEC 30 SLM Selective Laser Melting Machine Technical Specifications: Build volume: 300 x 300 x 300 mm Layer thickness: 20-100 µm Materials: Tool steel, stainless steel, cobalt-chrome alloys, titanium, aluminum, precious metal alloys, Inconel Laser: Ytterbium fiber laser Laser type: YLR-600-WC Dimensions: 448 x 580 x 132 mm Weight: 40 kg Cooling: Water Central wavelength range: 1070 ±10 nm Modulation frequency: 0-50 kHz Average power, max. 600 W Power adjustability: 10-100% Beam parameter: 0.37 mm x mrad Condition: used Nwedpfxeu Ebv As Ag Def Scope of delivery: (See picture) (Subject to change and error in technical specifications and details!) We are happy to answer further questions by phone.

Condition: good (used), functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, Heidenhain TNC 310 cnc control Nodpoy E Iztjfx Ag Dewf C and B-axis manual with display swivel rotary table electronical hand wheel coolant device Technische Daten: Längsweg (X-Achse) / X-travel longitudinal 500 mm Querweg (Y-Achse) / Y-travel cross 400 mm Senkrechtweg (Z-Achse) / Z-travel vertical 400 mm Werkzeugaufnahme / spindle taper SK40 Drehzahlbereich / spindle speed range 20-4500 UpM Vorschub / feed 5000 mm/min. Gewicht ca. / weight ca. 2800 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

Condition: excellent (used), Year of construction: 2002, functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, feed rate X-axis: 5 m/min, feed rate Y-axis: 5 m/min, feed rate Z-axis: 5 m/min, spindle speed (max.): 4,500 rpm, Equipment: rotational speed infinitely variable, Dear Sir or Madam, For sale is a 3+2-axis CNC machining center, type Deckel Maho DMU50M. The Heidenhain TNC310 contouring control (also available with Siemens 810D!) makes the DMU a fully-fledged CNC machine for both production and training applications. Due to the absence of a tool changer and the conveniently positioned maintenance doors, the DMU50M requires very little space and can be positioned almost directly against a wall. The machine has been thoroughly tested in our workshop, is therefore in excellent condition, and is ready for immediate use. We look forward to receiving your inquiry! Delivery time: immediately available Machine no. xxxx Year of manufacture: 2002 Control: Heidenhain TNC310 or Siemens 810D (including Shopmill) Table design: Rotary and tilting table Speed: 20-4500 rpm, continuously programmable Feed rate: 0-5000 mm/min, continuously programmable Travel ranges X/Y/Z: 500/400/400 mm Tool holder: SK40 Tightening system: pneumatic Handwheels: 3-axis electronic / B+C axes mechanical Weight: approx. 2800 kg Further equipment and accessories: upon request Our service promise to you: - We are a certified master machine shop Nodpfev Sy Sfsx Ag Dswf - All machines are thoroughly checked - All lubricants and any worn parts are replaced in advance - Upon request, we can completely or partially overhaul the selected machine - About the paint color of the selected machine You can decide freely. - If you wish, you can order additional accessories such as tools, etc. directly. - If you wish, we can install additional accessories such as safety devices, etc. - We are happy to take care of shipping and/or installation.

Condition: ready for operation (used), Year of construction: 2005, travel distance X-axis: 780 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 630 mm, number of axes: 5, This DMG DECKEL MAHO DMC 60T was manufactured in 2005. A Universal machining centre, it offers robust construction and reliable performance for precision machining tasks. Consider the opportunity to buy this DMG DECKEL MAHO DMC 60T Universal machining centre. Contact us for more information. Machine Benefits Technical Machine Benefits • Machine with nc rotary table and tool magazine for 60 tools: approximately 9610 kg • Belt filter system 900 l: approximately 850 kg • Installation weight of machine with max weight for workpiece, tools, and operating materials, belt filter system: maximum 11500 kg • B-axis complelty overhauled Nwedpfsx Hbmfex Ag Dsf Extra Information Machine still under power // Contril unit: Heidenhain: MILL PLUS 2-fold pallet change. IKZ spindle with 12000 rpm, 40 bar Operating mode 4 for working with open door. Blum laser, with tool measurement and tool breakage control. Preparation for Blum 3D probe. Probe is not included in the scope of delivery. 900 liter cooling water tank with belt filter

Condition: used, x-travel 500 mm y-travel 400 mm z-travel 400 mm Q U O T A T I O N We are pleased to offer you ex our stock, subject to prior sale, and error in technical data : DECKEL MAHO CNC Universal Milling Machine model DMU 50 M year 1998 Working range: Longitudinal stroke X Axis 500 mm Vertical stroke Z Axis 400 mm Cross stroke Y Axis 400 mm C-axis – table turning, manual 360 ° B-axis – table swivelling, manual ° Table area Ø 700 x 500 mm Inclination range of table (manually) + / - ° Rotation of table (manually) 360 ° Max. Table load approx. 200 kg Maximum distance table – spindle nose 550 mm horizontal distance machine – spindle nose 2 – 6 mm Tool holder Taper ISO 40 Spindle speeds 20 – 4,500 rpm Feed rate max. 5.000 mm/min AC main drive, 0% / 40% power-on time approx. 9 / 13 kW Total electrical load, approx. 15 kW - 400 V - 50 Hz Weight, approx. 3,000 kg Accessories / Special Features • 3 Axis HEIDENHAIN Point to Point Control Model TNC 124 with Monitor, direct programming and input of data and electronic handwheels. • All 3 axis are operated by the milling head, the table is stationary so also out of proportion workpieces can be machined. • Rotary Table can be manually rotated 360° and manually inclined + / -° (each with clamping). The digital read-out of the angles is integrated in the CNC control • Simple coolant unit with pump and tank, built-on switch cabinet (SIEMENS parts) • Pneumatic tool claomping, Some tool holders available, manuals, CE-Certificate, etc. Condition : very good condition ! Ideal for training center or single parts machining ! Please click here to view a video of the machine running : ! Delivery : immediately available, FCA Metzingen Payment : 0 % Net, after conclusion of contract, before loading We always have a large selection of milling machines - CNC or conventional - available. Please let us know your requirements. Nodpfsv Td Eljx Ag Djwf

Condition: good (used), Year of construction: 2004, functionality: fully functional, Universal machining centre Deckel Maho DMU 50 M with Heidenhain TNC 310 CNC control. Swivel-rotary table, SK 40 spindle taper with hydraulic drawbar. In good working condition, can be inspected under power. Njdpfx Ajytpy Ejg Dswf

Condition: ready for operation (used), Year of construction: 2011, Make: DMG Type of machine: DMC 60 T Year of manufacture: 2011 Control system: Heidenhain iTNC 530 Machine's weight: ca. 9 t Tool holder: SK 40 x-travel: 780 mm y-travel: 560 mm z-travel: 560 mm Speed range: 12.000 1/min Number of tools in the magazine: 120 Pl. Internal coolant supply: 40 bar. 3D Measuring probe: Heidenhain TS641 : 360 ° Njdpfx Agjxg Tdyj Djwf : x

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, rotational speed (max.): 4,500 rpm, controller model: Heidenhain TNC 310, TECHNICAL DETAILS X-axis travel: 500 mm Y-axis travel: 400 mm Z-axis travel: 400 mm Tool holder: SK 40 Spindle speeds: 20-4500 rpm MACHINE DETAILS Control: Heidenhain TNC 310 Dimensions & Weight Space requirements: approx. 2.15 x 2.00 x 2.50 m Machine weight: approx. 3 t EQUIPMENT Nwsdpfx Ageywgtxs Djf Swivelling rotary table Documentation

Condition: reconditioned (used), Year of construction: 2001, Universal milling & drilling machine DECKEL MAHO DMU 50 M With control Heidenhain TNC 320 Year of construction: 2001 Travels: X 500 Y 400 Z 400 Speed range: 20 - 4,500 rpm infinitely variable Nwodpsuw Sd Isfx Ag Djf With the following accessories: Manual swivel rotary table with digital display for C + B axis 700 mm x 500 mm clamping surface Electronic handwheel for X , Y , Z axis Splash guard cabin Machine light 4 pcs. Height-adjustable machine shoes Coolant device Operating instructions

Condition: excellent (used), Year of construction: 2002, functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, spindle speed (max.): 4,500 rpm, spindle speed (min.): 50 rpm, For sale is a Deckel Maho machining center, type DMU 50 M with path control and manual rotation axes The machine is in very good condition, fully functional and ready for immediate use. Particularly noteworthy is the possibility of working in an open cabin Technical data: Year of construction: 2002 Control: Heidenhain TNC 124 X-axis: 500 mm Y-axis: 400 mm Z-axis: 400 mm Feed speed: 5,000 mm/min Rapid traverse: 5 m/min Tool holder: SK 40 Clamping surface: Ø 700 x 500 mm Rotation range: 360 ° (mechanical) Swivel range: +90/ - 15 ° (mechanical) Max. load: 200 kg Space requirement: 4,000 x 3,500 x 2,518 mm Transport dimensions: approx. 2,500 x 1520 x 2,200 mm Weight: 2,600 kg Additional tool holders available on request Transport and loading can be organized on request, at an extra charge. can be organized throughout Europe. Prices plus VAT Viewing possible by appointment. Contact us, our team will be happy to help you. Trade-in or exchange possible! Machines purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours? For further information or contact options, please visit our website Nwodpou Unh Iefx Ag Def

Year of construction: 1997, condition: ready for operation (used), A CNC universal milling and boring machine Decke Maho is available. Travel X/Y/Z: 500mm/400mm/400mm, power: 7kW/5kW, torque: 88Nm/63Nm, speed: 4500rpm, tool interface: SK40, feed rate: 5m/min, rapid traverse: 5m/min, rotary table diameter: 700mm, max. workpiece height: 500mm, max. table load: 200kg, machine dimensions X/Y/Z: approx. 3200mm/1650mm/2550mm, weight: approx. 2600kg, control: Heidenhain TNC 124. Documentation available. On-site inspection is possible. Nsdpfxsyddyuo Ag Djwf

Condition: used, Year of construction: 2000, Technical details: x-travel: 500 mm y-travel: 400 mm z-travel: 400 mm b-axis: manuell positionierbar ° c-axis: manuell positionierbar control: Heidenhain TNC 124 tool changer with: nein Plätze spindle taper MT: SK40 Revolution per minute: 4500 U/min. feed speeds infinitely variable: X/Y/Z: max. 14000 mm/min Njdpfx Asu Idffsg Dewf rapid traverse:: 5,0 m/min table-size: 700 x 500 mm total power requirement: 17 kVA Weight approx.: 2,91 t dimension machine xH: 2,0 x 2,0 x 2,5 m CNC universal vertical milling machine The machine has 5 axes. B- and C-axis manual with measuring system. B-axis table swivel -10° / +95° and C-axis table rotate 360° (not interpolatable, manually selectable via control). Cooling device (without pump) Operation via swiveling boom *
