Machining Center - Universal

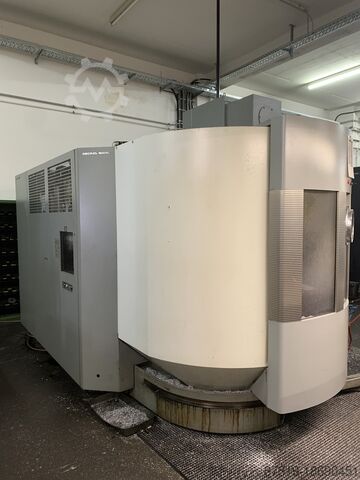

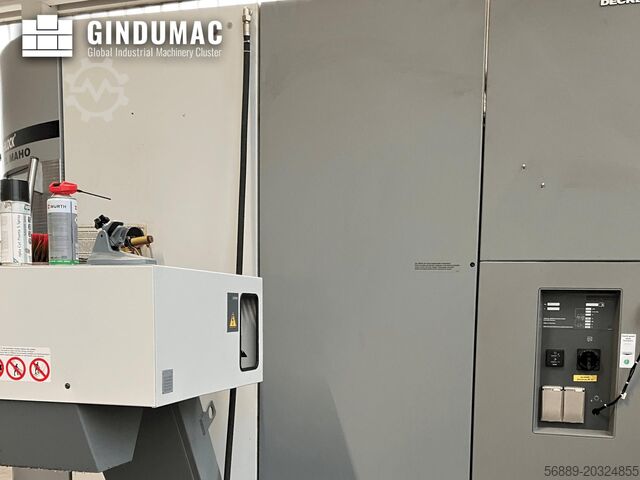

DECKEL MAHO DMU 60 monoBLOCK

Condition: ready for operation (used), Year of construction: 2005, operating hours: 42,339 h, travel distance X-axis: 730 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 510 mm, controller manufacturer: HEIDENHAIN, controller model: TNC530, spindle speed (max.): 18,000 rpm, number of slots in tool magazine: 24, number of axes: 3, This 3-axis DMG DECKEL MAHO DMU 60 monoBlock was manufactured in 2005. It features a chip conveyor and a coolant system, ideal for complex machining tasks. If you are looking to get high-quality milling capabilities, consider the DMG DECKEL MAHO DMU 60 monoBlock machine we have for sale. Contact us for more information. • Heidenhain TNC530 • 24 tool positions • SK-40 chuck • Spindle speed: 18,000 Cedjx D Nwkepfx Af Djha • measuring probe Technical Specification Through-spindle Coolant Yes Taper Size SK 40

Condition: like new (used), Year of construction: 2011, functionality: fully functional, operating hours: 1,013 h, travel distance X-axis: 620 mm, travel distance Y-axis: 520 mm, travel distance Z-axis: 460 mm, controller manufacturer: Siemens, table length: 1,100 mm, table width: 560 mm, controller model: 840d SL ShopMill Operate, rotational speed (max.): 12,000 rpm, operating hours of spindle: 203 h, For sale is a machining center of the brand Spinner and the type P3-620 The machine has an internal 2 compartment pallet changer, which makes it possible to set up during the work process. Particularly noteworthy are the 203 spindle hours and the very good condition of the machine Technical data: Year of construction: 2011 Control: Siemens 840d-SL ShopMill Operate Spindle speed: 12,000 1/min Spindle holder: SK 40 Table dimensions: 1,100*560 mm Travel X 620 mm Travel Y: 520 mm Z travel: 460 mm Cedpfx Ast Sftwef Doha Tool changer: 32 pockets (chain) Tool changer head: double arm Pallet changer: 2-fold (180 °) Machine lighting, Chip conveyor in the milling area, Chip conveyor scraper belt with coolant device Belt filter system with IKZ 40 bar Hydraulic oil cooling system, Rotary feed-through in the table On request, loading and transport (Europe-wide) can be organized for an additional charge. Prices plus VAT Viewing possible by appointment. Please contact us, our team will be happy to help you. Trade-in or exchange possible! Machines purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours? For further information or contact options, please visit our website

Condition: used, Year of construction: 2011, x-travel 630 mm Cjdpfezluh Dex Af Djha y-travel 560 mm z-travel 560 mm control iTNC 530 Heidenhain turning speed range - main spindle max. 24.000 min/-1 power capacity - main spindel 19 / 26,7 kW max. Torque 85,6 / 60,9 Nm tool taper HSK-A 63 swivellable NC: ° table surface area 1.000 x 600 mm table diameter Ø 600 mm T-slots 1x 14 x H7, 8x 14 H12 max. table load 500 kg rotatable C: 360 ° number of toolpositions 2x12 (24) pos. tool taper HSK-A 63 max. tool diameter 80 mm max. tool-dia with free toolbox 130 mm max. tool weight 8,0 kg max. tool length 315 mm total power requirement 49,7 kVA weight of the machine ca. 6,8 t dimensions of the machine ca. 4,5 x 4,5 x 2,5 m CNC - MachiningCenter Universal DECKEL MAHO - DMU 60 monoBLOCK - Swivel-Millinghead - Safety package for power failure - only 3.800 spindle hours

Condition: used, Year of construction: 2006, x-travel 630 mm y-travel 560 mm z-travel 560 mm table surface area 1000 x 600 mm spindle taper HSK 63 A spindle turning speed - stepless 18.000 U/min feeds x/y/z -stepless 0 - 30.000 mm/min rapid traverse 30 m/min no. of tools in magazin 2 x 12 workpiece diameter at full load 130 mm tool length - max. 315 mm weight of tools max. 8 kg internal coolant system feed 40 bar control HEIDENHAIN Chodpsy Tyzuefx Af Dsa control MillPlus iT table load capacity max. 500 kg total power requirement 52 kVA weight of the machine ca. 6,5 t dimensions of machine L x W x H 3,40 x 1,86 x 2,42 m Accessories: probe HEIDENHAIN, TS 640; electron. handwheel, mech. vice (jaw width 160 mm), chip conveyor, coolant with bandfilter

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, travel distance X-axis: 730 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 425 mm, rapid traverse X-axis: 60 m/min, rapid traverse Y-axis: 60 m/min, rapid traverse Z-axis: 60 m/min, torque: 90 Nm, controller manufacturer: Siemens, controller model: 840D PL, overall weight: 10,000 kg, spindle speed (max.): 12,000 rpm, coolant supply: 25 bar, number of spindles: 1, number of slots in tool magazine: 20, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, We are Chiron experts. The machine is currently being partially overhauled and is in very good condition. If a probe or another option is needed, we can gladly provide it for an additional charge. FZ15W with 4th and 5th axis Machine dimensions: approx. 4200mm x 2400mm Travel range -X = 730mm -Y = 400mm -Z = 425mm Control: 840D Powerline Main spindle: -Speed: 12,000 rpm -Tool holder: SK40 Codpfx Ajwpcfuof Dsha -Torque: max. 90NM Tool changer -Tool places: 20 Workpiece changer -Peiseler table with Afrocontroller Chip conveyor Coolant system with internal and external cooling Hydraulic clamping device Complete documentation available Geometry tip-top HS runout 0.008mm QC20 measurement 12.6µm (Manufacturer's tolerance 18µm, new machine 23µm, used machine) The machine can be inspected under power.

Condition: used, Year of construction: 2011, x-travel 630 mm y-travel 560 mm z-travel 560 mm control iTNC 530 Heidenhain turning speed range - main spindle max. 12.000 min/-1 power capacity - main spindel 10 / 15 kW max. Torque 130 / 87 Nm tool taper HSK-A 63 swivellable NC: ° table surface area 1.000 x 600 mm table diameter Ø 600 mm T-slots 1x 14 x H7, 8x 14 H12 max. table load 500 kg rotatable C: 360 ° number of toolpositions 2x12 (24) pos. tool taper HSK-A 63 max. tool diameter 80 mm max. tool-dia with free toolbox 130 mm max. tool weight 8,0 kg max. tool length 315 mm total power requirement 45 kVA weight of the machine ca. 6,8 t dimensions of the machine ca. 4,5 x 4,5 x 2,5 m CNC - MachiningCenter Universal DECKEL MAHO - DMU 60 monoBLOCK - Swivel-Millinghead - Package for tropical climate Chsdpfxsyz Dcfj Af Doa

Condition: used, Year of construction: 2008, x-travel 630 mm y-travel 560 mm z-travel 560 mm control iTNC 530 Heidenhain turning speed range - main spindle max. 18.000 min/-1 Chsdpfx Aox A H Rlof Dja power capacity - main spindel 10 / 15 kW max. Torque 130 / 87 Nm tool taper HSK-A63 swivellable NC: ° table surface area 1.000 x 600 mm T-slots 9x 14 x H7 max. table load 700 kg number of toolpositions 60 pos. tool taper HSK-A63 total power requirement 49,7 kVA weight of the machine ca. ca. 11,0 t dimensions of the machine ca. 4,5 x 4,5 x 3,5 m CNC - MachiningCenter Universal DECKEL MAHO - DMU 60 monoBLOCK - 4 axes (+ NC dividing head) - Swivel-Millinghead - Spindle refurbished - NEW X, Y, Z guideways - NEW ball screws - NEW X-axis bellows
