Tool room milling machine

DECKEL FP 1

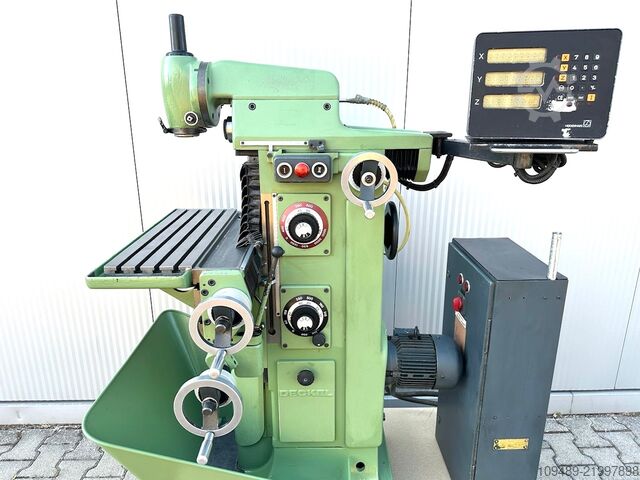

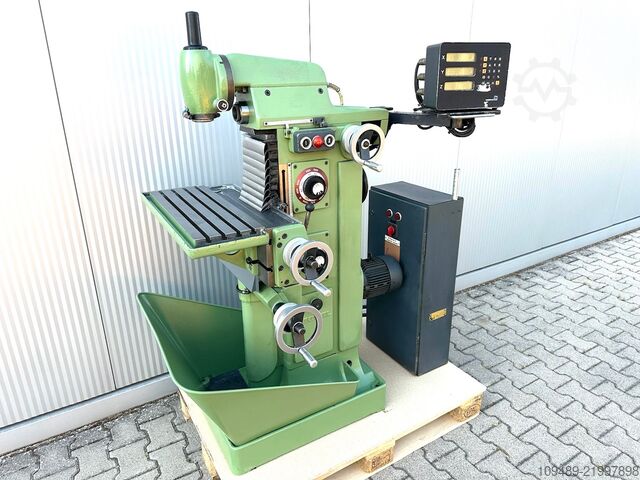

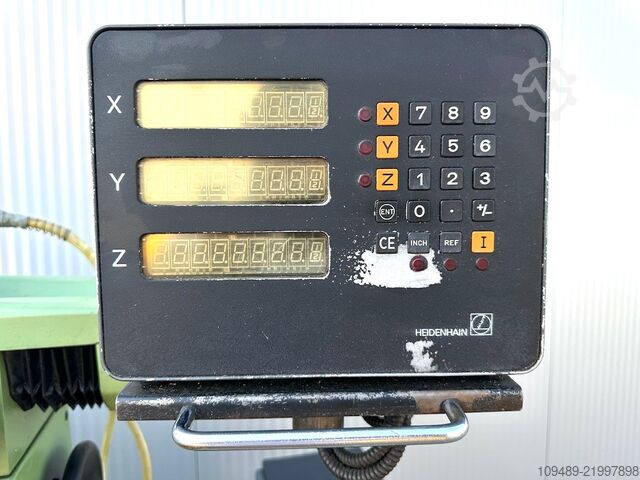

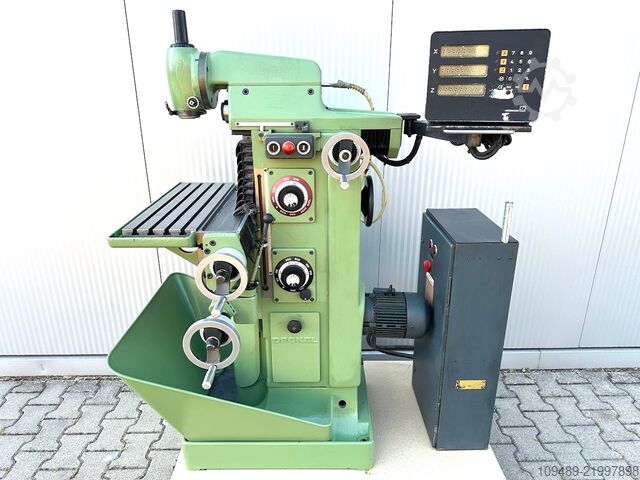

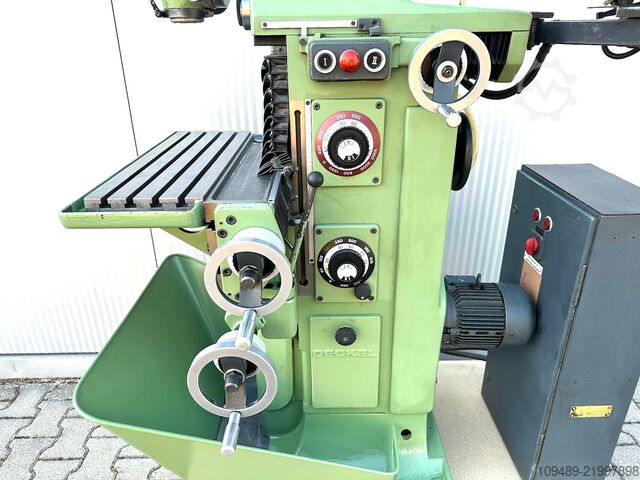

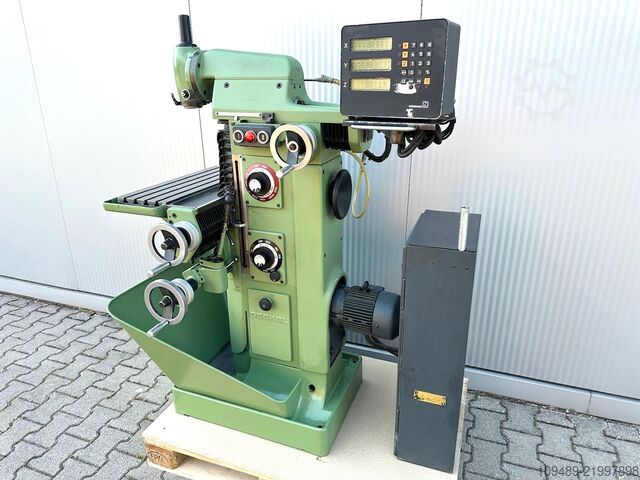

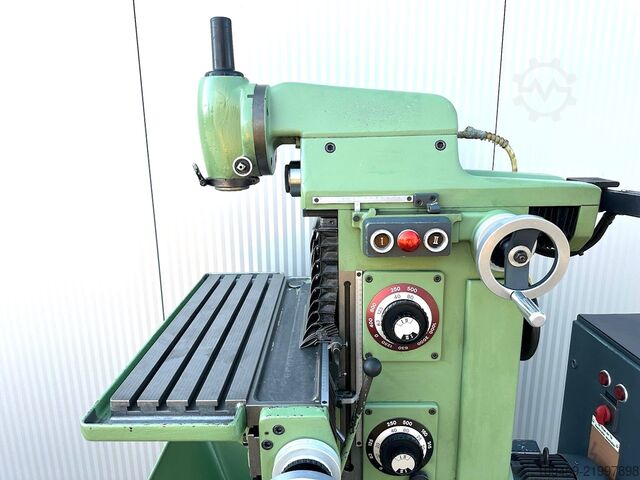

Condition: used, Universal Tool Milling Machine with Digital Readout DECKEL Type FP 1 Universal Milling Machine Machine No.: 2102 - 3322 Year of manufacture: 1986 Travel range X: 300 mm Y: 150 mm Z: 330 mm Table size: 600 x 210 mm Spindle mount: SK 40 - S20x2 Spindle speed: 40-2000 rpm, 16 steps Feed rate: 5 to 500 mm/min Rapid traverse: 1200 mm/min Ijdpfx Agor D T Uyedjap Motor power: 1.6 and 2 kW, pole-changeable Power supply: 380 Volt, 50 Hz - 3-axis active digital readout HEIDENHAIN Type TNC 113 - Infinitely variable feed on X, Y, and Z axes - Spindle speed selectable via 2 motor speeds and 8 gearbox steps - Quill movement on vertical milling head: 60 mm - Vertical milling head swivels and is extendable by 100 mm horizontally - Fixed angle table 600 x 210 mm - Coolant system integrated in machine base - Separate electrical cabinet - Original chip tray for mounting on the machine base - Operating manual, electrical diagram, spare parts list included Required space (L x W x H): 1350 x 1100 x 1700 mm Weight: 830 kg Good condition

Condition: used, Year of construction: 1982, x-travel 300 mm y-travel 160 mm z-travel 340 mm feeds -stepless- 5-500 mm/min rapid traverse 1200 mm/min spindle turning speed range 40 - 2000 U/min tool taper Normkegel 40 table length 600 mm table width 120 mm voltage 380 V Iaodevvnfuopfx Agdop frequency 50 Hz rated current 13 A weight of the machine ca. 0,750 t dimensions of the machine ca. 1,8 x 1,5 x 1,8 m DESCRIPTION Machine incl: active three-axis digital readout HEIDENHAIN documentation various tool holders Machine vice etc.

Condition: ready for operation (used), Year of construction: 1989, functionality: fully functional, feed length X-axis: 300 mm, feed length Y-axis: 160 mm, feed length Z-axis: 340 mm, travel distance X-axis: 300 mm, travel distance Y-axis: 160 mm, travel distance Z-axis: 340 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 40 rpm, Deckel FP1 milling machine with Heidenhain TNC113 digital readout in very good condition. Technical specifications: Year of manufacture: 1989 Machine no.: 2102-5533 * Speed: 40 - 2000 rpm * Infinitely variable feed on 3 axes * Rapid traverse on 3 axes * Spindle brake * Table movement X/Y/Z: 300/160/340 mm * Vertical milling head can be adjusted 100 mm on the spindle block * Vertical quill * Drawbar system SK40/M16 * Weight approx. 800 kg Iajdeytcarepfx Agdjp Accessories and equipment: 3-axis digital readout Heidenhain TNC113 Coolant system Central lubrication Operating manual, spare parts diagram

Condition: used, Universal Tool Milling Machine DECKEL Type FP 1 Machine No. 51265 Year of manufacture: approx. 1967 Travel paths X: 300 mm Y: 150 mm Z: 340 mm Table size 600 x 200 mm Spindle taper SK 40 - S20 x 2 Spindle speed 40–2000 rpm, 16 steps Motor power 1.0 and 1.6 kW, pole-changing Power supply 380 Volt, 50 Hz Iaodpfxsghtvao Agdep - Feed on X and Z axes - Spindle speed via 2 motor speeds and 8 gear steps - Quill movement at vertical milling head 60 mm - Swiveling, rotating, and tilting angle table - Coolant pump in machine base - Separate control cabinet Space requirements L x W x H 1100 x 1100 x 1600 mm Weight 690 kg In good condition

Condition: excellent (used), Year of construction: 2000, functionality: fully functional, Technical details x-travel 300 mm y-travel 160 mm z-travel 290 mm table surface area 600 x 210 mm tool taper SK 40 spindle turning speed range (16) 40 - 2000 U/min feeds -stepless- 5 - 500 mm/min rapid traverse 1,2 m/min spindle motor 1,5 / 1,9 kW total power requirement 9,5 kVA weight of the machine ca. 830 kg dimensions of the machine ca. 2000 x 2200 x 1655 mm Additional information The machine is in very good condition and comes from a training workshop. Equipment: * 3-axis positioning control with active digital display Heidenhain TNC 123 - Manual mode: Manual operation and positioning with manual input - Automatic mode: Single-block programme run, programme storage * Fixed angle table * Movable vertical milling head, swivel range +/- 90 degr., quill stroke 60 mm * Coolant equipment Iaedpeyrnwmjfx Agdop * Central lubrication * Tailstock with counter bearing * Manual

Condition: good (used), Internal article no.: 26031 Universal milling machine Deckel FP1 Infinitely variable feed + Various SK40 tool holders + Collet set (S20x2) + Hydraulic machine vice Röhm 110 The servomotor has been overhauled! Travel: X300 / Y160 / Z340 mm Quill stroke: 60 mm Isdpfeyqx S Ejx Agdoap Connected load: 1.9 kW Number of spindle speeds: 16 Speed range: 40-2000 rpm Tool holder: SK40 Feed: Infinitely variable 5-500 mm/min The machine is fully functional and can be inspected under power, by appointment, in a heated storage area of over 500 m².

Condition: excellent (used), Deckel FP1 Tool Milling Machine with New Digital Readout (3-Axis) Machine No. 55192-08 Travel paths: X 300 mm Y 150 mm Z 340 mm Spindle speed 40-2000 rpm Feed rate 10 to 500 mm/min Fixed angle table 600 x 210 mm, max. load 200 kg Quill vertical travel 60 mm SK40 with DECKEL saw thread S20 x 2 Vertical and horizontal spindle Milling head manually swivels (+/- 90°) Iasdpfx Asyn Iphsgdep Equipment/Accessories: - As-new machine table - New 3-axis digital readout - Machine vice - New spindle nut X-axis - New SK40 inner spindle - Control cabinet retrofitted with new main switch - Coolant system with new hoses - Chip tray - Emergency stop The machine has been technically inspected and is in excellent working condition. Backlash X-axis 0.05 mm Backlash Y-axis 0.2 mm Backlash Z-axis 0.4 mm Net price ex works, loaded from stock

Condition: good (used), functionality: fully functional, Deckel FP 1 aktiv – 3 axes, serial number 2102 – 2433, machine overhauled by Arnold around 2010, travel X/Y/Z 300/160/340 mm, spindle speed up to 2,000 rpm, infinitely variable feed in 3 axes, Heidenhain readout, weight approx. 800 kg, accessories. Isdpfxsyn Efmo Agdoap

Condition: excellent (used), Year of construction: 1981, functionality: fully functional, input voltage: 380 V, year of last overhaul: 2013, We are offering this very well-preserved Deckel FP 1 2101 tool milling machine, year of manufacture 1981. The milling machine was fully overhauled by FPS in 2013. As part of the overhaul, the machine was also technically upgraded to achieve CE conformity. A ND780 position display was also installed. This is a compact and easy-to-operate machine, ideal for workshops or jig and fixture construction. The milling machine was previously used in the medical engineering sector for manufacturing fixtures, and has therefore accumulated only a few operating hours since the overhaul. The machine is being sold excluding any warranty. Control type: FP 1 2101 Serial number: 5685 Year of manufacture: 1981 Circuit diagram: 6004 004102 Iasdpfx Aoym Ulgogdjp Operating voltage: 380 V~ Frequency: 50 Hz Rated current: 13 A~ If you have any questions or need further information, please feel free to send us a message or give us a call.

Condition: used, Year of construction: 1980, x-travel 300 mm y-travel 160 mm z-travel 340 mm tool taper SK40 Speed 40-2000 U/min. control Aktiv HEIDENHAIN table-size 600 x 210 mm total power requirement 2 kW weight of the machine ca. 0,73 t dimensions of the machine ca. TBH 1200x1100x1600 m - Active feed in the X and Z axes - Additional swiveling table 600 x 210 mm - Coolant system - Counter bearing for horizontal milling - Several fixtures and clamping devices/milling cutters - Operating instructions Iaodpew A Apysfx Agdep
