Tool milling machine

DECKEL FP 1

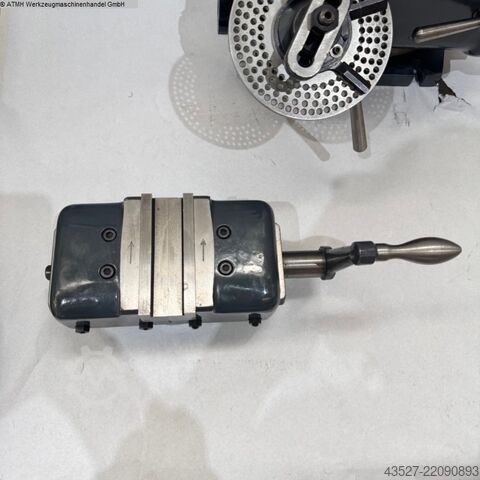

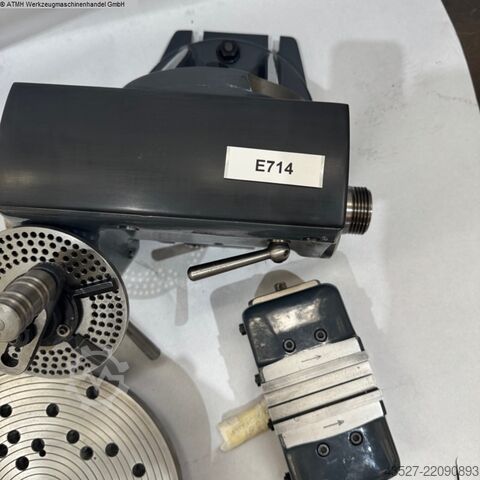

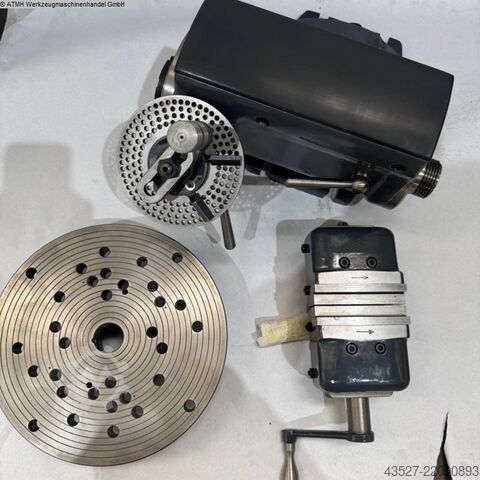

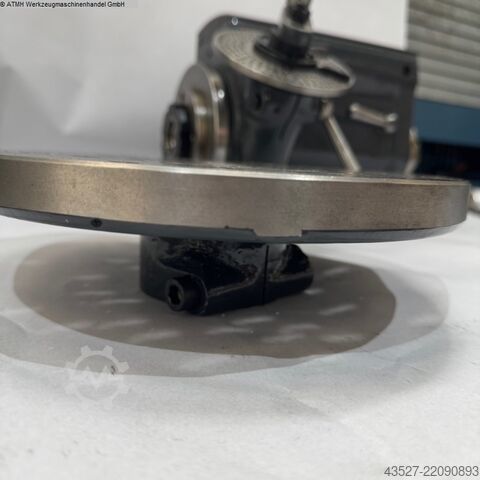

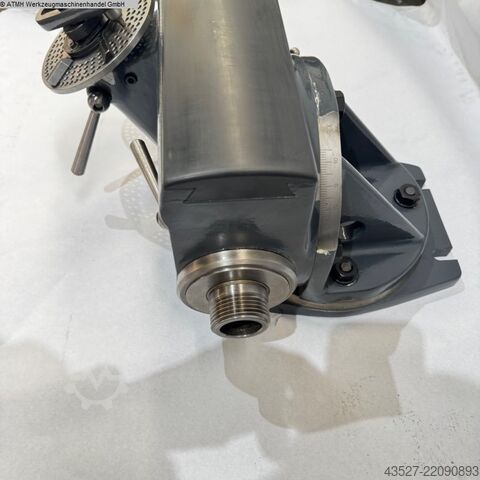

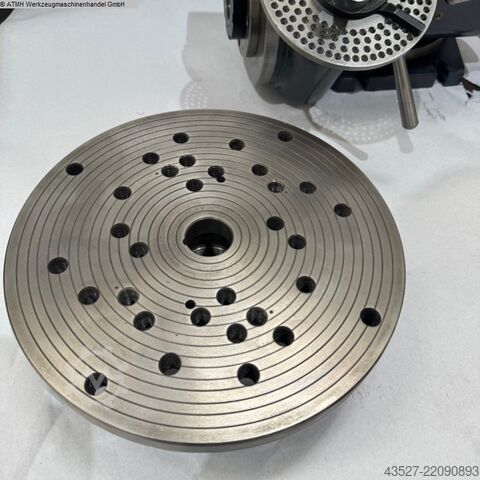

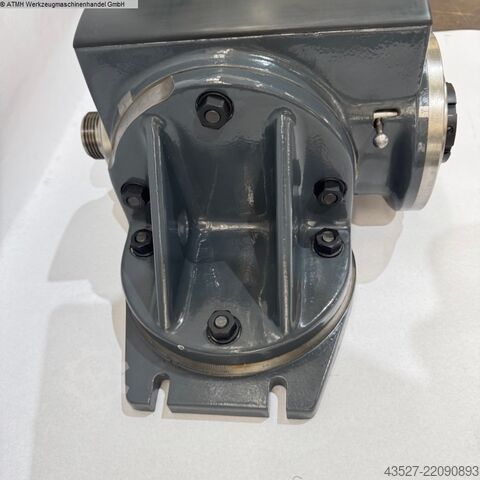

Condition: new, centre height // mm total power requirement / kW Dsdpfxjzcgfqo Aktskn weight of the machine ca. / t required space / m Parts machine for lids FP1 / FP2 Condition: NEW

Condition: used, machine/vehicle number: 28670, x-travel:ca. 400 mm y-travel:150 mm z-travel:340 mm surface area:600 x 210 mm T-slots:4 T - slots - width:12 mm spindle speeds::20 - 2000 U/min turning speed range - vertical:60 - 1200 U/min Djdpfecxxlijx Aktokn turning speed range - horizontal:95 - 1900 U/min speed steps work spindle:12 feed range:10 - 500 mm/min feed steps:10 spindle taper:MK 4 quill stroke vertical:60 mm total power requirement:1,7 kW weight of the machine ca.:0,8 t dimensions of the machine ca.:0,9 x 1,05 x 1,55 m This Deckel FP1 Universal Milling Machine - The Vertical Spindle Swivelable left or right (90*) - With 600 mm Broad Table - Two-step dials for speed and feed control for Quick Change. - Quick Lever for Rapid feed traverse - Vertical quill - 60mm, NK-40 / SK-40

Condition: used, machine/vehicle number: 52326/08, x-travel:250 mm y-travel:150 mm z-travel:305 mm table surface area:600 x 210 mm spindle speeds:40 - 2000 U/min spindle turning speed range:16 spindle taper:SK 40 feed:10 - 500 mm/min feed steps:16 vertical head swivelling:+/- 90 Grad total power requirement:1,0 / 1,4 kW weight of the machine ca.:0,8 t dimensions of the machine ca.:1,0 x 1,25 x 0,85 m This Deckel FP1 Universal Milling Machine - The Vertical Spindle Swivelable left or right (90*) - With 600 mm Broad Table ( Tilt and Turn ) - Two-step dials for speed and feed control for Quick Change. - Quick Lever for Rapid feed traverse Dkodscxxrvopfx Aktjn - Vertical quill - 60mm, NK-40 / SK-40 - Seperate power cabin

Condition: good (used), functionality: fully functional, Internal article number: 26007 Universal milling machine Deckel FP1 Dsdpfxezb Ni As Aktskn Travel distances: X300 / Y160 / Z340 mm Spindle stroke: 60 mm Connection power: 1.9 kW Number of spindle speeds: 16 Speed range: 40-2000 rpm Tool holder: SK40 Feed rate: Continuously variable, 5-500 mm/min Rapid traverse function: Not operational! The machine comes from an educational institution and is in good condition. You are welcome to inspect the machine while it is powered on, in our more than 500 m² heated storage area.

Condition: used, Year of construction: 1987, Deckel FP1 with active 3-axis Heidenhain digital display, 3-axis active, fixed table, SK40 S20x2 spindle mount. Central lubrication, operating manuals. Good, ready-to-use condition. Can be demonstrated under power by arrangement. Dsdpfezbykwex Aktokn

Condition: used, Universal Milling Machine DECKEL FP1 Travel X: 300 mm Travel Y: 150 mm Travel Z: 300 mm Horizontal + vertical spindle Cone SA40 DECKEL Dkodozbq Uyopfx Akton Spindle speed: from 40 to 2000 RPM Table size: 600 x 210 mm Horizontally tiltable head Straight table Spindle motor: 2 speeds Motor: 1,3 kW Feeds: X - Z auto / Y manual Voltage: 380 V Width: 1200 mm Depth with electrical panel: 1200 mm Height:1600 mm Weight: approx 900 kg

Condition: used, Universal Milling Machine DECKEL FP1 Travel X: 300 mm Travel Y: 150 mm Travel Z: 300 mm Horizontal + vertical spindle Cone CM4 DECKEL Spindle speed: from 40 to 2000 RPM Horizontally tiltable head Spindle motor: 2 speeds Motor: 1,5 kW Feeds: X - Z auto / Y manual Supplied without table only with one 4 concentric jaws Ø 140 mm Voltage: 380 V Width: 1200 mm Depth: 1200 mm Total height: 1600 mm Weight: approx 900 KG Dedpfozbq T Asx Aktokn

Condition: excellent (used), functionality: fully functional, Universal milling machine Deckel FP1 with 3-axis active digital display TNC 113 Heidenhain and stepless feed, in very good condition, CE compliant. Technical data: >> Year of manufacture 1990, machine no. 2102-5046 >> Fixed angular table >> Speed: 40 - 2000 RPM >> Stepless feed in 3 axes >> Rapid traverse in 3 axes >> Drive power: 1.5 / 1.9 kW >> Spindle brake Dsdszbb E Ajpfx Aktokn >> Travel distances X/Y/Z: 300/160/340 mm >> Vertical milling head on spindle support, adjustable by 100 mm >> Vertical quill and horizontal quill - SK40 >> Clamping system S20x2 >> Weight approx. 800 kg Accessories and equipment: >> 3-axis digital display Heidenhain TNC113 >> Coolant system >> Machine lamp >> Operating manual, parts list About the machine: Offered is a universal milling machine Deckel FP1 in very good condition and CE compliant. The machine has very little backlash and all spindles move easily. Even at maximum speeds, the milling machine runs very smoothly. In this newer FP1 model, the feed is steplessly adjustable in three axes, and the machine also has rapid traverse in these axes. A major advantage is the active 3-axis digital display. With this Heidenhain control system, you can enter dimensions that the machine will automatically approach. The FP1 was located in a training workshop, where it was only used occasionally. An oil change has been carried out. Mechanically and electrically tested. The digital display from Heidenhain makes the work easier and even more precise. Take the opportunity to inspect and test this machine on site under power.

Condition: good (used), Year of construction: 1989, Technical details x-travel 300 mm y-travel 160 mm z-travel 290 mm table surface area 210 x 600 mm tool taper SK 40 spindle turning speed range (16) 40 - 2000 U/min feeds -stepless- 5 - 500 mm/min rapid traverse 1,2 m/min spindle motor 1,5 / 1,9 kW total power requirement 9,5 kVA weight of the machine ca. 730 kg Dksdpfxeza U Eye Akton dimensions of the machine ca. 2000 x 2200 x 1655 mm Additional information The machine comes from a vocational training center. Equipment: 3-axis active digital readout made by Heidenhain Fixed angle table Coolant equipment

Condition: ready for operation (used), Tool milling machine DECKEL FP 1 incl. dividing head -Travel distances X/Y/Z: 245x150x340mm -Without vertical head / machine was only used for horizontal milling operations Dkjdeza Uf Tspfx Akton -Spindle speed range: 95 - 1900 rpm -Dividing head -Automatic feed in X & Y axis -Various collets / tool holders -Documentation Dimensions: L x W x H: 1.1 x 0.9 x 1.6 meters / Weight: 600 kg Errors and omissions excepted.
