Universal milling machine, universal milling machine

DECKEL FP 1

Condition: excellent (used), Deckel FP1 Tool Milling Machine with New Digital Readout (3-Axis) Machine No. 55192-08 Travel paths: X 300 mm Y 150 mm Z 340 mm Spindle speed 40-2000 rpm Feed rate 10 to 500 mm/min Fixed angle table 600 x 210 mm, max. load 200 kg Quill vertical travel 60 mm SK40 with DECKEL saw thread S20 x 2 Vertical and horizontal spindle Milling head manually swivels (+/- 90°) Equipment/Accessories: - As-new machine table - New 3-axis digital readout - Machine vice - New spindle nut X-axis - New SK40 inner spindle Bsdpfsyn Iphjx Afcjcw - Control cabinet retrofitted with new main switch - Coolant system with new hoses - Chip tray - Emergency stop The machine has been technically inspected and is in excellent working condition. Backlash X-axis 0.05 mm Backlash Y-axis 0.2 mm Backlash Z-axis 0.4 mm Net price ex works, loaded from stock

Condition: good (used), functionality: fully functional, Deckel FP 1 aktiv – 3 axes, serial number 2102 – 2433, machine overhauled by Arnold around 2010, travel X/Y/Z 300/160/340 mm, spindle speed up to 2,000 rpm, infinitely variable feed in 3 axes, Heidenhain readout, weight approx. 800 kg, accessories. Bcsdpfx Afsyn Efmocsw

Condition: excellent (used), Year of construction: 2000, functionality: fully functional, Technical details Bodoymln Sspfx Afcscw x-travel 300 mm y-travel 160 mm z-travel 290 mm table surface area 600 x 210 mm tool taper SK 40 spindle turning speed range (16) 40 - 2000 U/min feeds -stepless- 5 - 500 mm/min rapid traverse 1,2 m/min spindle motor 1,5 / 1,9 kW total power requirement 9,5 kVA weight of the machine ca. 830 kg dimensions of the machine ca. 2000 x 2200 x 1655 mm Additional information The machine is in very good condition and comes from a training workshop. Equipment: * 3-axis positioning control with active digital display Heidenhain TNC 123 - Manual mode: Manual operation and positioning with manual input - Automatic mode: Single-block programme run, programme storage * Fixed angle table * Movable vertical milling head, swivel range +/- 90 degr., quill stroke 60 mm * Coolant equipment * Central lubrication * Tailstock with counter bearing * Manual

Condition: used, Year of construction: 1980, x-travel 300 mm y-travel 160 mm z-travel 340 mm tool taper SK40 Speed 40-2000 U/min. control Aktiv HEIDENHAIN table-size 600 x 210 mm total power requirement 2 kW weight of the machine ca. 0,73 t dimensions of the machine ca. TBH 1200x1100x1600 m - Active feed in the X and Z axes - Additional swiveling table 600 x 210 mm - Coolant system - Counter bearing for horizontal milling Bodpfxow A Apye Afcscw - Several fixtures and clamping devices/milling cutters - Operating instructions

Condition: used, Year of construction: 1980, x-travel 300 mm y-travel 160 mm z-travel 340 mm tool taper SK40 Speed 40-2000 U/min. control Aktiv HEIDENHAIN table-size 600 x 210 mm Bsdpfx Aew A Ap Hofcscw total power requirement 2 kW weight of the machine ca. 0,73 t dimensions of the machine ca. TBH 1200x1100x1600 m - Active feed in the X and Z axes - Additional swiveling table 600 x 210 mm - Coolant system - Counter bearing for horizontal milling - Several fixtures and clamping devices/milling cutters - Operating instructions

Condition: reconditioned (used), Year of construction: 1994, Universal Tool Milling Machine DECKEL FP 1 With 3-axis active digital readout Heidenhain TNC 123 Year of manufacture: 1994 Travel: X 300 mm, Y 160 mm, Z 340 mm Spindle speed range: 40 – 2000 rpm Comes with the following accessories: Fixed angle table, 600 mm x 250 mm clamping surface Movable vertical milling head Bodpfx Aew Agxrefcscw Extendable quill Infinitely variable feed via potentiometer 1 machine vice 1 tailstock with counter bearing 1 long milling arbor Ø 22 mm, Ø 16 mm, Ø 27 mm Various tool holders S 22 x 2 Z axis bellows 1 chip guard Machine lamp Automatic central lubrication pump Coolant system Operating manual THE MACHINE IS IN EXCELLENT CONDITION! THE MACHINE COMES FROM A TRAINING WORKSHOP!

Condition: used, Univ. tool milling machine DECKEL type FP 1 Machine No. 28317 Year of construction approx. 1960 travel X: 245 mm Y: 150 mm Z: 340 mm table size 600 x 210 mm spindle admission horizontal MK 4 - S20 x 2 spindle speed vertical 95-1900 rpm. 12 steps Spindle speed horizontal 60-1200 rpm. 12 steps motor power 0,8 and 1,1 kW pole-changing Mains connection 380 Volt, 50 Hz Bedpfxjiy Ekve Afcocw - Spindle speed via 2 motor speeds and 6 gear steps - feed in X- and Z-axis - Coolant device with mechanical pump in machine base - Pinol shift at vertical milling head 60 mm - vertical milling head +/- 90° tiltable - Metal base made of angle iron with machine feet space requirement L x W x H 1100 x 900 x 1650 mm weight 650 kg good condition

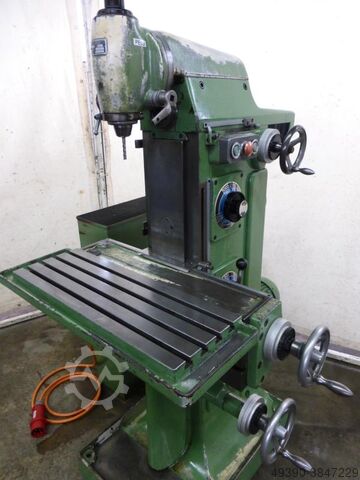

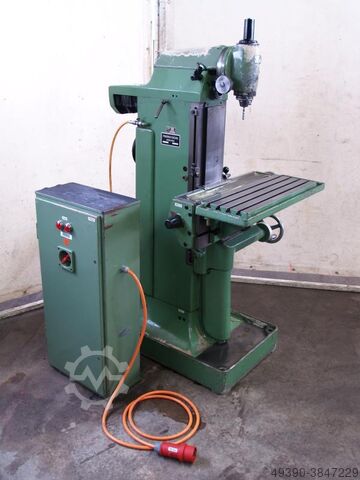

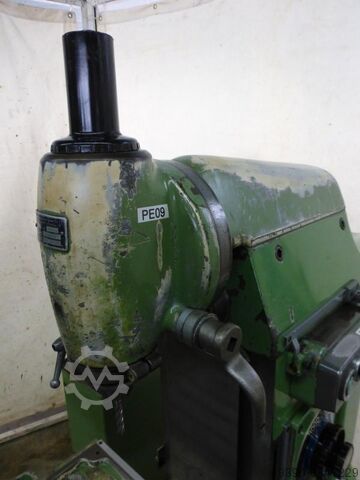

Condition: used, Universal tool milling machine DECKEL type FP 1 Machine No. 33064 Year of manufacture approx. 1960, overhauled in 2012 Travel X: 300 mm Y: 150 mm Z: 330 mm Table size: 600 x 210 mm Spindle taper: MK 4 - S20 x 2 Vertical spindle speed: 95–1900 rpm, 12 steps Horizontal spindle speed: 60–1200 rpm, 12 steps Motor power: 1.1 and 1.4 kW Power supply: 380 Volt, 50 Hz - Feed on X and Y axes - Quill adjustment on the vertical milling head - Fixed angle table - Coolant system with mechanical pump in the machine base Bcodpfx Afsdzp T Eocjw - Separate control cabinet with cable connector Space requirement L x W x H: 1100 x 900 x 1600 mm Weight: approx. 900 kg Good condition Machine was overhauled in 2012

Condition: excellent (used), Tool milling machine DECKEL FP 1, three-axis digital readout TNC 113, from educational institution - CE marking - Travel X / Y / Z 300x160x340 mm - Heidenhain TNC 113 / plug-in control - Spindle speed range 40 - 2000 rpm - Infinitely variable feed in all three axes Bcedpfx Afoyln Irocew - Rapid traverse in all three axes - Vertical head adjustable by 100 mm - Vertical-horizontal milling facility - Tool holder ISO 40 - Drive power 1.5 / 1.9 kW - Fixed angle table - Chip tray - Coolant system - Work light - Documentation Dimensions: LxWxH 1.3x1.2x1.7 m / Weight: 950 kg Errors and omissions excepted

Condition: excellent (used), Deckel FP1 AKTIV (3-Axis Active) Machine no.: 2102-3240 Year of manufacture: approx. 1988 Travel paths: X: 300 mm Y: 150 mm Z: 330 mm Table size: 600 x 210 mm Spindle taper: SK 40 – S20x2 Spindle speed: 40–2,000 rpm Bjdpfx Afjyll A Tocecw Motor power: 1.6 and 2 kW Power supply: 380 V, 50 Hz Equipment/Accessories: - Active digital readout, 3 axes, HEIDENHAIN type TNC 113 - Infinitely variable feed in X, Y, and Z axes - Vertical milling head quill travel: 60 mm - Vertical milling head swivels and extends 100 mm horizontally - Coolant system (coolant tank in machine base) - Documentation - Central lubrication system - Machine vice - Various toolholders/collets/tools Space required (L x W x H): 1,350 x 1,100 x 1,700 mm Weight: 850 kg The machine has been visually reconditioned and technically inspected. Geometry inspection videos can be provided upon request. Backlash Y axis: 0.1 mm Backlash X axis: 0.2 mm Backlash Z axis: 0.15 mm Runout horizontal spindle: 0.001 mm Runout vertical spindle: 0.001 mm Parallelism deviation Y axis: 0.002 mm (measurement path: 150 mm) Parallelism deviation X axis: 0.01 mm (measurement path: 300 mm) Geometry inspection videos can be provided upon request. The following parts have been renewed: - Gears in horizontal head replaced and gear shaft newly mounted - New guide cover for Z axis + various attached parts - Machine refurbished - New LEDs installed - Y-axis chain tensioner overhauled - Reference point programming checked - Function test carried out
