Milling machine

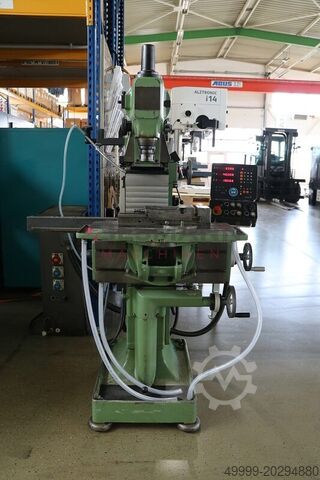

Deckel FP1 Aktiv

Condition: reconditioned (used), Year of construction: 1990, Universal Tool Milling Machine Make: DECKEL Model: FP 1 Aktiv Year of manufacture: 1990 – workshop-inspected Machine no.: 2102-5866 Milling head type: 2171 Milling head no.: 4613 Geometric inspection with test report Accessories: - 3-axis active digital readout HEIDENHAIN TNC 113 with active function in X, Y, and Z axes - Universal table 590 x 250 mm (T-slot: 12 mm) - Vertical milling head SK 40 with pull stud thread S 20 x 2 - Without coolant system; can be retrofitted if required - Centralized lubrication, electric - Operating manual Used as seen, sold without warranty The machine is technically in the condition of its year of manufacture. Gsdpfx Aex S Edlsa Ijil

Condition: excellent (used), functionality: fully functional, travel distance X-axis: 300 mm, travel distance Y-axis: 160 mm, travel distance Z-axis: 340 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 40 rpm, rotational speed (max.): 2,000 rpm, rotational speed (min.): 40 rpm, 2-axis active digital display (Heidenhain) Spindle mount: SK40 (S20x2) Travel paths: X 300 / Y 160 / Z 340mm Speed: 40 - 2000 rpm. (2 gear levels) Feed continuously adjustable The machine is in a well-maintained condition and can be inspected on site, with power on. Includes extensive accessories. Gsdpovnr Hyjfx Aa Ieil - Machine vice - Operating instructions / electrical circuit diagram / spare parts list - Collet set (S20x2) including SK40 collet insert - Other accessories on request.

Condition: reconditioned (used), Deckel FP1 AKTIV (3-Axis Active) Machine No. 2102-5745 Year of manufacture: approx. 1988 Travel distances: X-axis: 300 mm Y-axis: 150 mm Z-axis: 330 mm Table size: 600 x 210 mm Spindle taper: SK 40 - S20x2 Spindle speed: 40–2000 rpm Motor power: 1.6 and 2 kW Power supply: 380 Volt, 50 Hz Equipment: - HEIDENHAIN 3-axis active digital readout, type TNC 113 - Infinitely variable feed on X, Y, and Z axes - Quill movement on vertical milling head: 60 mm - Vertical milling head swivels and extends horizontally by 100 mm - Coolant system (coolant tank in machine base) - Documentation - Centralized lubrication Space requirements (L x W x H): 1350 x 1100 x 1700 mm Weight: 850 kg The machine has been visually refurbished and technically inspected. Geometry measurement videos can be provided upon request. Backlash Y-axis: 0.15 mm Backlash X-axis: 0.3 mm Godpoxpwfgjfx Aa Ijil Backlash Z-axis: 0.2 mm Runout horizontal spindle: 0.002 mm Runout vertical spindle: 0.002 mm Parallelism deviation Y-axis: 0.002 mm (measuring length 150 mm) Parallelism deviation X-axis: 0.002 mm (measuring length 300 mm) The following parts have been renewed: - Centralized lubrication checked - Heidenhain digital readout overhauled - New wiper set installed - LEDs in the Active display replaced - Oil changed - Vertical milling head fitted with new bearings - Oil sight glass replaced Net price, ex stock, free loaded

Condition: reconditioned (used), functionality: fully functional, Dear Sir or Madam, We hereby offer a Deckel FP1 milling machine, 3-axis active, retrofitted with safety features. These later-generation machines are equipped with, among other things, central lubrication, an electric coolant pump, and a brake motor. Additionally, thanks to Harting connectors, the control cabinet can be quickly and easily disconnected from the machine. The safety components are also connected to the control cabinet via these connectors, ensuring ease of handling is maintained. We provide a 12-month warranty on the retrofitted safety features, which we offer for all machine types! *The electronic spindle guard can be adjusted on multiple axes and is designed to prevent access to the working spindle as well as hazards caused by flying chips, coolant, etc.* *The electronic spindle safety cover is intended to prevent contact with the rotating stub shaft and tool clamping mechanism.* Delivery time: On request Year of manufacture: 1989-1992 Machine number: 2102-xxxx Gijdpfx Aox Rvlqea Isl Table: Fixed angle table Travel paths: X300mm/Y160mm/Z340mm Quill stroke: 60mm Connected load: 1.9 kW Number of spindle speeds: 16 Speed range: 40-2000 rpm Tool holder: SK40 Feed: Infinitely variable 5-500 mm/min Rapid traverse: 1200 mm/min Equipment and accessories: including 3-axis digital display with Heidenhain Active Control, coolant system, central lubrication, machine mounts, technical documentation, electronic spindle guard, electronic spindle safety cover Our service promise to you: - We are a certified master craftsman business specializing in mechanical engineering - All machines are thoroughly checked - All lubricants and, if necessary, worn parts are replaced in advance - Upon request, we will fully or partially overhaul the selected machine - Upon request, you can order additional accessories such as tools directly - Upon request, we can install further accessories such as safety devices, etc. - We are happy to take care of shipping and/or installation

Condition: excellent (used), functionality: fully functional, travel distance X-axis: 300 mm, travel distance Y-axis: 160 mm, travel distance Z-axis: 360 mm, For sale is a Deckel FP1 with 3-axis active control system The machine is fully functional and will be checked, cleaned and put into stock in our incoming goods department. Technical data: Digital display 3-axis active digital readout HEIDENHAIN X-axis travel 300 mm Y-axis travel 160 mm Z-axis travel 340 mm Tool holder: SK 40 Milling head type. Vertical milling head Speed range: 40 - 2000 mm/rev Gjdpfx Ajr H E Uisa Ijil Number of steps: 16 Feed X-axis 290 mm Y-axis feed 150 mm Feed Z-axis 330 mm Machine weight 650 kg Machine dimensions 1200 x 1100 x 1800 mm Accessories - Active function in X-, Y- and Z-axis - Coolant device The offer refers only to the machine without tools, this can be negotiated additionally On request, loading and transport (Europe-wide) can be organized for an additional charge. Prices plus VAT Viewing possible by appointment. Contact us, our team will be happy to help you. Trade-in or exchange possible! Machines purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours? For further information or contact options, please visit our website

Condition: used, Year of construction: 1982, x-travel 300 mm y-travel 160 mm z-travel 340 mm feeds -stepless- 5-500 mm/min rapid traverse 1200 mm/min spindle turning speed range 40 - 2000 U/min tool taper Normkegel 40 table length 600 mm Godpfx Aaevvnfus Ioil table width 120 mm voltage 380 V frequency 50 Hz rated current 13 A weight of the machine ca. 0,750 t dimensions of the machine ca. 1,8 x 1,5 x 1,8 m DESCRIPTION Machine incl: active three-axis digital readout HEIDENHAIN documentation various tool holders Machine vice etc.

Condition: reconditioned (used), Year of construction: 1990, Universal Tool Milling Machine Make: DECKEL Model: FP 1 Aktiv Year of manufacture: 1990 – workshop-inspected Machine no.: 2102-5866 Milling head type: 2171 Milling head no.: 4613 Geometric inspection with test report Accessories: - 3-axis active digital readout HEIDENHAIN TNC 113 with active function in X, Y, and Z axes - Universal table 590 x 250 mm (T-slot: 12 mm) - Vertical milling head SK 40 with pull stud thread S 20 x 2 - Without coolant system; can be retrofitted if required - Centralized lubrication, electric - Operating manual Used as seen, sold without warranty The machine is technically in the condition Giedpex It Rxofx Aa Isl of its year of manufacture.

Condition: excellent (used), functionality: fully functional, travel distance X-axis: 300 mm, travel distance Y-axis: 160 mm, travel distance Z-axis: 340 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 40 rpm, rotational speed (max.): 2,000 rpm, rotational speed (min.): 40 rpm, 3-axis active digital display (Heidenhain TNC113) Spindle mount: SK40 (S20x2) Travel paths: X 300 / Y 160 / Z 340mm Speed: 40 - 2000 rpm. (2 gear levels) Feed continuously adjustable The machine is in a well-maintained condition and can be inspected on site, with power on. Includes extensive accessories. - Machine vice - Operating instructions / electrical circuit diagram / spare parts list - Collet set (S20x2) including SK40 collet insert Gsdpfevnrz Rex Aa Ijil - Other accessories on request.

Condition: reconditioned (used), Year of construction: 1989, Dear Sir or Madam, For sale is a partially overhauled Deckel FP1 milling machine equipped with a 3-axis Heidenhain TNC113 active control, notable for its ease of operation. This modern version, built in 1989, features central lubrication, an electric coolant pump, and a machine lamp, among other benefits. The machine has undergone extensive partial refurbishment in our workshop and is therefore in excellent condition. You are welcome to inspect the machine on-site at any time. Delivery time: on request Machine no.: 2102-xxxx Table: Rigid angled table or rotary-tilt-swivel table Travel (X/Y/Z): X 300 mm / Y 160 mm / Z 340 mm Quill travel: 60 mm Connected load: 1.9 kW Number of spindle speeds: 16 Speed range: 40–2000 rpm Tool taper: SK40 Feed: Infinitely variable 5–500 mm/min Rapid traverse: 1200 mm/min Equipment and accessories: 3-axis Heidenhain TNC113 digital readout with active control, infinitely variable feed regulation on all 3 axes, coolant unit, central lubrication, technical documentation, leveling feet, safety equipment (optional) Our service promise to you: - We are a certified master workshop specializing in mechanical engineering - All machines undergo thorough inspection - All lubricants and any worn parts are replaced in advance - Upon request, we can fully or partially overhaul your selected machine - If required, you can order additional accessories such as tools, etc., directly - We can also install further equipment such as safety devices upon request - We are happy to handle shipping and/or installation Gjdpfx Aaepy Elds Ijil

Condition: reconditioned (used), Year of construction: 1987, Universal tool milling machine Make: DECKEL Model: FP 1 Active Year of manufacture: 1987 - overhauled, repainted, RAL7035 light gray / RAL7012 basalt gray Mach. no.: 2102-3429 with guarantee geometric acceptance with test report Accessories: - 3-axis active digital display HEIDENHAIN TNC 113 with active function in X, Y and Z axes - Fixed table 600 x 210 (T-slot: 12 mm) - Vertical milling head SK 40 with tightening thread S 20 x 2 - Coolant system - Central lubrication, electric - Operating instructions Giodpfx Aaehtrd Ij Iel - Used as seen -
