Milling machine

DECKEL FP3NC

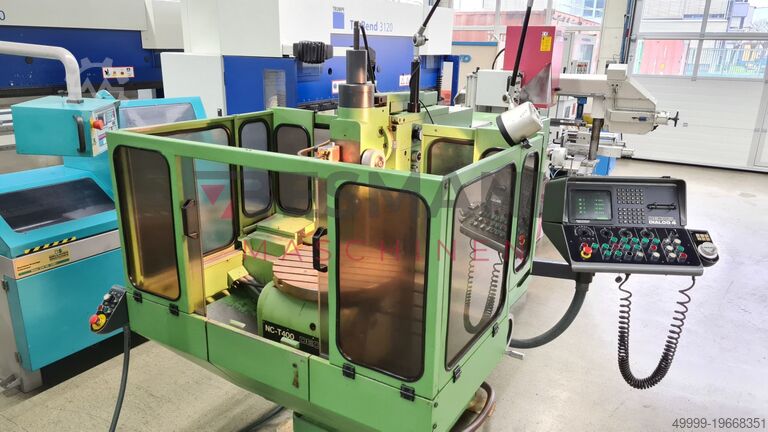

Condition: good (used), Year of construction: 1985, functionality: fully functional, machine/vehicle number: 2803-2693, travel distance X-axis: 400 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, spindle speed (max.): 6,300 rpm, spindle speed (min.): 32 rpm, quill stroke: 80 mm, quill travel distance: 80 mm, type of input current: three-phase, Equipment: documentation/manual, For sale is a precise and robust Friedrich Deckel FP3NC tool milling machine, year of manufacture 1985, equipped with a Dialog 4 CNC control system. The machine is German-made, renowned for its quality, and is suitable for tool and mould making as well as precise single-part and small-batch production. Technical Data (extract) Model: FP3NC Control: Deckel Dialog 4 Year: 1985 Serial Number: 12767 Main spindle power: 2.0 / 3.0 kW, pole-changeable three-phase brake motor Spindle speeds: 31.5 – 6300 rpm (2 ranges, manually switchable) Tool holder: SK 40 Quill Stroke (manual): 80 / 80 mm (horizontal/vertical) Travel paths: X-axis: 400 mm Njdpfx Ajxlghpohzjdd Y-axis: 400 mm Z-axis: 400 mm Feed rate: 2 – 3600 mm/min Rapid traverse: 4000 mm/min Clamping slots in table: 4 slots, 14H7, 63 mm spacing Total weight: approx. 1800 kg Electrical connection: 380 V, 50/60 Hz, connected load 14.5 kVA Rated current: 22 A Control voltage: 24 V Equipment & Control - 4-axis contouring operation with dialog-guided input - 3D linear and circular interpolation, helical interpolation, polar coordinates - Extensive drilling and milling cycles, graphical cycle entry support - “Contour pocket” milling cycle for pocket machining (including irregular shapes and islands) - Subroutine functions, program memory up to 512 kByte - Tool offsets for up to 100 tools - Interfaces for cassette recorder, punch tape reader, floppy disk or Winchester drive (DNC-capable) Condition & Features - Machine is fully functional - High-precision, stable design – ideal for workshops, training or production - Operating manual and technical documentation available - Inspection by appointment possible

Year of construction: 1990, condition: ready for operation (used), Control: Deckel Dialog 11, with vice, an inspection is possible. Ndsdpsqi D S Uofx Ahzsd

Condition: used, Year of construction: 1984, x-travel:500 mm y-travel:400 mm z-travel:400 mm table-size:700 x 470 mm spindle turning speed range:40 - 4000 U/min feed range:02 - 3600 mm/min rapid traverse speed:4,0 m/min quill stroke:90 mm spindle taper:SK 40 control:Deckel Dialog 3 power capacity - milling spindle:3 kW total power requirement:22 kW weight of the machine ca.:1,8 t Deckel FP3 NC Universal Milling Machine - CNC - Spilndle Head can be swiveled 90 ° (left or Right) - Work Table: 700 x 470 mm - Hydralic Tool clamping system SK40 with Pull studs DIN 2080 or DIN 69872 Ndsdpfx Aocxxypohzod - Portable Handheld operating unit for easy control of machine - 3.0 kw Motor for Main Spindle - Deckel Dialog 3 CNC control Systems - Seperate Power Cabin, Central Lubrication and Coolant System and Chip tray with Splash cabin

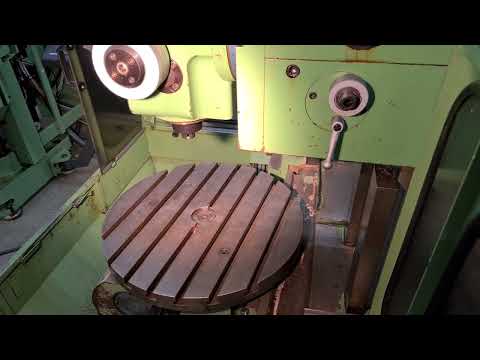

Condition: defective spare-parts repository (used), Year of construction: 1994, machine/vehicle number: 2803-2194, Universal milling machine cover FP3 with 3 - with cover analog 4 control (defective) Technical data: - Year of construction: 1994 - Table diameter: 500mm - Speed: 40 - 2000 rpm - Drive power: 3 KW - Travel X/Y/Z - Weight approx. 1500 kg Accessories and equipment: - Display cover Analag4 Grundig dialog control 4 (defective, error not known) About the machine : We are offering a Deckel FP3 NC universal milling machine in good external condition. The spindles can be moved easily. The round_groove clamping table is in good condition. Ndedpfx Ahou U I Iujzjd Mechanically ready for operation, but the control is defective. Exact fault unfortunately not known. Sold on behalf of a customer, without any warranty as a spare parts donor.

Condition: ready for operation (used), Two Deckel Maho milling machines are available. 1) Maho MH 800 E, travel X/Y/Z: 800mm/450mm/500mm, speed: 3150rpm, tool holder: SK40, quill stroke: 80mm, table dimensions X/Y: 900mm/600mm, max. table load: 450kg, feed X/Y/Z: 150mm/min, rapid traverse X/Y/Z: 4500mm/2500mm/4500mm/min. Machine dimensions X/Y/Z: approx. 2900mm/2400mm/2300mm, weight: approx. 4400kg. 2) Cover Maho FP3NC, travel X/Y/Z: 500mm/300mm/400mm, table dimensions X/Y: 800mm/420mm, tool holder: SK40, speed: 2000rpm, feed: 50mm/min, rapid traverse: 1500mm/min, weight: approx. 1500kg. On-site inspection is possible. Nedpfxovb Ha Ue Ahzedd
