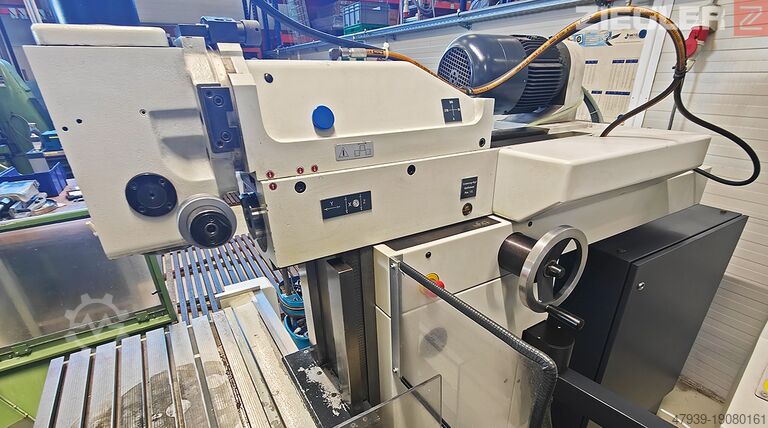

CNC tool milling machine

DECKEL FP4MA 2204

- Refurbished in 2022
- Heidenhain TNC320 CNC control
- CNC or manual control possible
- Movable vertical milling head with extendable spindle
- Counter bearing for long milling arbors
- Hydraulic tool clamping
- Automatic gearshift
- Automatic clamping in the X, Y, and Z axes
- Automatic central lubrication
- Coolant system
- Direct position measurement
- Collision protection coupling in the Y and Z axes
- Built in 1988
- Including tool holders, drilling/milling tools, and tool carriage

Specifications

Working area:
- X-axis (longitudinal): 485 mm
- Y-axis (transverse): 385 mm
- Z-axis (vertical): 380 mm
- Quill stroke (vertical): 80 mm
- Vertical milling head manually movable on spindle block: 150 mm
Main drive:
- Pole-changing Three-phase brake motor: Manual gearbox with forward/reverse rotation
- Power: 3.7 / 4.4 kW
- Work spindle speeds: 63 - 3150 rpm (18 steps)
- Step increment: 1.25
- Tool holder: SK40 (M16)
- Tool clamping: Disc spring package
- Tool release: Hydraulic
Feed drive:
- X-axis: 1 DC motor
- Y & Z-axis: 1 DC motor
- Ball screws: all axes
- Feed rate: 2 - 3000 mm/min (programmable)
Csdpewhk Ubofx Agmorh
- Rapid traverse X/Y/Z-axis: 3000 mm/min
Table slide:
- Number of T-slots: 4
- T-slot width: 14H7 mm
- T-slot spacing: 63 mm
- Permissible load: approx. 600 kg
Installation:
- Space requirement (including safety area): approx. 2300 x 2500 mm
- Machine weight including vertical milling head and angle table: approx. 1830 kg
- Operating voltage: 400 V
- Total connected load: 12.5 kVA
- Floor load: 3000 kg/m²
