Universal Milling Machine

DECKEL FP4NC

Condition: excellent (used), Year of construction: 1985, x-travel 600 mm y-travel 500 mm z-travel 500 mm spindle taper 40 SK turning speed range 18 - 6300 U/min paper band filter 515 mm table load 350 kg air temperature of the exhaust valve 0,001 mm rated capacity boring motor 3600 x 4900 mm hollow in the drive pipe 8 kW 3300 kg 475 kg total power requirement 380 50 23 kW weight of the machine ca. t Iodpfount H Rex Afpebc dimensions of the machine ca. m Machine from training workshop! ° Engine brake ° Safety handwheels ° 2 x emergency stop switches Accesories: * Rigid angle table * Coolant facility

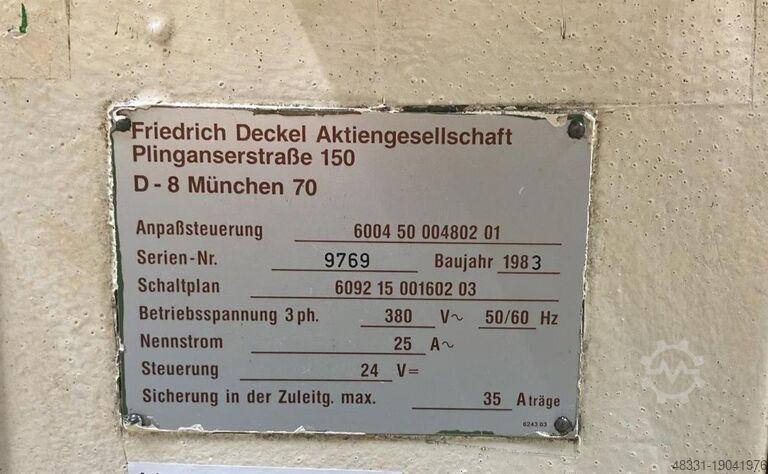

Year of construction: 1983, condition: ready for operation (used), machine/vehicle number: 2810-3076, table mounting size: movement x: 560 mm movement y: 450 mm movement z: 450 mm tailstock stroke: 80 mm spindle taper:SK 40 spindle turning speed range: 40 - 4000 rpm carriages continuously adjustable: 2 - 2000 mm/min Iedpfx Afofnry Hopsbc rapid move: 4 m/min space needed: 2000 x 2150 x 2030 mm weight: 2720 kg

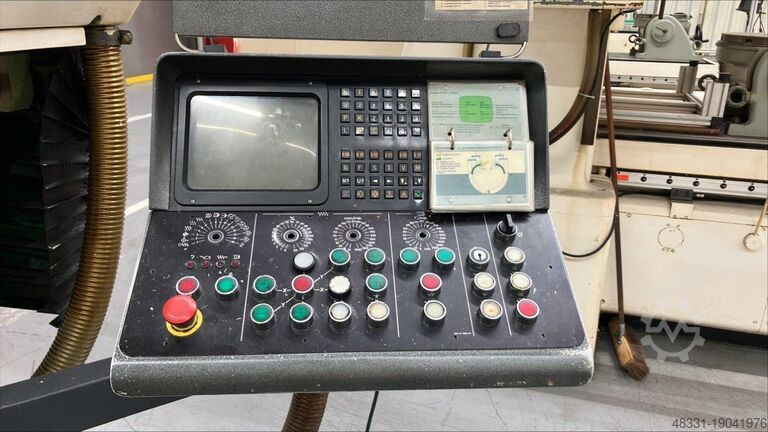

Condition: ready for operation (used), Controls: Deckel DIALOG 11E, tools are available, number of operational hours unknown, was maintained regularly, an inspection is possible. Ibedpfspu A Eksx Afpoc

Condition: repair required (used), feed length X-axis: 500 mm, feed length Y-axis: 400 mm, feed length Z-axis: 400 mm, travel distance X-axis: 500 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, feed rate X-axis: 2,000 m/min, feed rate Y-axis: 2,000 m/min, feed rate Z-axis: 2,000 m/min, quill stroke: 80 mm, quill diameter: 90 mm, spindle speed (max.): 3,150 rpm, spindle speed (min.): 25 rpm, rapid traverse X-axis: 3,000 m/min, rapid traverse Y-axis: 3,000 m/min, rapid traverse Z-axis: 3,000 m/min, table length: 700 mm, table width: 430 mm, total height: 2,100 mm, total length: 2,300 mm, total width: 2,000 mm, overall weight: 2,500 kg, table load: 300 kg, input voltage: 400 V, space requirement width: 3,000 mm, space requirement length: 3,500 mm, space requirement height: 2,100 mm, control cabinet length: 800 mm, control cabinet width: 700 mm, Equipment: documentation/manual, DECKEL - FP4 NC Milling Machine With manual 3D table (rotatable) Iedpfx Aswh Itusfpobc Note: Error message when moving the Z-axis The machine is already on the pallet and ready for pickup or shipping. Various fixtures can be purchased upon request. We look forward to receiving your price quote.

Condition: used, Year of construction: 1990, functionality: fully functional, machine/vehicle number: 2810-4023, travel distance X-axis: 500 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 450 mm, spindle speed (max.): 4,000 rpm, spindle speed (min.): 40 rpm, table length: 430 mm, table width: 710 mm, total height: 2,400 mm, total length: 2,300 mm, total width: 2,300 mm, overall weight: 2,000 kg, A well-maintained and fully functional Deckel FP4NC tool milling machine with Contour 3 control is for sale. Included is a dividing unit (4th and 5th axis) Deckel FP 2212 (No. 800-0237), which significantly expands the application range of the machine. The machine was only used for plastics. The machine is ready for immediate use and is ideal for precise single and series production or educational institutions. It was last used in November 2024. The machine can be inspected at any time by arrangement. Pick-up on site: Grossacherstrasse 41, 8634 Hombrechtikon, from ramp Technical data: Machine: Deckel FP4NC Machine/vehicle number: 2810 - 4023 Condition: used, very good condition Accessories: Dividing unit Deckel FP 2212 + extensive additional accessories Travel paths: x-axis: 500 mm y-axis: 400 mm z-axis: 450 (390) mm Work table: Table area: 710 x 430 mm Spindle: Speed range: 40 – 4000 rpm (stepless) Spindle drive: 4.0 kW Tool holder: SK40 Feeds: Ibedpfx Aewrya Iofpoc Working feed: 10 – 2000 mm/min Rapid traverse: 4.0 m/min Performance and dimensions: Total drive power: 9 kW Machine weight: approx. 2 t Footprint: approx. 2.4 x 2.3 x 2.3 m (LxWxH) Equipment: CNC control Contour 3 Dividing unit available for 4th and 5th axis Vertical head swivels +/- 130° Rigid angle table Automatic central lubrication Remote control panel with removable handwheel Separate control cabinet with main safety switch Emergency stop on the control panel Compact design Special features: Deckel dividing unit FP 2212 included in the scope of delivery Extensive accessories for versatile machining

Condition: ready for operation (used), CNC Milling Machine, Deckel FP4NC, Used machine Manufacturer: Deckel Model: FP4NC Serial number: 31549 Travel range (per axis): X-axis: 560 mm Y-axis: 500 mm Ibedpfjwrdu Aox Afpoc Z-axis: 450 mm Table specifications: Length: 900 mm Width: 530 mm Max load capacity: 450 kg Feed rates: X-axis: 3600 mm/min Y-axis: 3600 mm/min Z-axis: 3600 mm/min Spindle specifications: Spindle taper: ISO 40 / BT / MK Spindle power: 7.5 kW Max speed: 5000 RPM

Condition: used, machine/vehicle number: 2810 - 4271, x-travel:500 mm y-travel:400 mm z-travel:450 (390) mm surface of table:710 x 430 mm spindle speed max.:40 - 4000 U/min feed range:10-2000 mm/min rapid traverse:4,0 m/min spindle drive motor:4,0 kW tool taper:SK40 control:CNC Contour 3 power capacity:9 kW weight of the machine ca.:2 t Isdpfsh Ra Izex Afpobc dimensions of the machine ca.:2,4 x 2,3 x 2,3 m Deckel FP4 NC Machine for Medium - Heavy range use. - Spindle Head can be swiveled 90° (left or right) - Universal Work Table ( 710 x 430 mm ) - Hydralic Tool clamping system SK40 with Pull studs DIN 2080 or DIN 69872. - Deckel Contour 3 CNC control Systems. - Portable Electronic handwheel and Handheld operating unit for easy Setting and control. - Powerful 2.2 kw Siemens Axis Servo motors and 4.0 kw Motor for Main Spindle. The machine has Central Lubricant system, Seperate Power cabinet, Enclosed Chip tray and Splash cabin

Condition: good (used), Dimensions: width 2000mm, depth 2000mm, height 1600mm Table: 620mm x 390mm Machine weight: approx. 1500kg Control: Dialog 4 Equipment: backlash-free ball screws, hydraulic SK40 tool holder, electric handwheel Iedpfx Afou A Iuyspjbc
