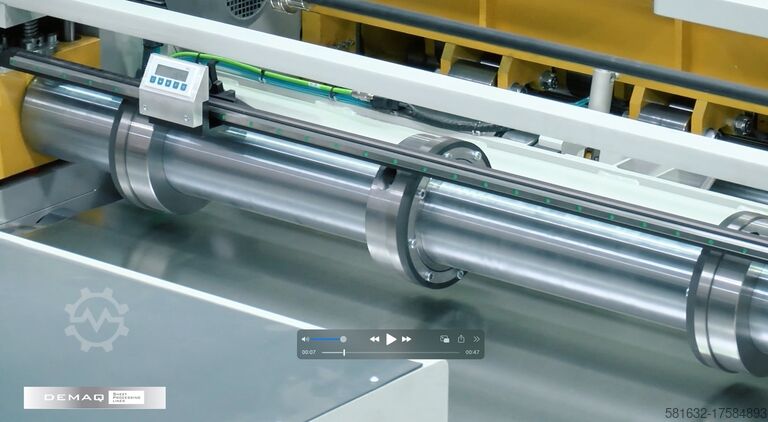

Cross-sectional line

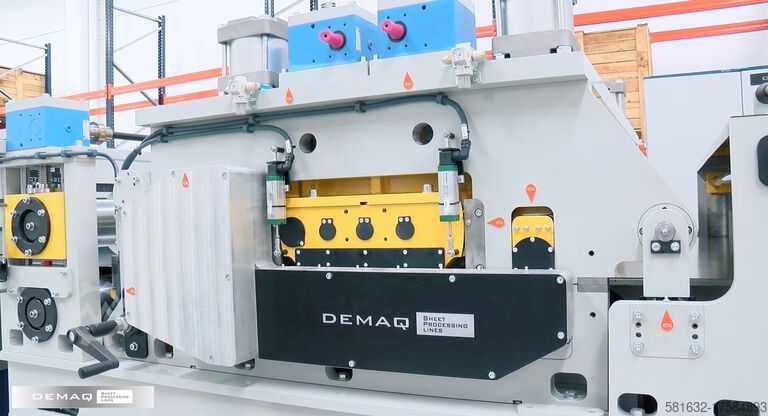

Demaq Evo 4.0

Condition: good (used), Double Sink Stainless steel Dimensions - 1800mm Long x 600mm Deep x 880mm High Dkedpfx Ahjvz Dxzj Seg With bottom storage shelf

Condition: used, SLITTING LINE GEORG 1500x1.5x25 Main technical data Coil thickness: 0.24 – 1.5 mm Uncoiler coil weight: 25 Tn Coil width: 230 - 1500 mm Coil outer diameter: Max. 1850 mm Working speed: 200 m/min Slitting tolerance: +/- 0.125 mm Line direction: Right to left Recoiler coil weight: Max. 16 Tn 2 Slitting heads PLC: Siemens S7 1200 Cutting capacity: number of cuts with 350 MPa 24 cuts for thickness 0.25 mm 28 cuts for thickness 0.50 mm 21 cuts for thickness 0.75 mm 18 cuts for thickness 1.00 mm 15 cuts for thickness 1.25 mm 12 cuts for thickness 1.50 mm Scope of supply 1. Coil Carriage 2. Uncoiler 3. Guiding system with 2 measured edges 4. 203.2 diam. Pinch roll before shear 5. Double interlock table 6. Slitting shear:Shaft diameter: 160 mm 7. 1 off line quick change slitting head available 8. Scrap press and conveyor 9. Intermediate coil table 10. Loop Pit and covering tables 11. Strips Braking Unit 12. Motorised recoiler with hold down separator arm 13. Unloading Coil Car 14. 4 arms turnstile 15. Electrical cabinets & Control panels Dkodpfexl R A Rsx Ah Sjg 16. Existing tooling 17. Existing documentation Coil thickness: 0.24 – 1.5 mm Uncoiler coil weight: 25 Tn Coil width: 230 - 1500 mm Coil outer diameter: Max. 1800 mm Working speed: 200 m/min Slitting tolerance: +/- 0.125 mm Line direction: Right to left Recoiler coil weight: Max. 16 Tn Slitting heads: 2 PLC: Siemens S7 1200 For thickness 0.25 mm: 24 cuts with 350 MPa For thickness 0.50 mm: 28 cuts with 350 MPa For thickness 0.75 mm: 21 cuts with 350 MPa For thickness 1.00 mm: 18 cuts with 350 MPa For thickness 1.25 mm: 15 cuts with 350 MPa For thickness 1.50 mm: 12 cuts with 350 MPa
